Toro 30857N - Premaintenance Procedures; Removing the Hood; Lubrication; Greasing the Bearings and Bushings

Premaintenance
Procedures
RemovingtheHood
1.Releasehoodlatches(Figure20)andpivotopenthe
hood.

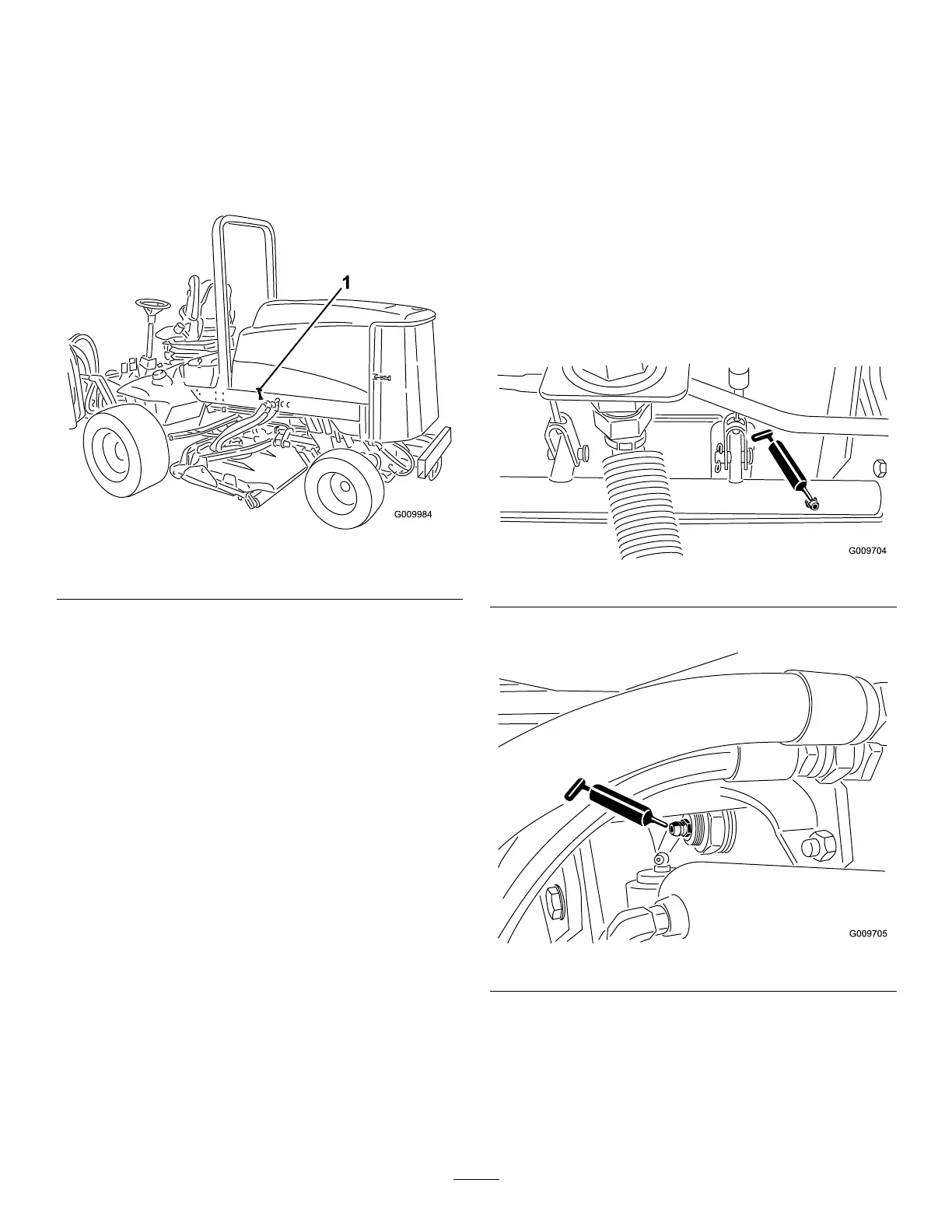

Figure20
1.Hoodlatch(2)
2.Removethecotterpinssecuringtherearhoodbrackets
totheframepinsandliftoffthehood.
Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Every50hours
Themachinehasgreasettingsthatmustbelubricated
regularlywith#2general-purposelithium-basedgrease.If
themachineisoperatedundernormalconditions,lubricateall
bearingsandbushingsafterevery50hoursofoperationor
immediatelyaftereverywashing.
Thegreasettinglocationsandquantitiesareasfollows:
•Brake-shaftpivotbearings(5)(Figure21)
Figure21
•Rearaxlepivotbushings(2)(Figure22)
Figure22
29
