•Steering-cylinderballjoints(2)(Figure23)

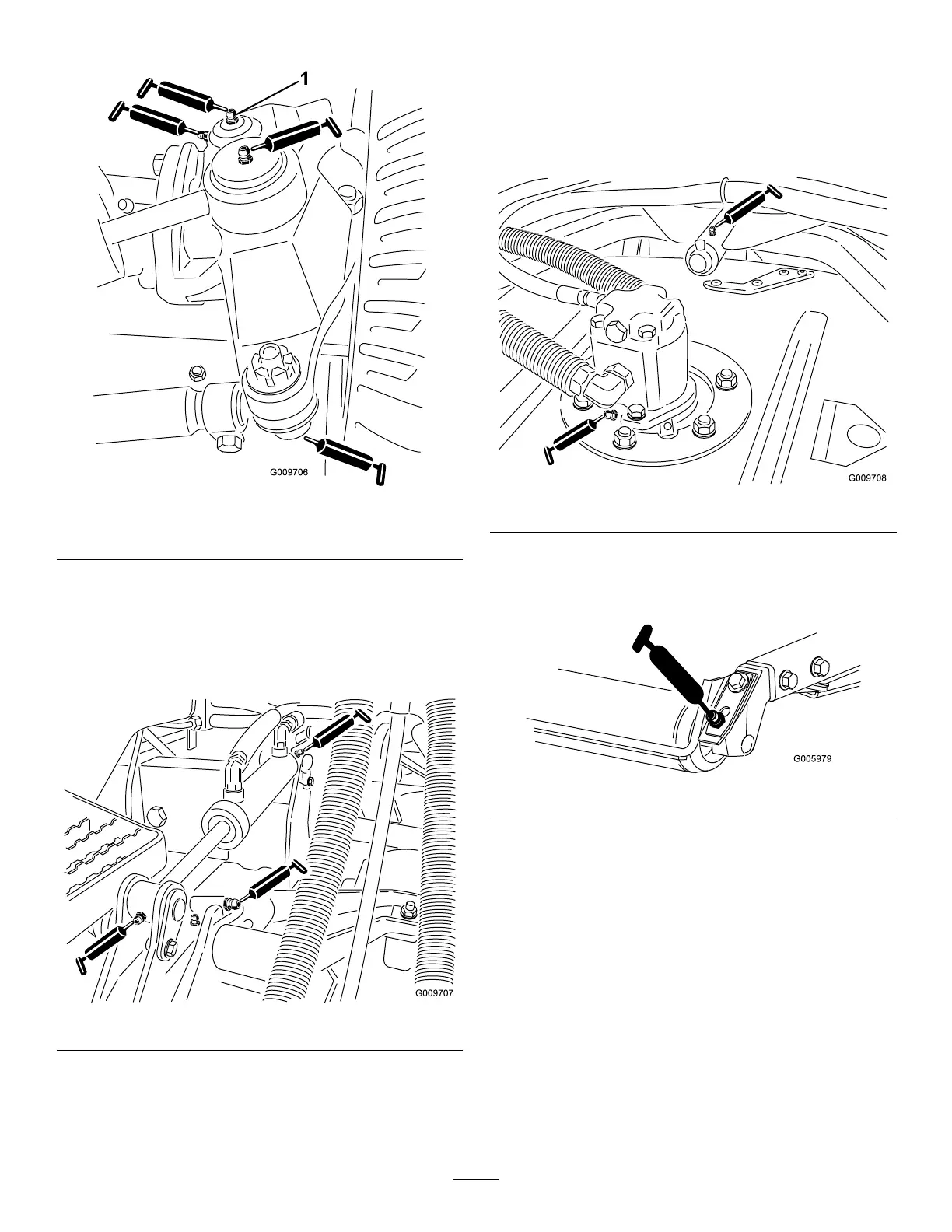

Figure23
1.Topttingonkingpin
•Tie-rodballjoints(2)(Figure23)
•Kingpinbushings(2)(Figure23).Thetopttingon
thekingpinshouldonlybelubricatedannually
(2pumps).
•Lift-armbushings(1perdeck)(Figure24)
Figure24
•Lift-cylinderbushings(2perdeck)(Figure24)
•Cutting-unitspindle-shaftbearings(2percuttingunit)
(Figure25)
Note:Eitherttingcanbeused,whicheverismore
accessible.Pumpgreaseintothettinguntilasmall
amountappearsatbottomofthespindlehousing(under
thedeck).
Figure25
•Cutting-unitcarrier-armbushings(1percuttingunit)
(Figure25)
•Rearrollerbearings(2percuttingunit)(Figure26)
Figure26
Important:Makesurethatthegreasegroovein
eachrollermountalignswiththegreaseholeineach
endoftherollershaft.Tohelpalignthegrooveand
thehole,thereisalsoanalignmentmarkon1endof
therollershaft.
