AdjustingtheHandleHeight
Thehandlepositioncanbeadjustedtomatchtheoperator's
heightpreference.
1.Removethehairpincotterpinsandclevispinsfrom
thedriveleversandneutrallocks(Figure22).

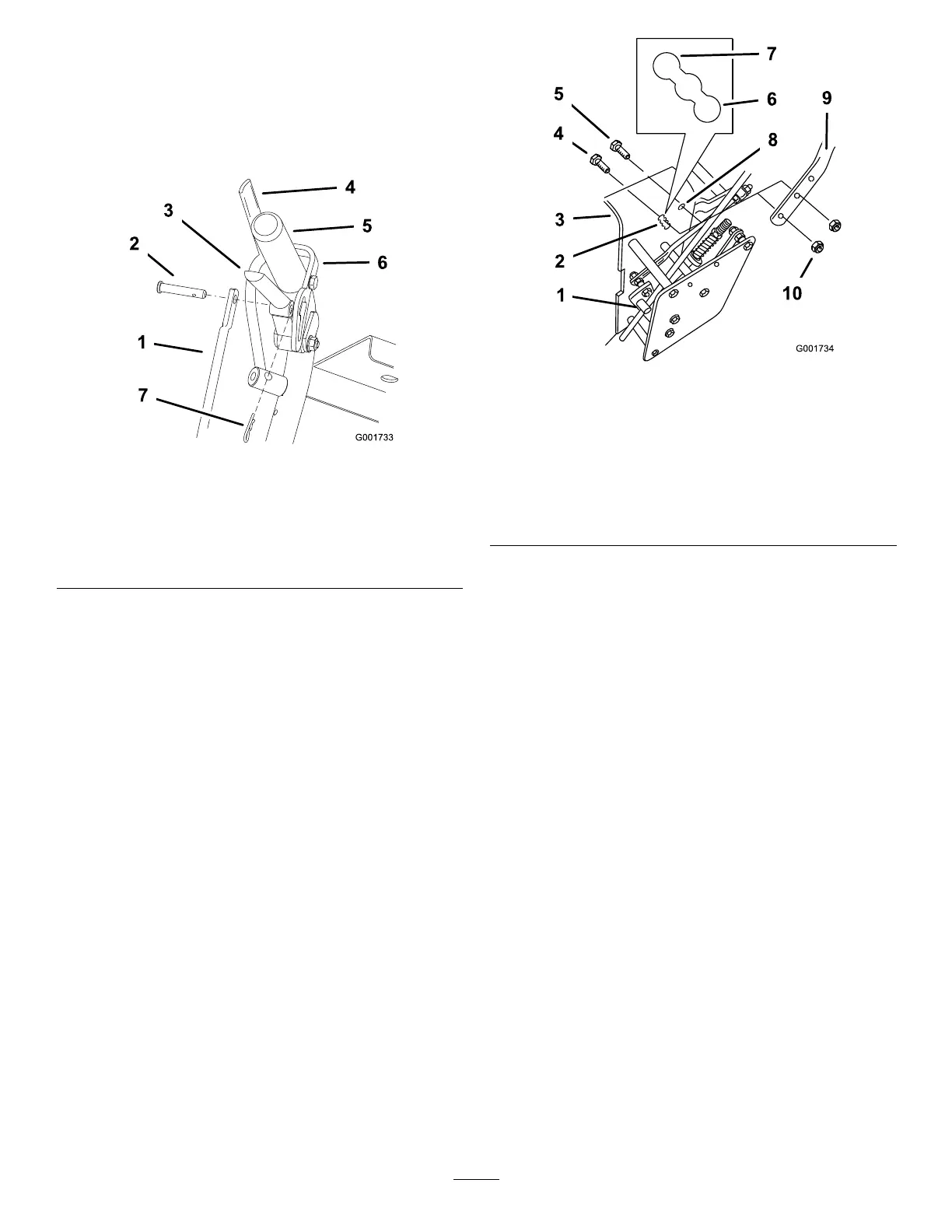

Figure22
1.Controlrod5.Lefthandleshown
2.Clevispin
6.Neutrallock
3.Drivelever7.Hairpincotterpin
4.OperatorPresence
Controllever(OPC)
2.Loosentheupperangebolts(3/8x1-1/4inch)and
angenutsecuringhandletorearframe(Figure23).
3.Removethelowerangebolts(3/8x1inch)andange
nutssecuringhandletorearframe(Figure23).
4.Pivotthehandletothedesiredoperatingpositionand
installthelowerangebolts(3/8x1inch)andange
nutsintothemountingholes.Tightenalltheange
bolts.
Figure23
1.Controlrodtting
6.Highposition
2.Lowermountingholes7.Lowerposition
3.Rearframe
8.Uppermountinghole
4.Lowerangebolt(3/8x1
inch)
9.Handle
5.Upperangebolt(3/8x
1-1/4inches)
10.Flangenut(3/8inch)
5.Adjustthecontrolrodlengthbyrotatingthecontrol
rodintherodtting(Figure23).
6.Installthehairpincotterbetweenthedriveleversand
theneutrallocksandintotheclevispins(Figure22).
Note:Makesurethattheclevispinsareinsertedinto
theneutrallocks.
7.Performthehydrauliclinkageadjustmentswhenthe
handleheightischanged;referHydraulicLinkage
Adjustments.
