ServicingtheFuelFilter
ServiceInterval:Every200hours/Yearly(whichevercomes
rst)
ReplacingtheFuelFilter
Neverinstalladirtylterifitisremovedfromthefuelline.
Note:Notehowthefuellterisinstalledinordertoinstall
thenewltercorrectly.
Note:Wipeupanyspilledfuel.
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Closefuelshut-offvalveatthefueltank(
Figure32).
4.Squeezetheendsofthehoseclampstogetherandslide
themawayfromthelter(
Figure33).

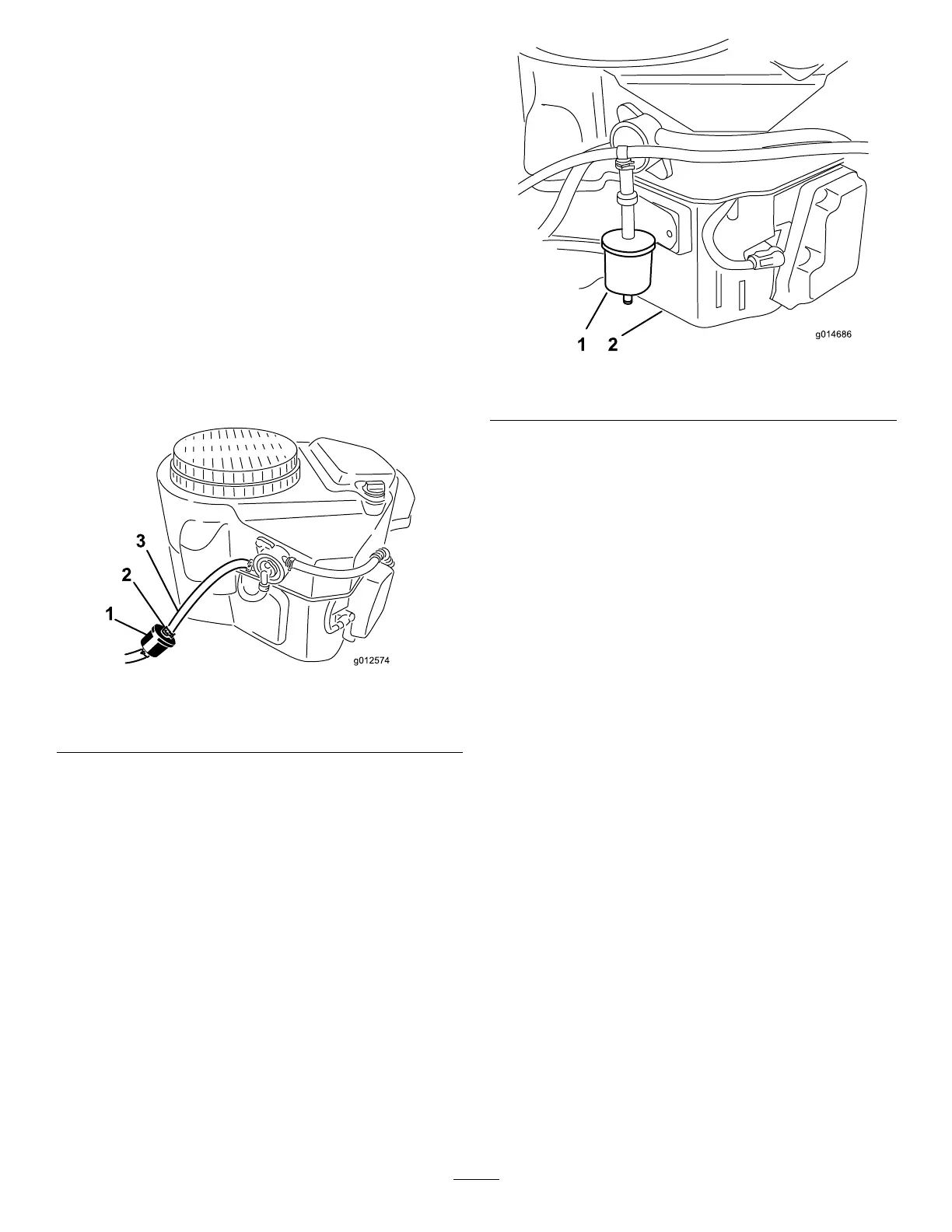

Figure33
1.Hoseclamp3.Filter
2.Fuelline
5.Removethelterfromthefuellines.
6.Installanewlterandmovethehoseclampscloseto
thelter.
7.Openfuelshut-offvalveatfueltank(Figure32).
8.Checkforfuelleaksandrepairifneeded.
9.Wipeupanyspilledfuel.
ServicingtheFuelVentSystem
ServiceInterval:Every200hours/Yearly(whichevercomes
rst)
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Removetheexistingfuelventlter(
Figure34).
4.Installanewlter.
g014686
1 2
Figure34
1.Fuelventlter2.Rightsideofmotor
