SAFETY PRECAUTIONS
1.14
1.14

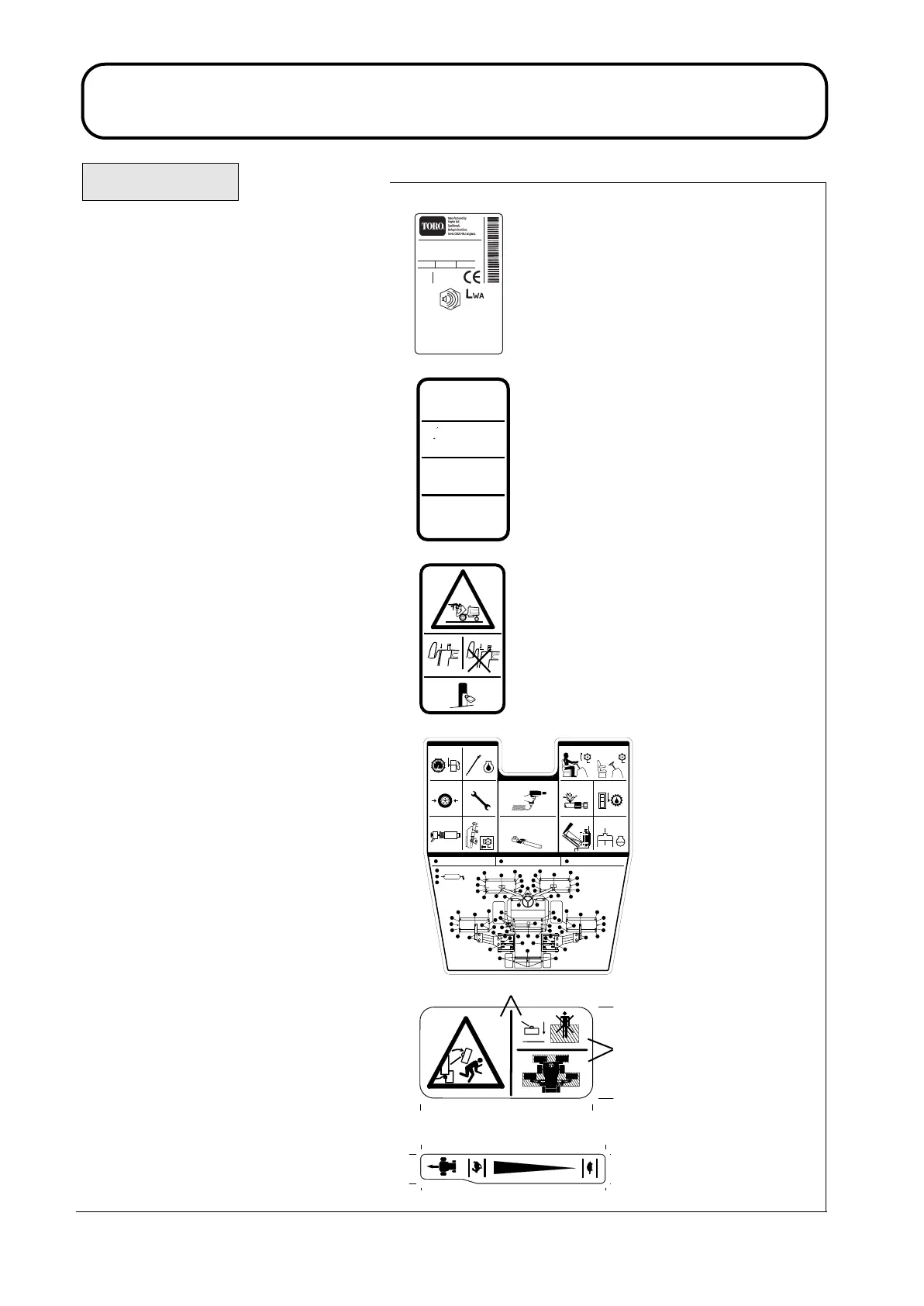

DECALS Continued.
Decal - Serial Number
Location: Rear Bulkhead
Decal - Prevent Platform Damage
Part No. 924828
Location : Platform, Seatwell
Decal - Warning Platform Latch
Part No. 924868
Location: Next to Platform Latch
Warning - Prevent Accidents: Ensure plat-
form is correctly seated and the latch is
fully locked before operating the machine.
Decal - Maintenance RM4240-D
Part No. 953812
Location: Underside of Engine
Cover next to Latch.
Decal - Warning Crush Hazard
Part No. 953829
Location: Platform LH/RH Sides
a) Warning of Cutterheads being Lowered
b) Do Not Stand in the Area Indicated
When the Cutterheads are being
Lowered or Raised
Decal - Pedal Backstop
Part No. 953877
Location: Platform RH Side
2005
105
dB
Code Serial No:
652D 260000001
RM4240-D -
REELMASTER
kg:1750
RPM
:2800 kW:35.3
ENGAGE PARKING BRAKE AND
DROP CUTTERHEADS BEFORE
RAISING/LOWERING PLATFORM.
POUR EVITER DES DOMMAGES
,
METTRE LE FREIN DE PARKING ET POSER
LES TETES DE COUPES AVANT DE
BOUGER LA PLATE-FORME.
VOORKOM BESCHADIGING! ZET
MACHINE OP HANDREM EN LAAT DE
KOOIEN ZAKKEN, VOORDAT HET
BEDIENINGS PLATFORM NAAR VOREN
GEKANTELD OF TERUG GEPLAATST
WORDT.
PREVENT PLATFORM DAMAGE !
924828 REV.0.
..
SCHADEN VERMEIDEN - PARKBREMSE
FESTSETZEN UND DIE SCHNEIDEINHEITEN
HERUNTERLASSEN BEVOR DIE SITZ-
PLATTFORM GEKIPPT WIRD.
924868 REV .0
DAILY 50 HOURS (WEEKLY)DAILY (IF FITTED)
CLEAN AND INSPECT THE MACHINE.
WHEEL NUT TORQUE
FRONT: 200Nm
REAR: 54Nm
DAILY MAINTENANCE DAILY MAINTENANCE
953812(Rev 1)
GREASE POINTS
30 - 40mm
FUEL
E
F
D
FUEL LEVEL
TYRES
AIR CLEANER
ENGINE OIL
FASTENERS
SEAT SWITCH
HOSE LINES HYDRAULIC OIL
RADIATOR/SCREENS COOLANT LEVELCUTTERHEADS
50 HOURS MAINTENANCE
953829(Rev.1.)
a
b
