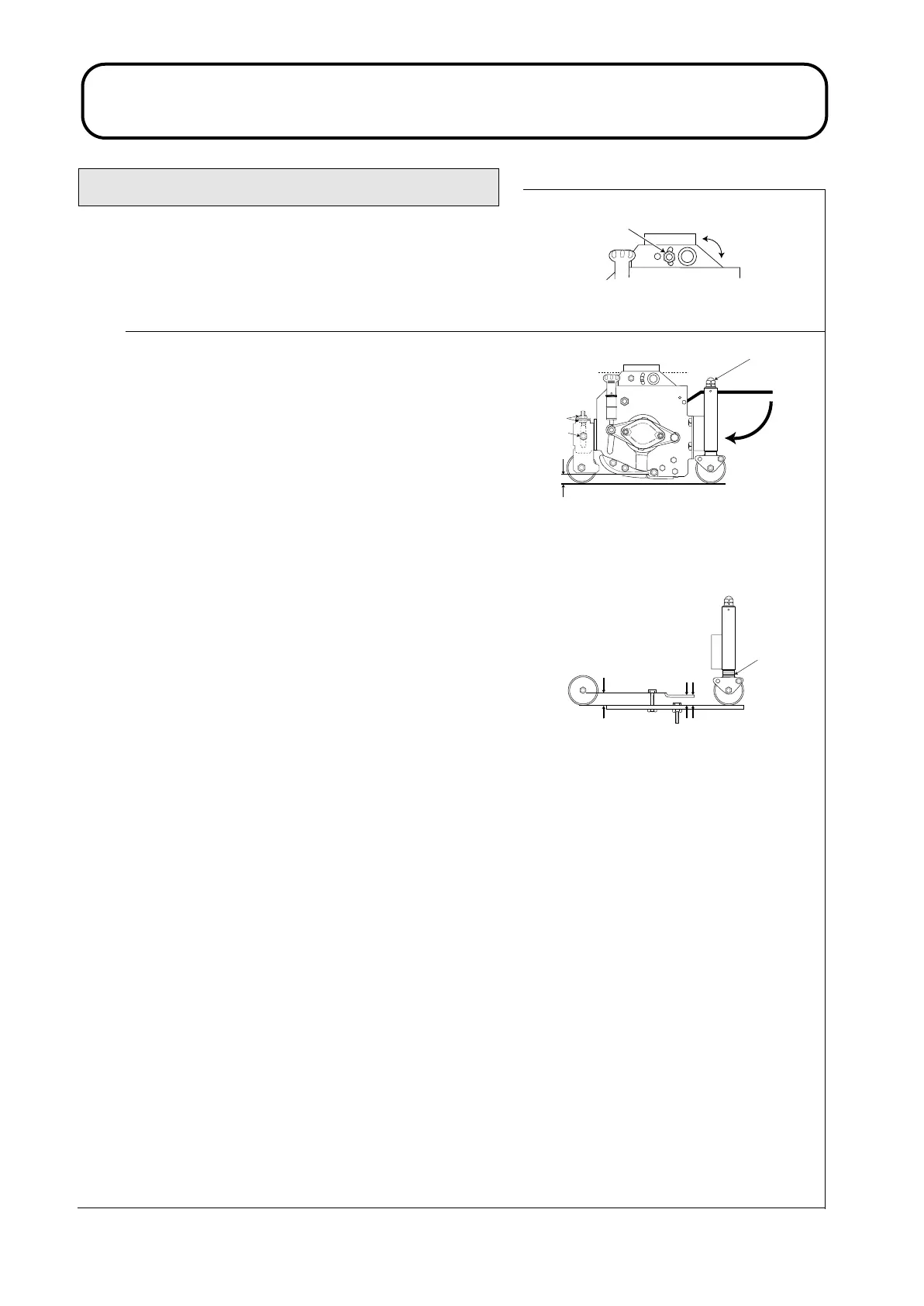

MK3 200mm FLOATING CUTTERHEAD
Pivot knuckle fixing: Secure the bolt in the rear “floating” slot
position ‘A’ as shown.
Height of cut adjustment: The height of cut is gauged by the
position of the front and rear rollers.
To alter the rear roller position, turn the adjusting nut assembly ‘B’
both ends clockwise to decrease height of cut ‘E’ or anti-clockwise
to increase height of cut ‘E’.
IMPORTANT: PREVENT DAMAGE - Do not attempt to
unlock the nut assemblies, ‘B’.
To alter the front roller position loosen bolts ‘F’. Release and turn
adjusting nuts ‘D’ both ends clockwise to increase the height of cut
or anti-clockwise to decrease the height of cut.
Ensure that all cutterheads are set at the same height of cut by
referring to the indicator rings ‘C’ or use the height of cut gauge
across the full width of each cutterhead as shown.
Tighten nuts ‘D’ and ‘F’ both ends.
