Every100hours
1.Starttheengineandletitrunforveminutes.This
warmstheoilsoitdrainsbetter.
2.Parkthemachineonalevelsurface.
3.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
4.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
5.Placeapanbelowtheoildrain.Removethedrain
plugandlettheoildraincompletely(Figure36).
6.Removetheoilllercapfromthetopoftheengine
(Figure38).Thiswillhelptheoiltodrain.
7.Installthedrainplugandtightenitto25-1/2ft-lb
(35N•m).
Note:Disposeoftheusedoilatarecyclingcenter.

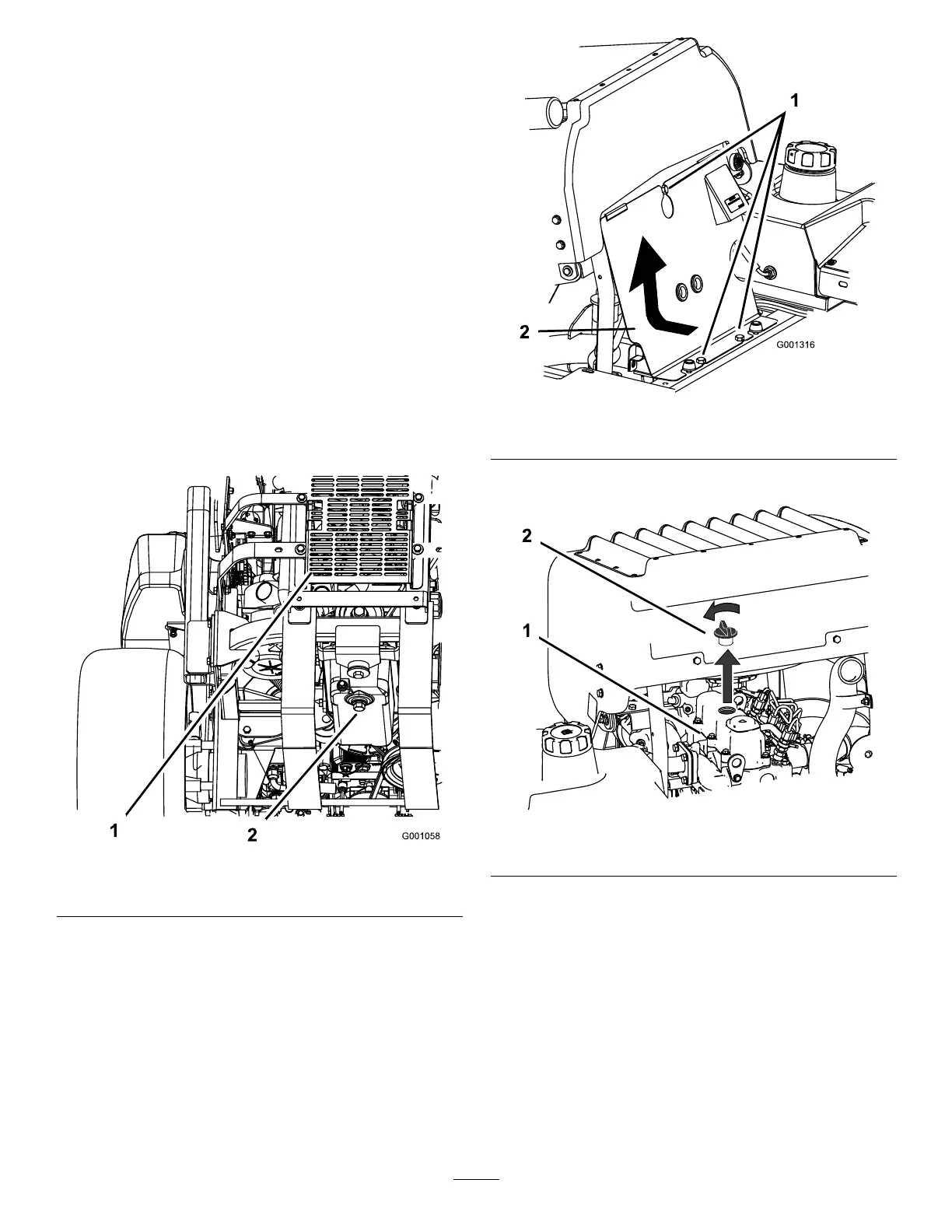

Figure36
1.Backofmachine
2.Drainplug
AddingEngineOil
1.Tilttheseatforward,loosentheboltsandremove
thefrontenginepanel(Figure37).
Figure37
1.Bolt2.Frontenginepanel
2.Removetheoilllercapandthedipstick(Figure38).
Figure38
1.Engine
2.Oilllcap
3.Toaddoiltotheengine,locateanduseahoseand
funnelforaddingoil(Figure39).
4.Addoilslowly,checkingthelevelwiththedipstick
frequentlyuntilthelevelreachestheupperholeon
thedipstick.Forthecorrectoiltypeandviscosity
touseindifferenttemperatureconditions,referto
ServicingtheEngineOilinEngineMaintenance,
page32,).
34
