HYDRAULIC SYSTEM
4-41Z580/Z593/Z595 Diesel Service Manual
4

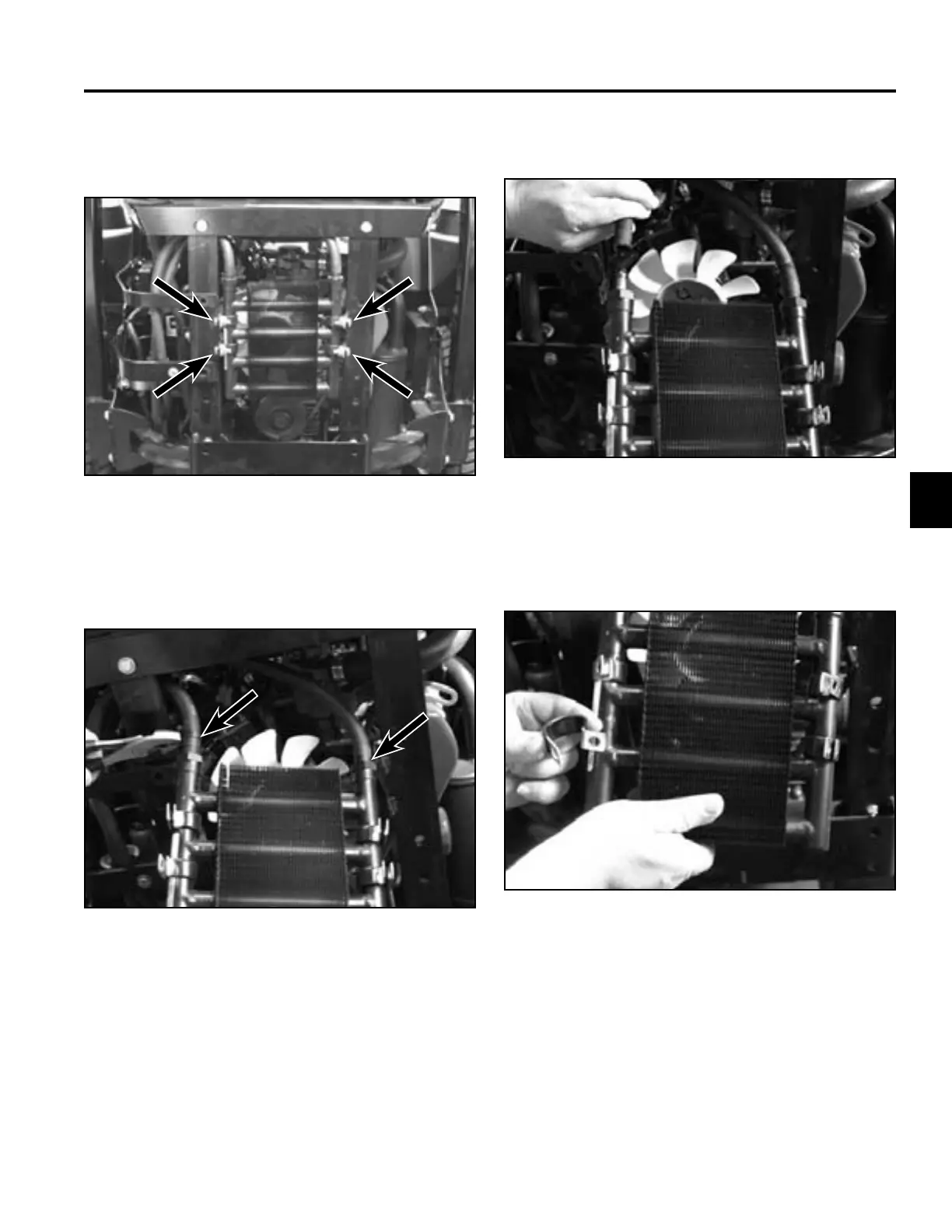

10. Remove the 4 bolts and nuts securing the oil cooler
to the frame (Fig. 371).
12. Remove the 2 hoses from the oil cooler (Fig. 373).
Fig 371 PICT-3447
Fig 373 PICT-3454
13. Remove the 4 r-clamps and transfer them to the new
oil cooler (Fig. 374).
11. Slide the 2 hose clamps off the oil cooler hoses (Fig.
372).
Fig 383 PICT-3458
Fig 372 PICT-3452

Toro Diesel Z Master Specifications

General

Fuel Type	Diesel
Transmission	Hydrostatic
Engine Type	Diesel
Cutting Width	60 inches
Fuel Tank Capacity	12 gallons
