Toro Diesel Z Master - MOWER DECKS; Mower Belt Replacement

MOWER DECKS
7-1Z580/Z593/Z595 Diesel Service Manual
7
1. Disengage the PTO, move the motion control levers
to the neutral locked position and set the parking
brake.
2. Stop the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.
3. Raise the fl oor pan (Fig. 685).
Mower Belt Replacement

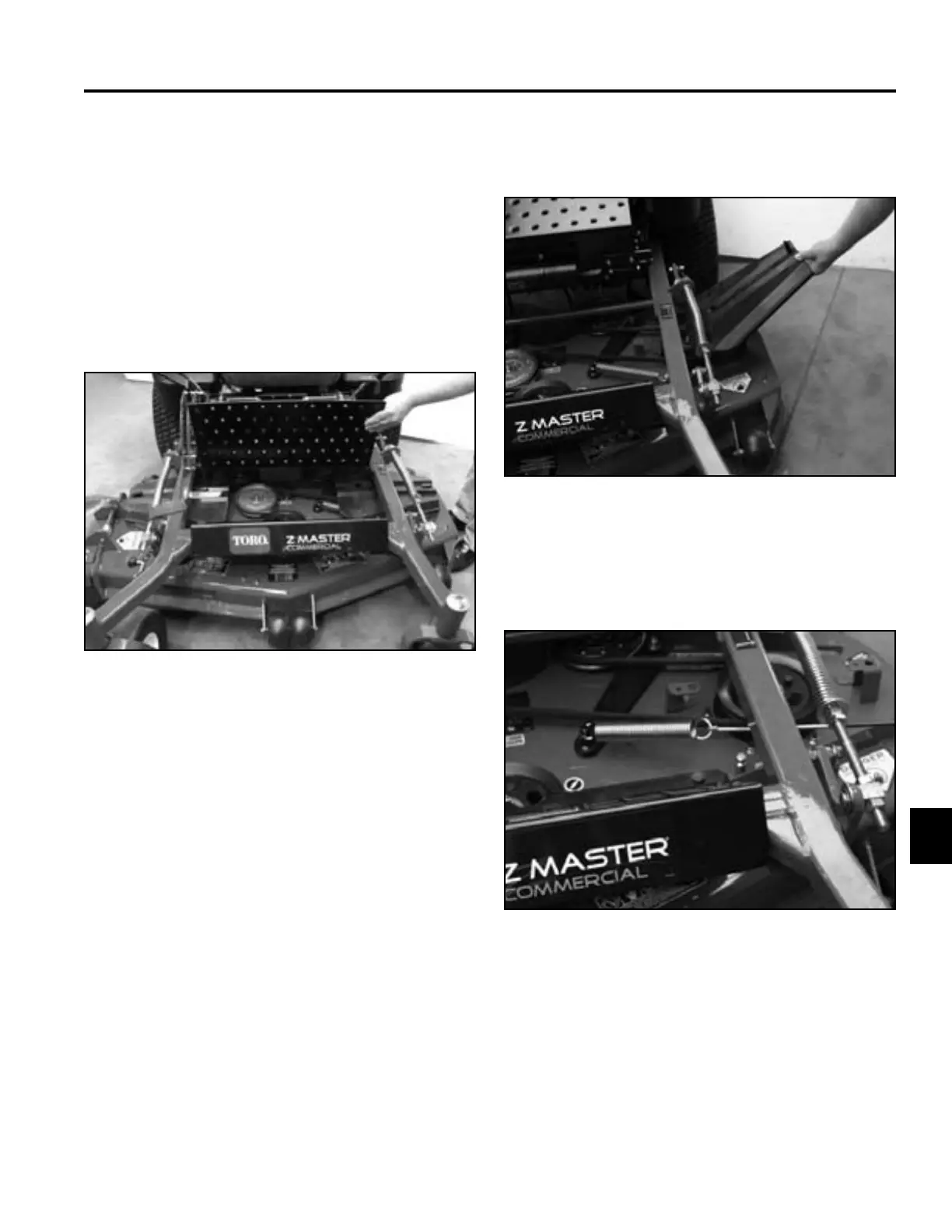

Fig 685 PICT-4011
Fig 687 PICT-4013
5. Using a spring removal tool (Toro p/n: 92-5771), re-
move the mower deck belt idler spring (Fig. 687).
Fig 686 PICT-4012
4. Remove the right hand and left hand belt covers
(Fig. 686).
