Toro Diesel Z Master - Chassis; Castor Fork Assembly Replacement; Castor Fork Assembly Removal; Castor Bearing Replacement

CHASSIS
3-1Z580/Z593/Z595 Diesel Service Manual
3

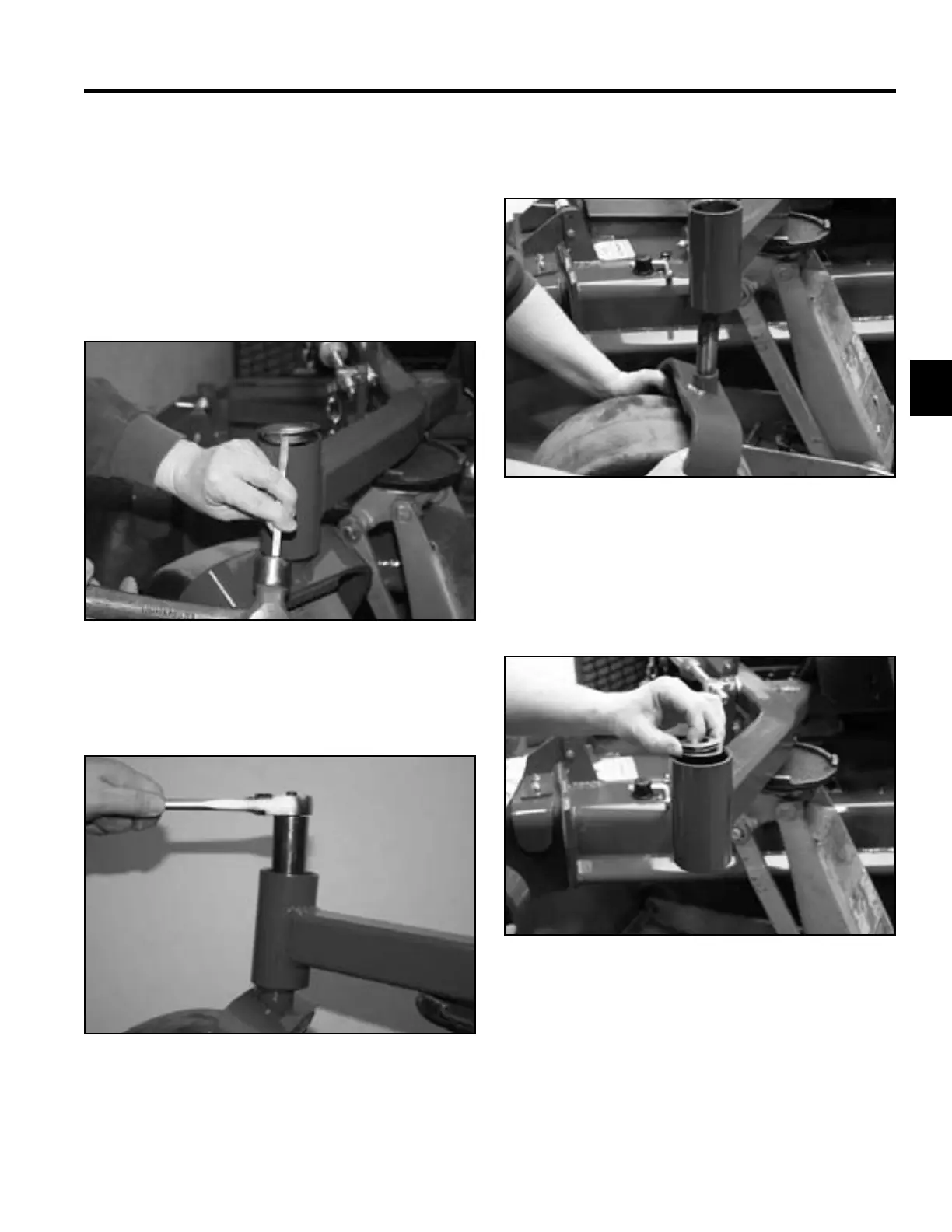

1. Raise the front of the machine off the ground leaving
enough clearance to remove the castor fork from the
carrier frame.
2. Remove the grease cap from the frame (Fig. 001).
Castor Fork Assembly Replacement
Castor Bearing Replacement
Castor Fork Assembly Removal
Fig 001 IMG_7694a
3. Remove the locknut (Fig. 002).
Fig 002 IMG_7874a
Fig 004 IMG_7703
1. Remove the 3 Belleville washers (Fig. 004).
Fig 003 IMG_7700
4. Slide the castor fork assembly out of the frame (Fig.
003).
