Toro Diesel Z Master - Electric PTO Clutch Removal Ogura Clutch

MOWER DECKS
7-38 Z580/Z593/Z595 Diesel Service Manual
7

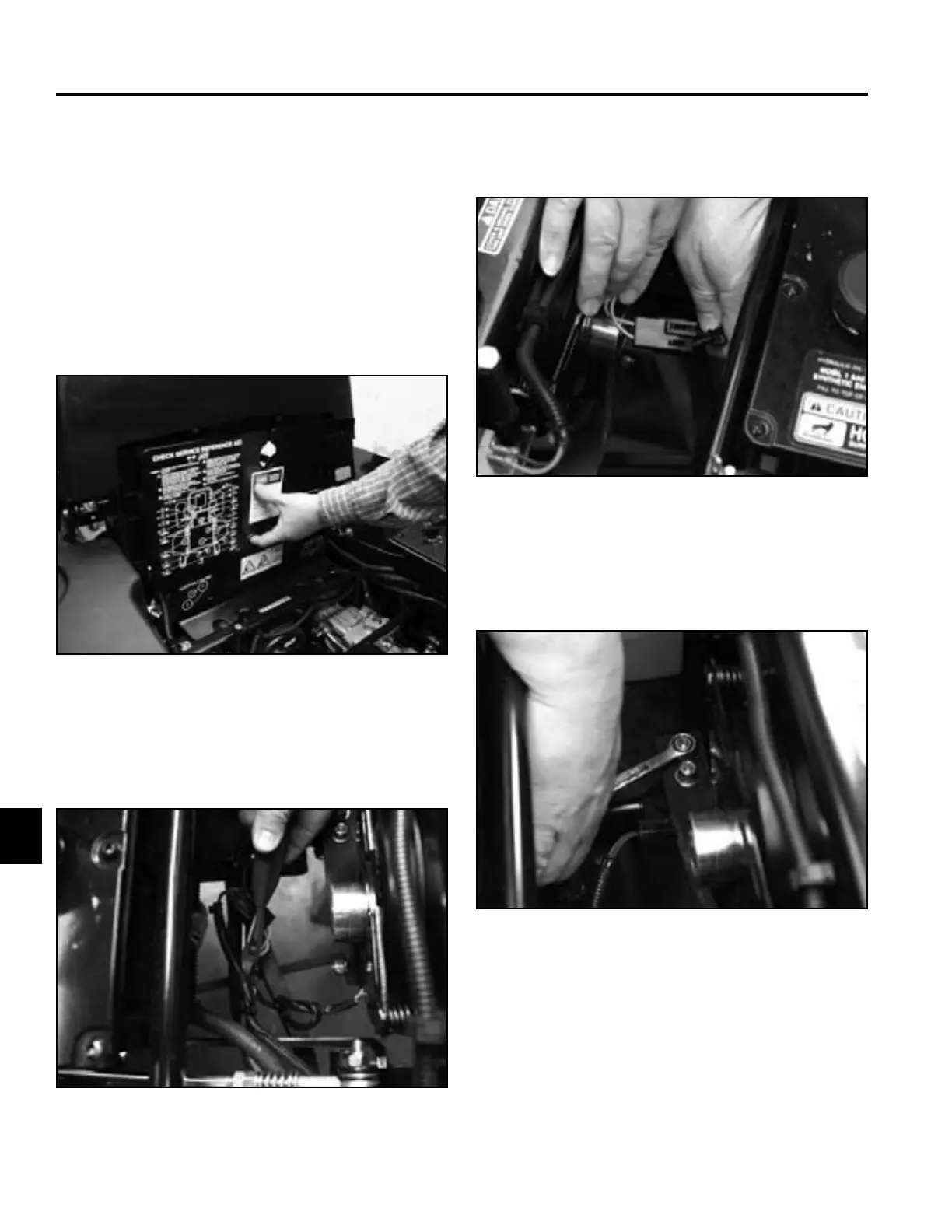

7. Remove the carriage bolts, washers, and nut holding
the clutch stop to the frame (Fig. 828).
Fig 828 PICT-3993
Electric PTO Clutch Removal
Ogura Clutch
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.
4. Remove the front engine panel (Fig. 825).
5. Remove the tie strap holding the electric PTO clutch
wire to the frame crossbar (Fig. 826).
Fig 825 IMG_7862
Fig 826 PICT-3990
6. Unplug the harness connector from the electric PTO
clutch (Fig. 827).
Fig 827 PICT-3979
