Open End Cap Teardown
Closed End Cap Teardown

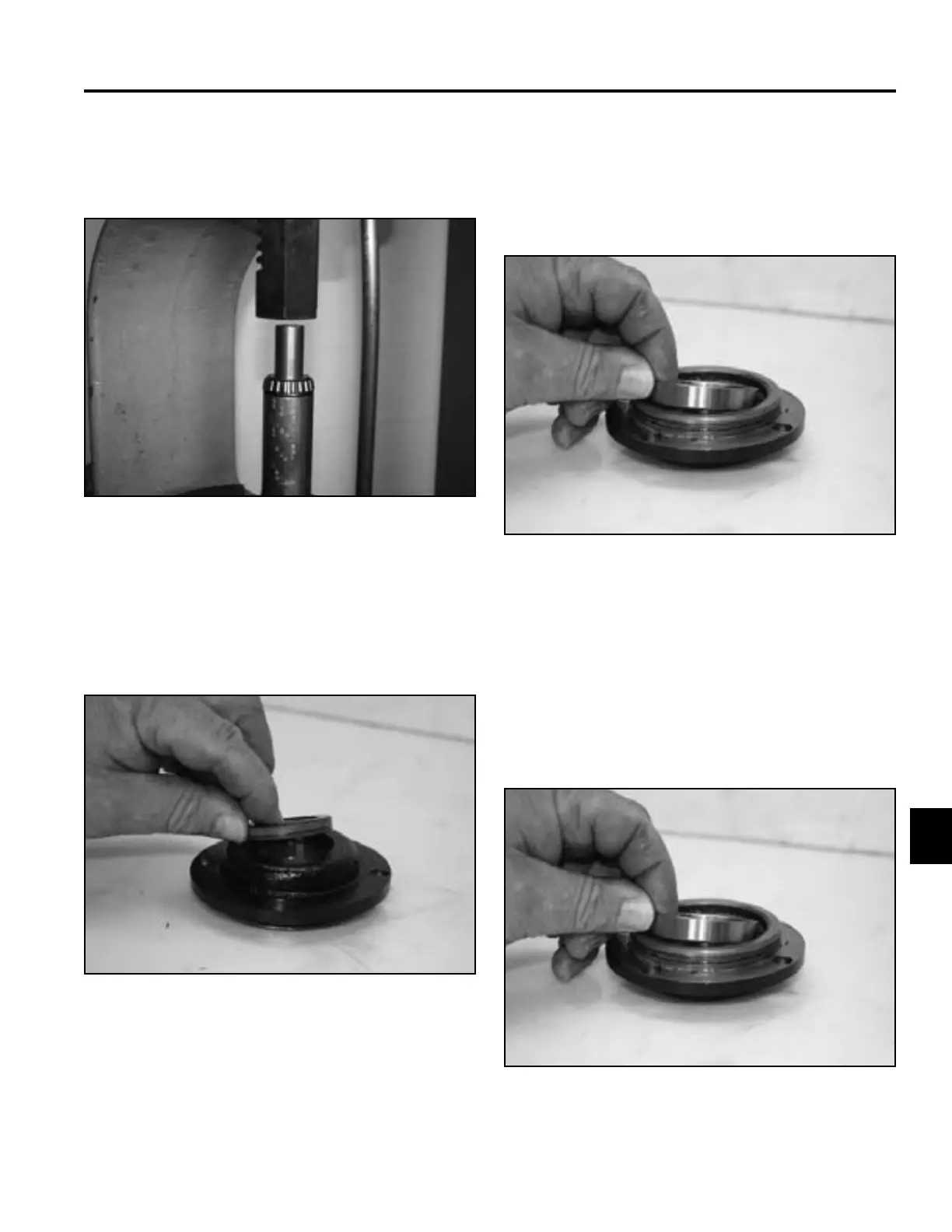

26. Position the cross shaft in the press so the opposite
bearing is facing up. Press the bearing off the shaft
(Fig. 955).
28. Remove the bearing race form the open end cap
(Fig. 957).
Note: The inner race and housing must be heated to
remove the race.
Fig 955 IMG-8520
Fig 957 IMG-8537
29. Remove the bearing race from the closed end cap
(Fig. 958).
Note: The inner race and housing must be heated to
remove the race.
27. Remove the oil seal from the open end cap (Fig.
956).
Fig 958 IMG-8537
Fig 956 IMG-8536
