7-25Z580/Z593/Z595 Diesel Service Manual
7

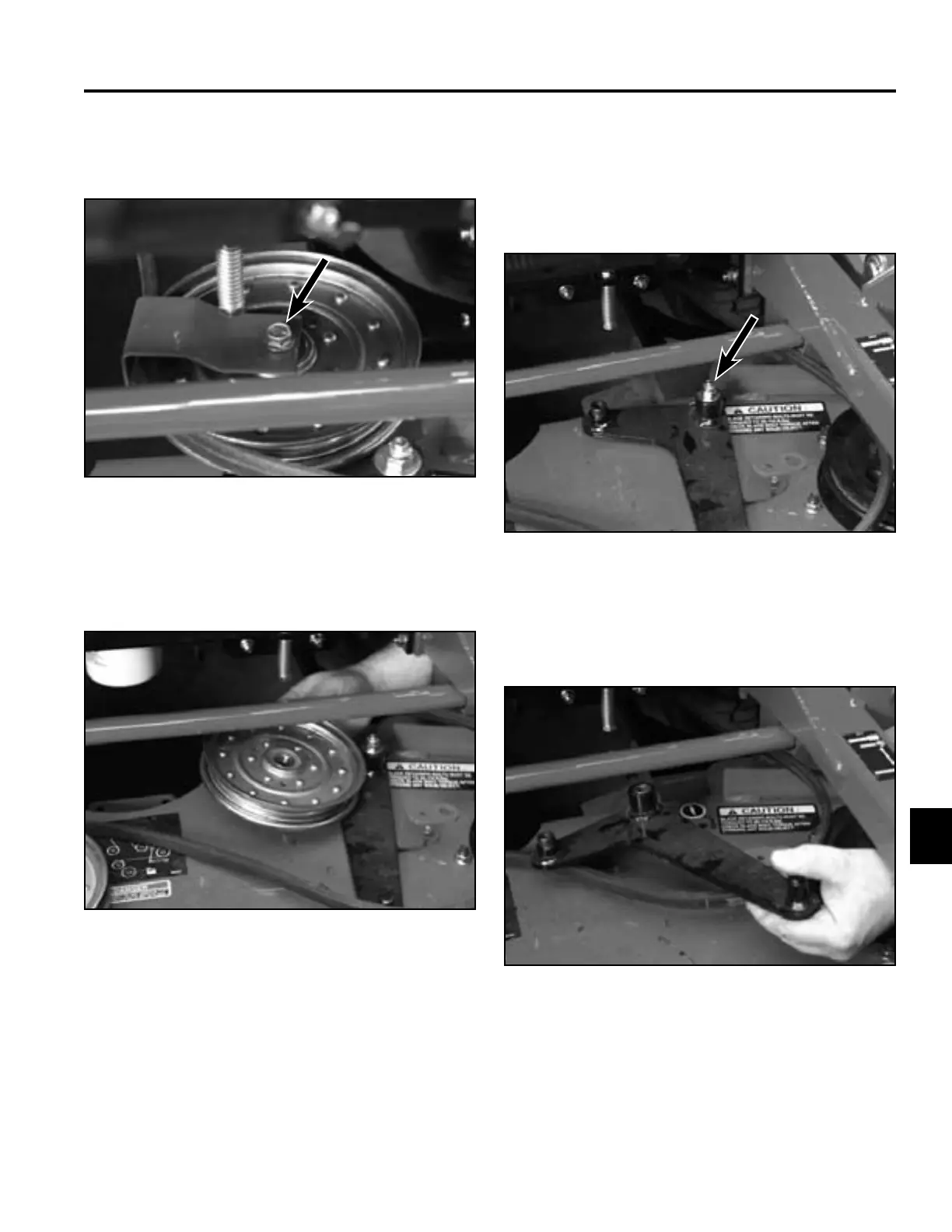

7. Remove the bolt, belt guide and 2 fl at washers
securing the idler pulley to the idler arm (Fig. 776).
9. Remove the bolt, nut and 2 washers securing the
idler arm assembly to the mower deck (Fig. 778).
Note: One of the washers is between the idler arm
and mower deck.
Fig 776 PICT-4061
Fig 778 PICT-4065
10. Remove the idler arm assembly from the mower
deck (Fig. 779).
8. Remove the pulley from the idler arm assembly (Fig.
777).
Fig 779 PICT-4067
Fig 777 PICT-4063

Toro Diesel Z Master Specifications

General

Fuel Type	Diesel
Transmission	Hydrostatic
Engine Type	Diesel
Cutting Width	60 inches
Fuel Tank Capacity	12 gallons
