MOWER DECKS
7-48 Z580/Z593/Z595 Diesel Service Manual
7
19. Remove the key from the keyway (Fig. 864).
Fig 864 PICT-3912a
20. Inspect the keys, gearbox shafts and pulleys. Re-
place if worn or damaged.
21. Check the gearbox oil level. Refer to “Checking the
Gearbox Oil Level” on page 7-54.

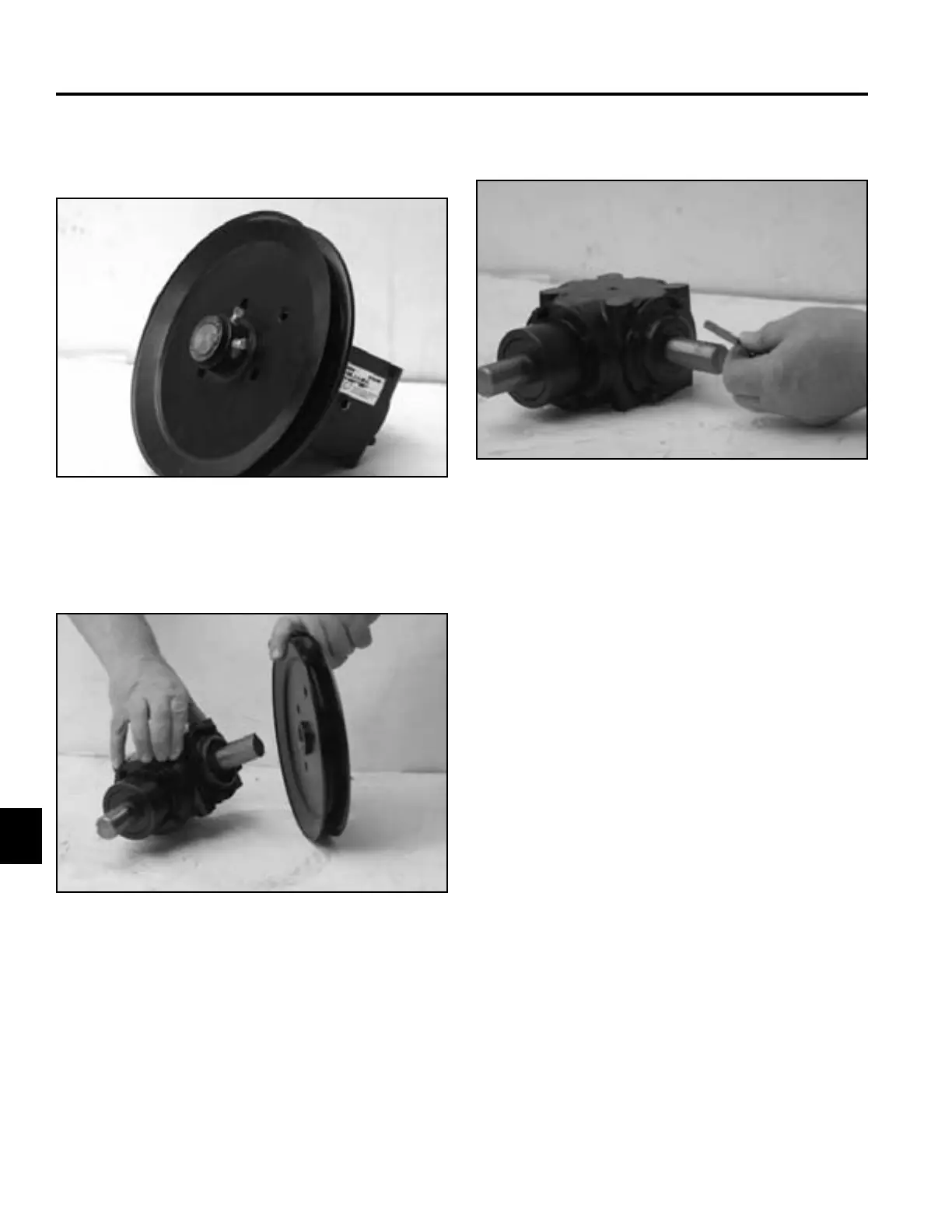

17. Remove the 2 set screws from the gearbox drive
pulley (Fig. 862).
Fig 862 PICT-3908
18. Remove the pulley (Fig. 863).
Fig 863 PICT-3918a

Toro Diesel Z Master Specifications

General

Fuel Type	Diesel
Transmission	Hydrostatic
Engine Type	Diesel
Cutting Width	60 inches
Fuel Tank Capacity	12 gallons
