Lubrication
ServiceInterval:Every50hours
Themachinehasgreasettingsthatmustbe
lubricatedregularlywith#2general-purpose,
lithium-basedgrease.Ifthemachineisoperated
undernormalconditions,lubricateallbearings
andbushingsafterevery50hoursofoperationor
immediatelyaftereverywashing.
Lubricatethefollowingareas:

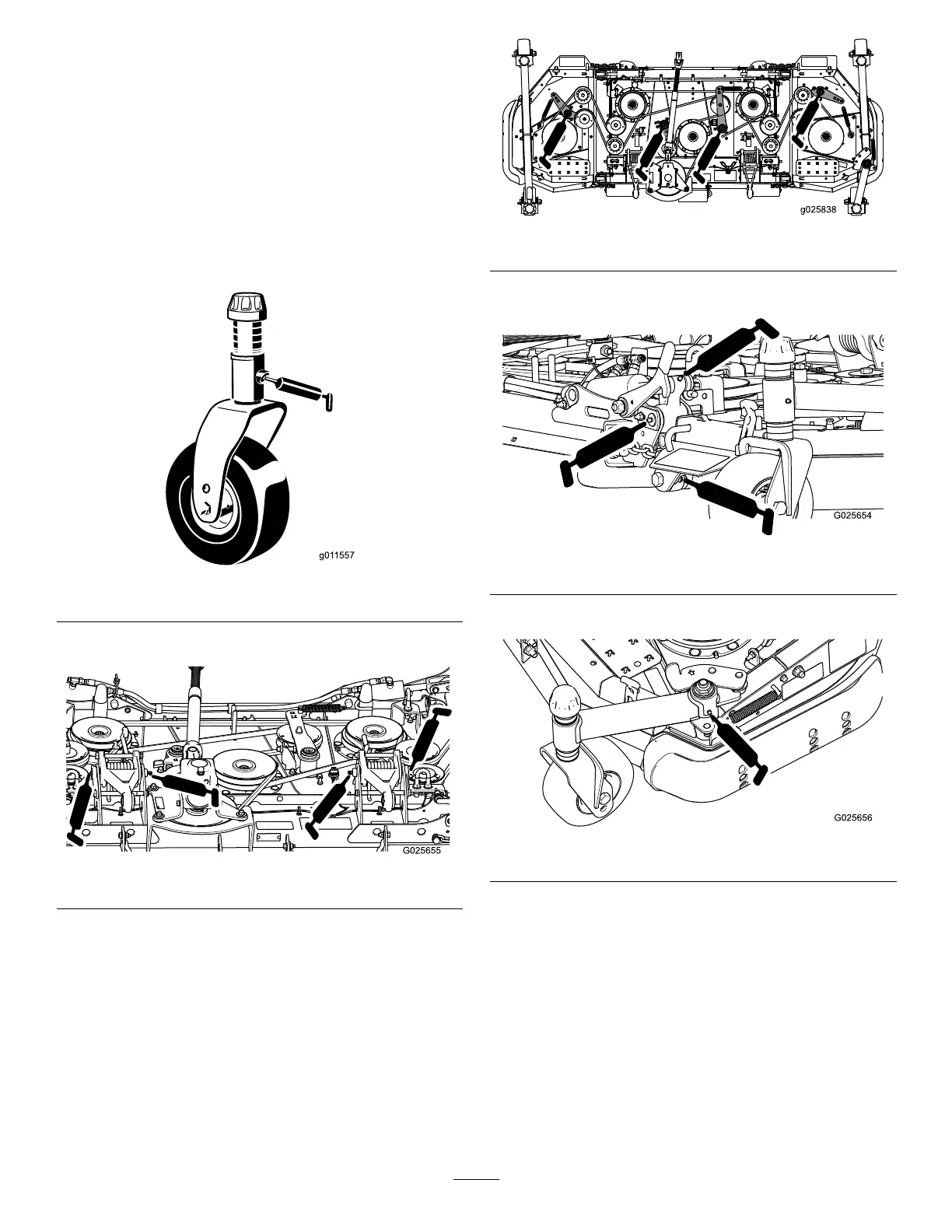

•Casterforkshaftbushings(4)(Figure13)
g011557
Figure13
•Decklinks(5)(Figure14)
g025655
Figure14
•Idlerarmpivots(4)(Figure15)
g025838
Figure15
•Wingdeckhinges(10)(Figure16)
g025654
Figure16
•Foldingcasterarmpivot(1)(Figure17)
g025656
Figure17
•PTOdriveshaft(2)(Figure18)
