Toro Groundsmaster 360 Series User Manual

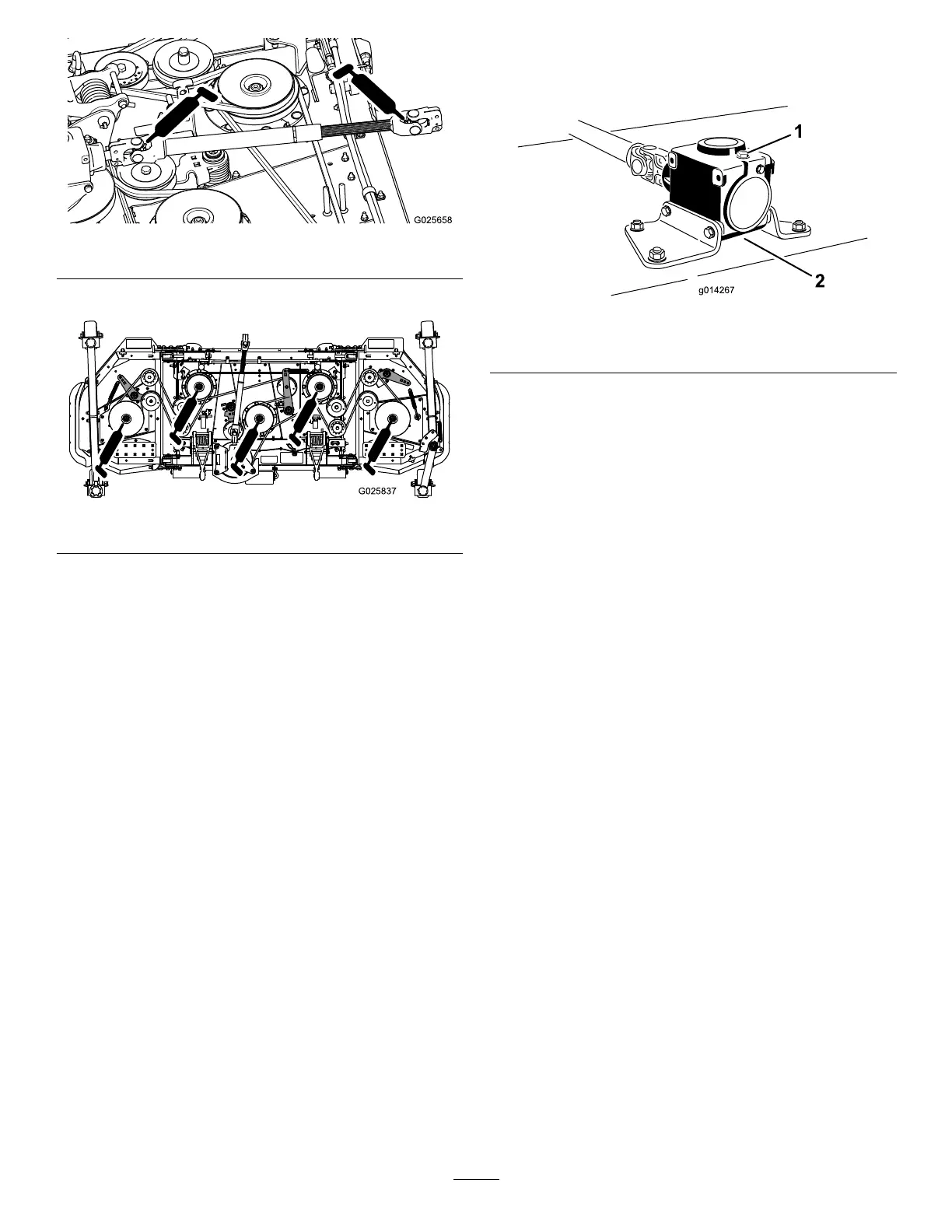

g025658
Figure18
•Spindleshaftbearings(5)(Figure19)
g025837
Figure19
ServicingtheMowerDeck
GearboxLubricant
ThegearboxisdesignedtooperatewithSAE80W-90
gearlube.Althoughthegearboxisshippedwith
lubricantfromthefactory,checkthelevelbefore
operatingthecuttingunitforthersttimeandevery
150operatinghoursthereafter.Changethelubricant
inthegearboxevery400operatinghours.
CheckingtheMowerDeck
GearboxLubricant
ServiceInterval:Every150hours
1.Positionthemachineandcuttingunitonalevel
surface.
2.Lowerthemowerdecktothe2.5cm(1inch)
heightofcut.
3.DisengagethePTO,releasethetractionpedal
andsettheparkingbrake.
4.MovethethrottlelevertotheSlowposition,
stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingthe
operatingposition.
5.Liftthefootrest,exposingthetopofthemower
deck.
6.Removethedipstick/llplugfromthetopofthe
gearbox(Figure20)andmakesurethatthe
lubricantisbetweenthemarksonthedipstick.
g014267
Figure20
1.Fillpluganddipstick2.Drainlocation
7.Ifthelubricantlevelislow,addenoughlubricant
untilthelevelisbetweenthemarksonthe
dipstick.
Note:Donotoverllthegearbox,orthe
gearboxmaybedamaged.
ChangingtheMowerDeck
GearboxLubricant
ServiceInterval:Aftertherst50hours
Every400hours
1.Positionthemachineandcuttingunitonalevel
surface.
2.Lowerthemowerdecktothe2.5cm(1inch)
heightofcut.
3.DisengagethePTO,releasethetractionpedal
andsettheparkingbrake.
4.MovethethrottlelevertotheSlowposition,
stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingthe
operatingposition.
5.Liftthefootrest,exposingthetopofthemower
deck.
6.Removethedipstick/llplugfromthetopofthe
gearbox(Figure20).
7.Placeadrainpanunderthedrainpluglocated
underthefrontofthegearboxandremovethe
plug,drainingthelubricantintothepan.
8.Replacethedrainplug.
9.Addenoughlubricant,approximately414ml(14
oz),untilthelevelisbetweenthemarksonthe
dipstick.
Note:Donotoverllthegearbox,orthe
gearboxmaybedamaged.
17

Toro Groundsmaster 360 Series Specifications

General

Cutting Width	72 inches
Deck Type	Side Discharge
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm)
Engine	Yanmar 3-cylinder diesel
