Toro Groundsmaster 360 Series - Deck-Limit Chain Adjustment; Preparing the Deck for Adjustment; Assembling Shim to Deck

AdjustingtheDeck-Limit
Chains
Use2deckshimsT oroPartNo.138-8243or2feeler
gauges—0.15mm(0.060inch)
PreparingtheDeck
1.Starttheengine,lowertheleftandrightdecks,
shutofftheengine,removethekey,andwaitfor
allmovingpartstostop.

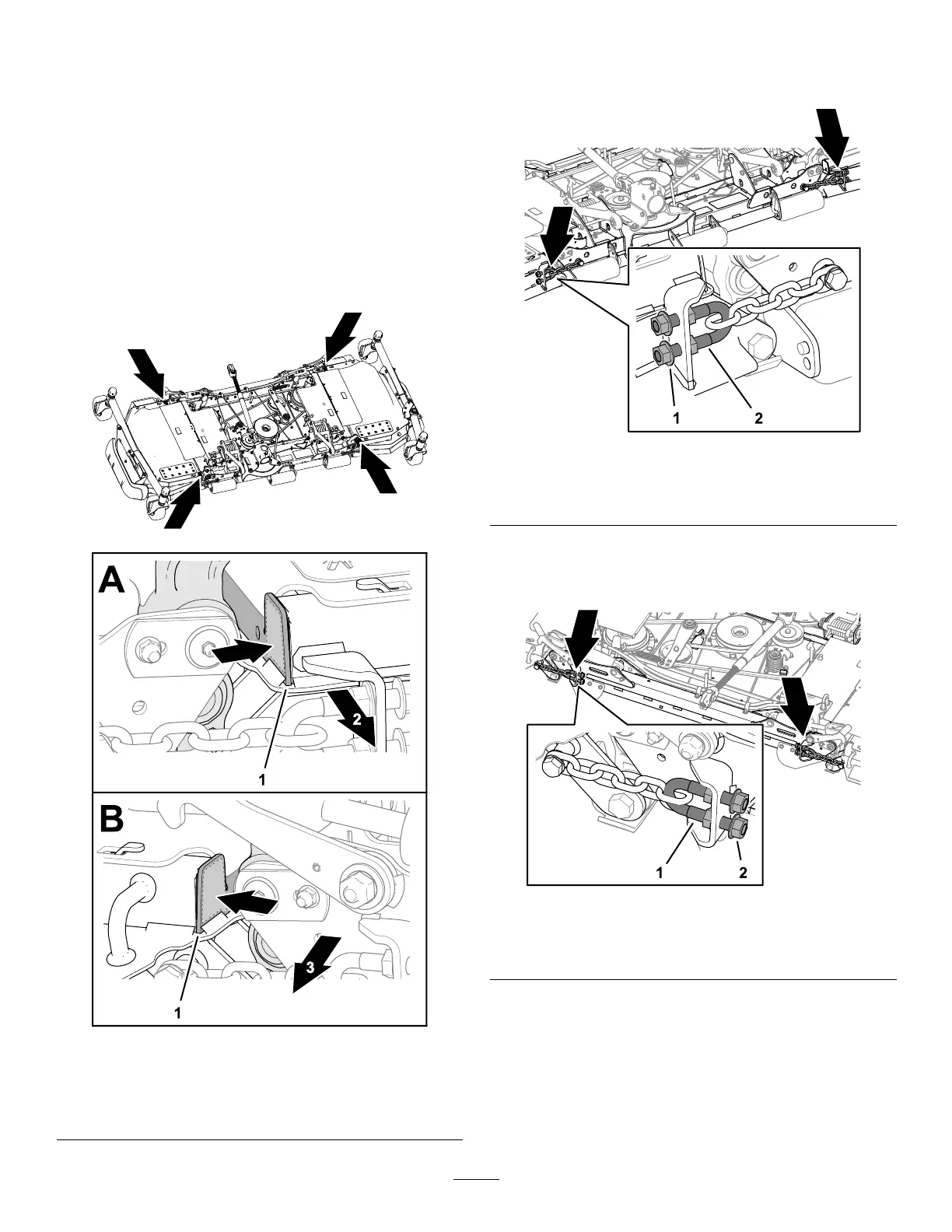

2.Attheouterdecks,wipecleanthetabofthe
innerchannel(Figure29).
g321242
g321236
Figure29
1.Tab(innerchannel—outer
deck)
3.Backofthemachine
2.Frontofthemachine
3.Atthefrontofthedeck,fullyloosentheoutboard
serrated-angenutssecuringthe4U-bolts
(Figure30).
g321237
Figure30
1.Serrated-angenut
(inboard)
2.U-bolt
4.Atthebackofthedeck,fullyloosentheinboard
serrated-angenutssecuringthe4U-bolts
(Figure31).
g321238
Figure31
1.U-bolt
2.Serrated-angenut
(outboard)
AssemblingtheShimtotheDeck
1.Installthedeckshimsatthefrontofthedeck
asshowninFigure32.
Note:Insertthepartofthelongtaboftheshim
underthebeltcover.
22
