Safety Door Service
When assembling safety door actuator, adjust threaded
rod to get a dimension of 6.25" between center of each
ball joint.
Apply Loctite 242 or equivalent to threads of each ball
joint before installing in deck and safety door.
After installing actuator, adjust threaded rod so lower
edge of door is even to 0.25" higher than lower edge of
door guide when wing decks are in fully raised (trans-
port) position, then tighten jam nuts (see Safety Door
Adjustment).

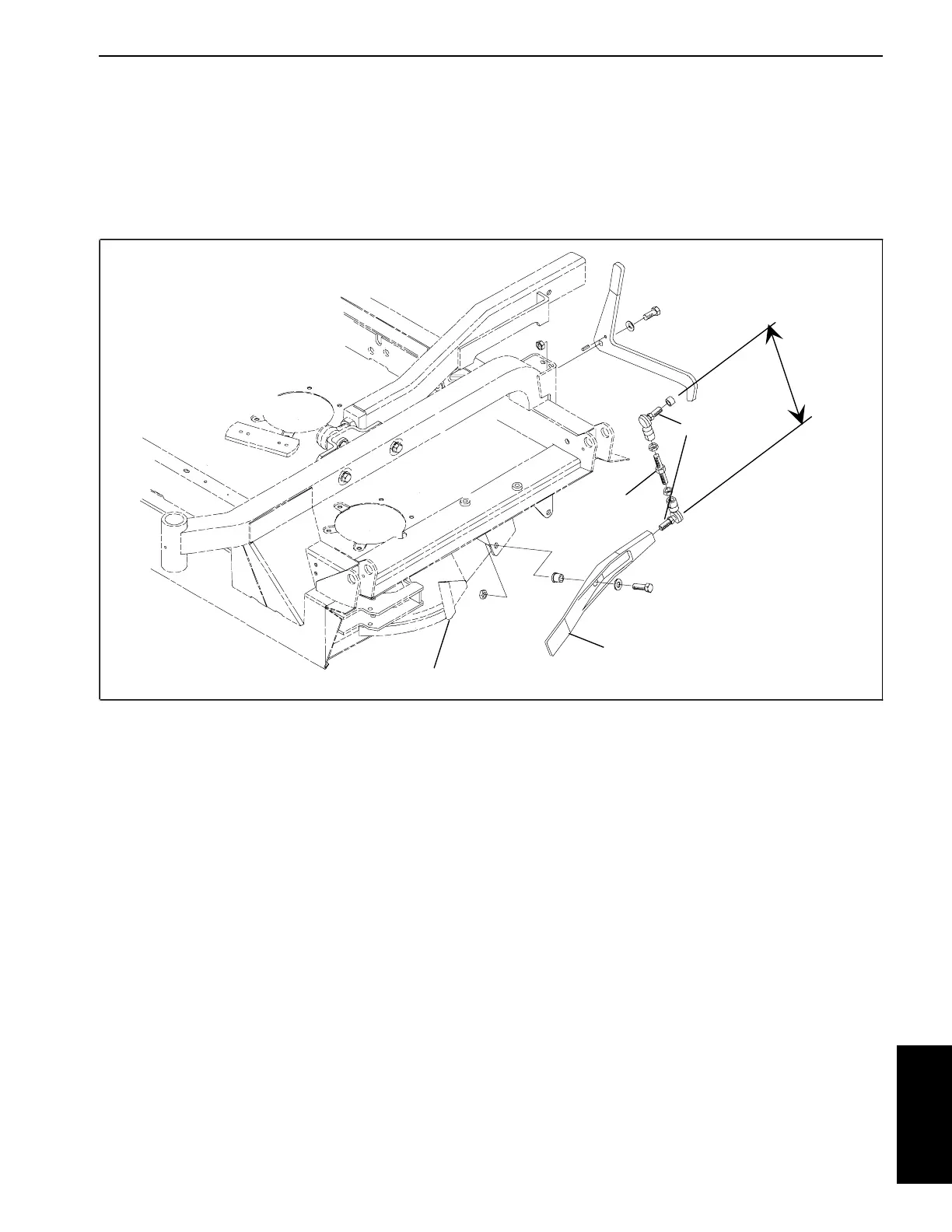

Figure 38
6.25"
Loctite 242
Safety door
Door guide
Threaded
rod
Cutting Unit
Groundsmaster
®
455-D Page 8 - 27 Repairs
