Groundsmaster 4300--DHydraulic System Page 4 -- 116

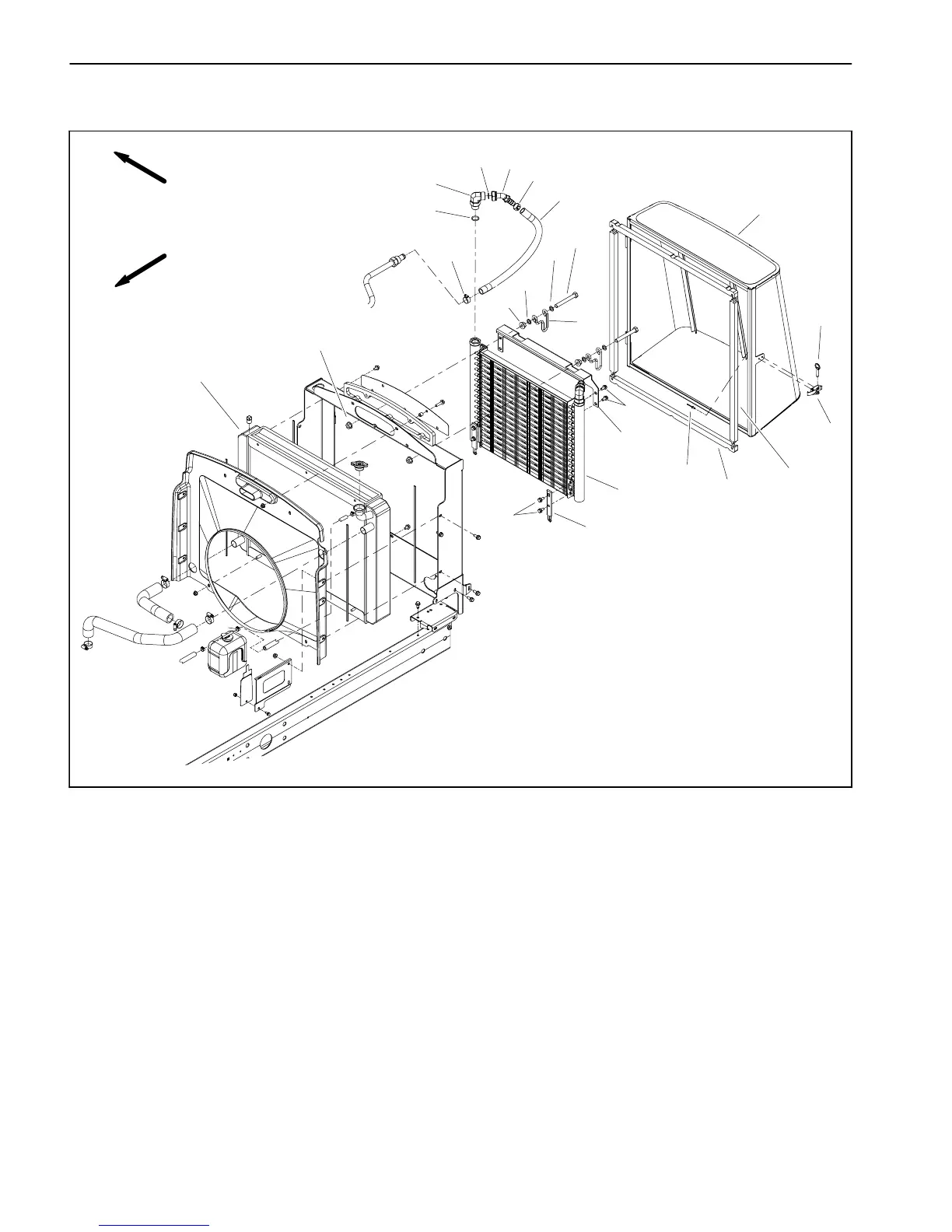

Oil Cooler
1. Screen assembly
2. Oil cooler bracket
3. Flange head screw (8 used)
4. Foam seal (2 used)
5. Draw latch
6. Rivet (2 used)
7. Oil cooler
8. Hydraulic hose (2 used)
9. 90
o
hydraulic fitting (2 used)
10. Hose clamp (4 used)
11. Foam seal (2 used)
12. Washer (4 used)
13. Cap screw (2 used)
14. Mount plate (2 used)
15. Pin
16. Clamp (2 used)
17. Flange nut (4 used)
18. O--ring
19. 45
o
hydraulic fitting (2 used)
20. O--ring
21. Radiator
Figure 104
FRONT
RIGHT
3
6
8
9
11
1
5
7
12
14
15
4
16
10
13
17
2
17
12
10
3
18
19
20
21
