Groundsmaster 4300--DCutting Decks Page 7 -- 12

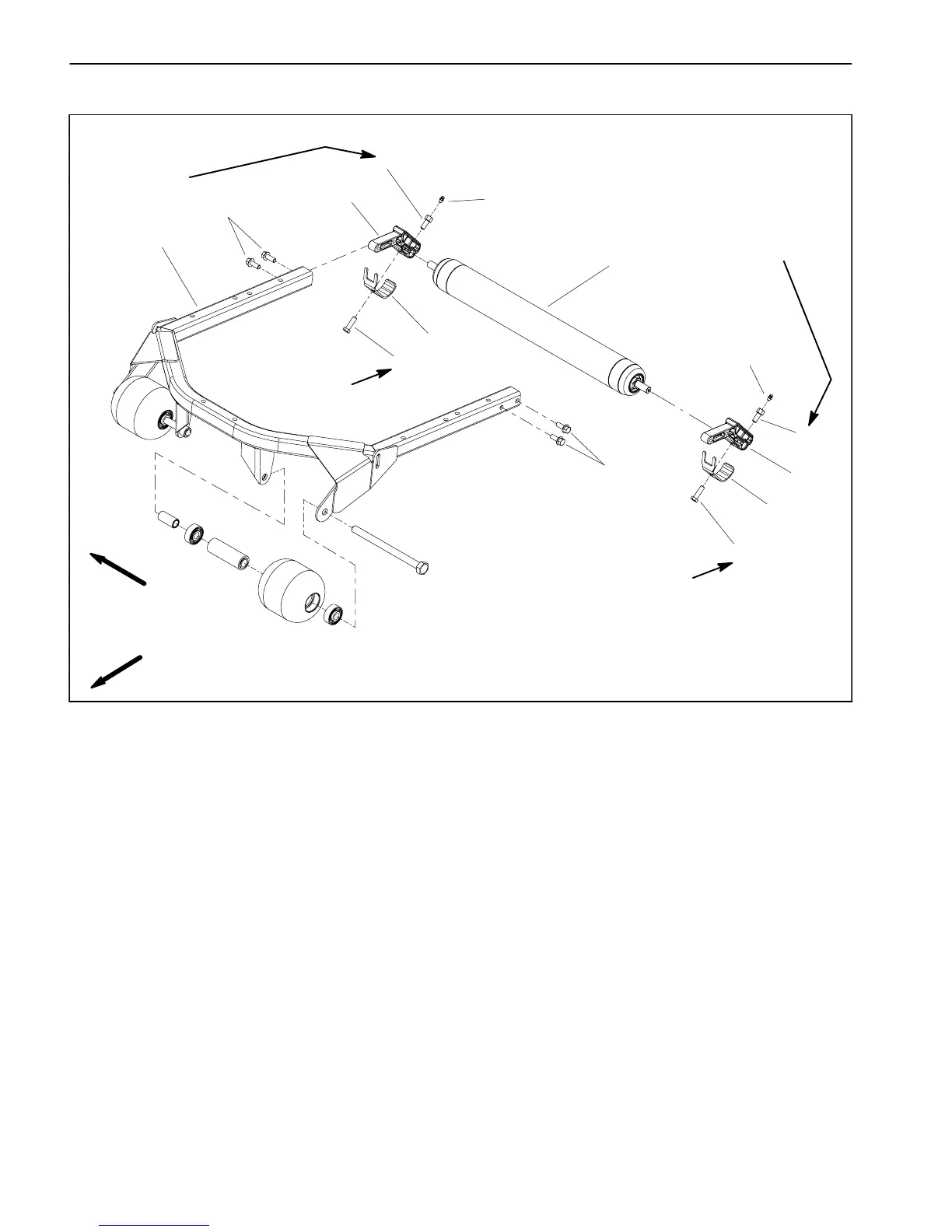

Rear Roller
1. Deck frame
2. Rear roller assembly
3. Grease fitting
4. Roller shaft screw
5. Roller mount
6. Flange head screw
7. Skid bracket
8. Cap screw
Figure 9
8
5
4
1
7
6
3
2
FRONT
RIGHT
5
4
3
6
8
7
29 to 35 ft--lb
(40to47N--m)
29 to 35 ft--lb
(40to47N--m)
29 to 35 ft--lb
(40to47N--m)
29 to 35 ft--lb
(40to47N--m)
