Groundsmaster 4300--D Page 3 -- 7 Kubota Diesel Engine
Removal (Fig. 4)
1. Park machine on a level surface, lower cutting
decks, stop engine, engage parking brake and remove
key from the ignition switch. Raise and support hood.
2. Remove air cleaner components as needed using
Figures 4 as a guide.
3. See Operator’s Manual for air cleaner service and
maintenance procedures.
Installation (Fig. 4)
IMPORTANT: Any leaks in the air filter system will
allowdirtintoengineandwillcause seriousengine
damage. Make sure that all air cleanercomponents
areingoodconditionandareproperlysecured dur-
ing assembly.
1. Assemble air cleaner system using Figure 4 as a
guide.
A. If service indicator (item 2) and adapter (item 3)
wereremovedfromaircleanerhousing,applythread
sealant to adapter threads before installing adapter
and indicator to housing. Install adapter so that
groovesinadapterhexandadapterfilterelementare
installed toward service indicator (Fig. 5). Torque in-
dicator from 12 to 15 in--lb (1.4 to 1.6 N--m).
B. Makesurethatvacuatorvalveispointeddownaf-
ter assembly.

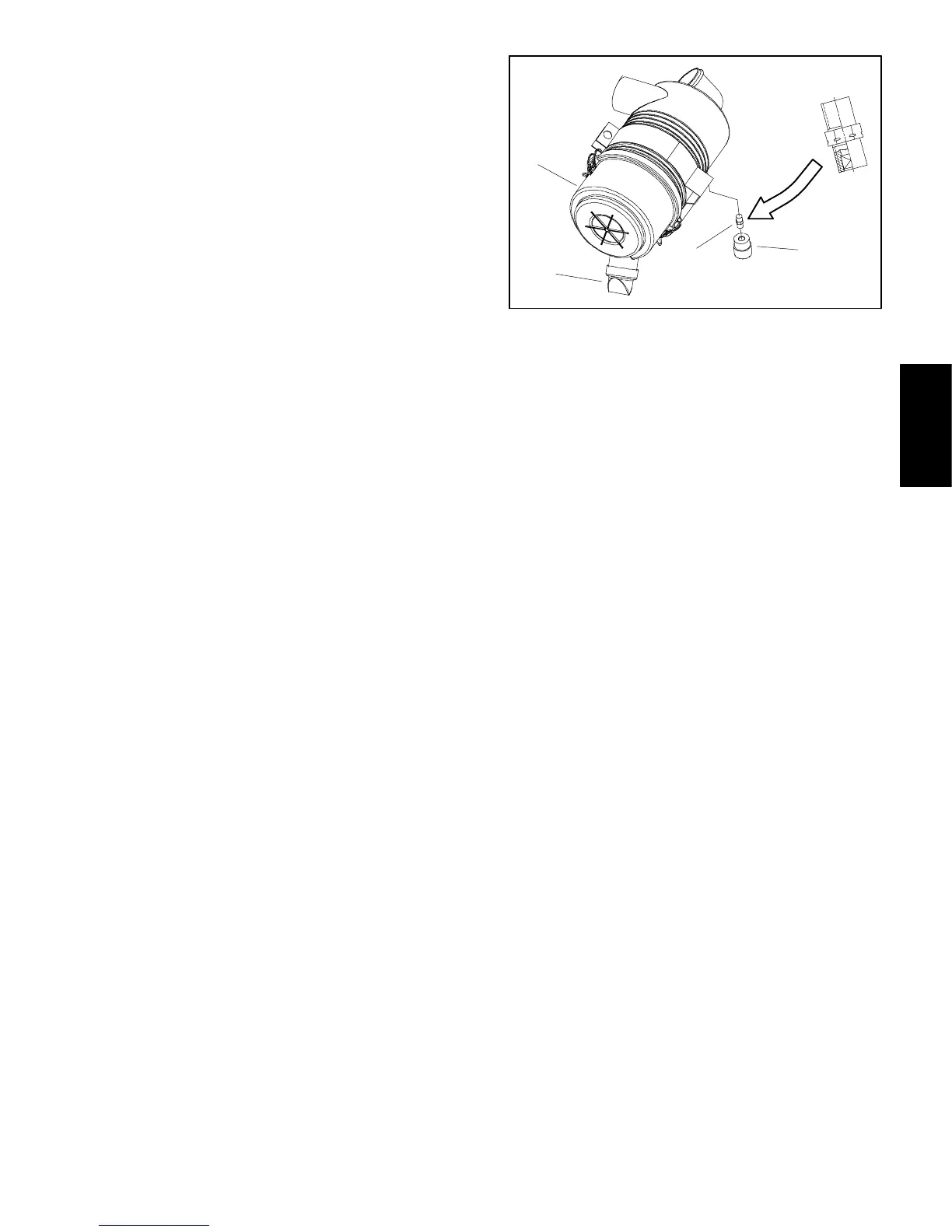

Figure 5
1. Air cleaner assembly
2. Service indicator
3. Adapter
4. V acuator valve
1
3
2
4
