Groundsmaster 4300--DPage 3 -- 12Kubota Diesel Engine
Engine

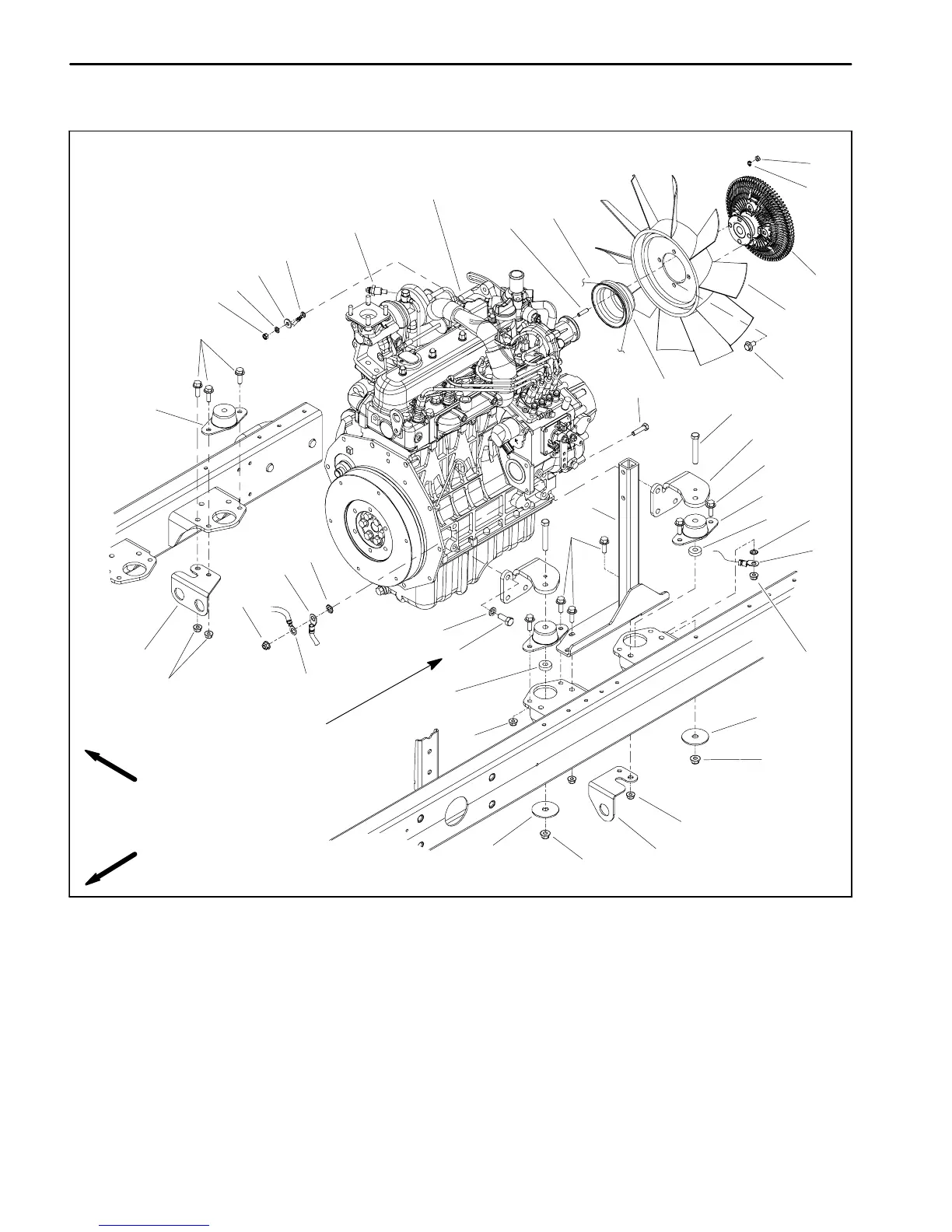

Figure 9
1. Engine assembly
2. Cap screw (12 used)
3. Temperature sender
4. Engine mount (4 used)
5. Flange head screw (13 used)
6. Snubbing washer (4 used)
7. Cap screw (4 used)
8. Flange nut (4 used)
9. Flange nut (14 used)
10. Fan clutch
11. Stud (4 used)
12. Lock washer
13. Lock washer
14. Pulley
15. V--belt
16. Lock washer (4 used)
17. Cooling fan
18. Flat washer
19. Spring washer
20. Hex nut
21. Cap screw
22. Spacer (4 used)
23. Negative battery cable
24. Air cleaner stand
25. Lock washer (12 used)
26. Fusible link harness
27. Engine mount (4 used)
28. Bracket
29. Bracket
30. Hex nut
31. Flange head screw (4 used)
32. Wire harness ground
FRONT
RIGHT
34 to 42 ft--lb
(47to56N--m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
30
31
29
28
9
9
9
6
8
5
9
4
5
22
23
32
