Groundsmaster 4300--DHydraulic System Page 4 -- 12

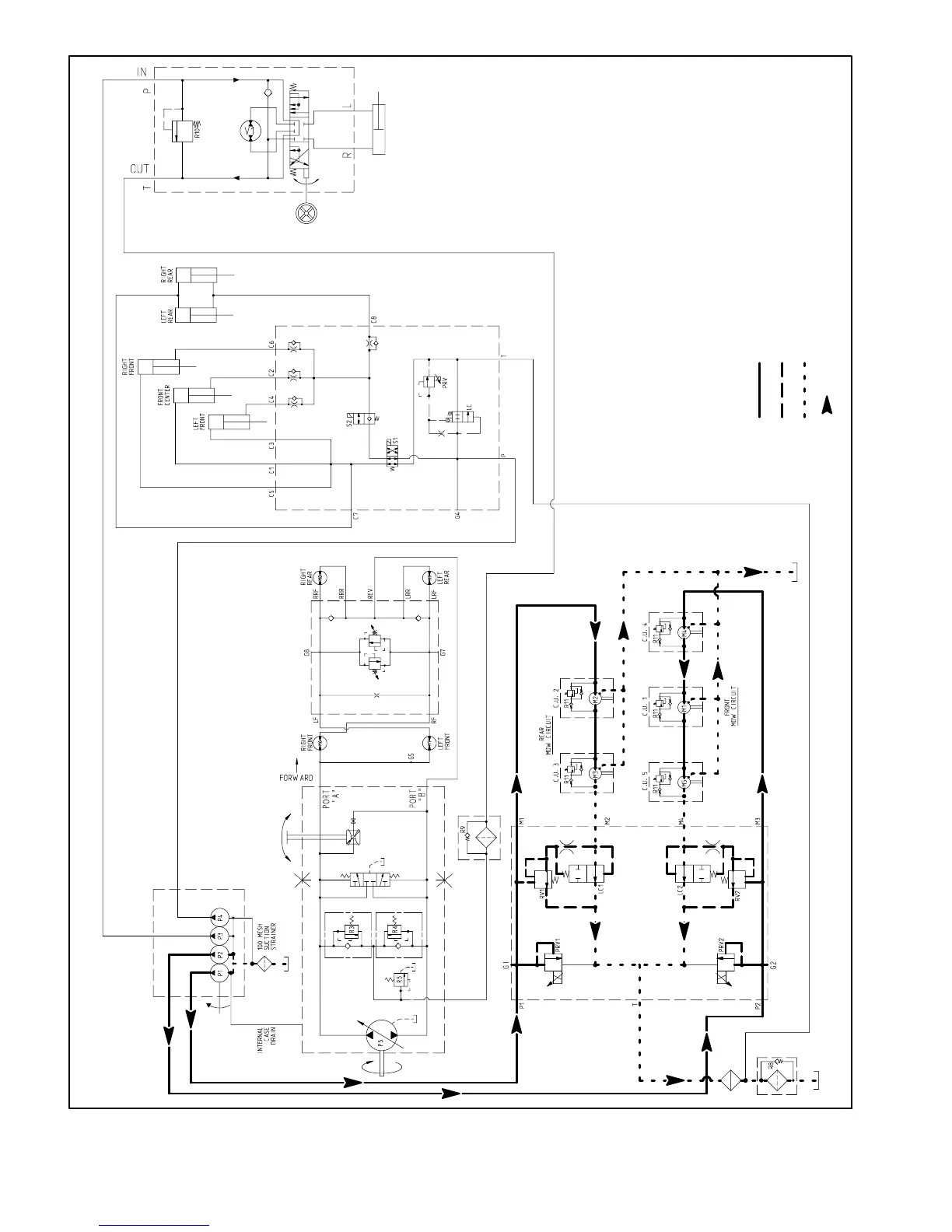

Figure 11
Working Pressure Low Pressure (Charge) Return or Suction
Flow
Mow Circuit Groundsmaster 4300--D
GEAR PUMP
CROSSTRAX
MANIFOLD
LIFT CONTROL MANIFOLD
BYPASS
PISTON
(TRACTION)
PUMP
DECK CONTROL MANIFOLD
VALVE
STEERING
CONTROL
VALVE
STEERING
CYLINDER
