Toro GroundsmasterR 4300-D User Manual

Groundsmaster 4300--DHydraulic System Page 4 -- 20

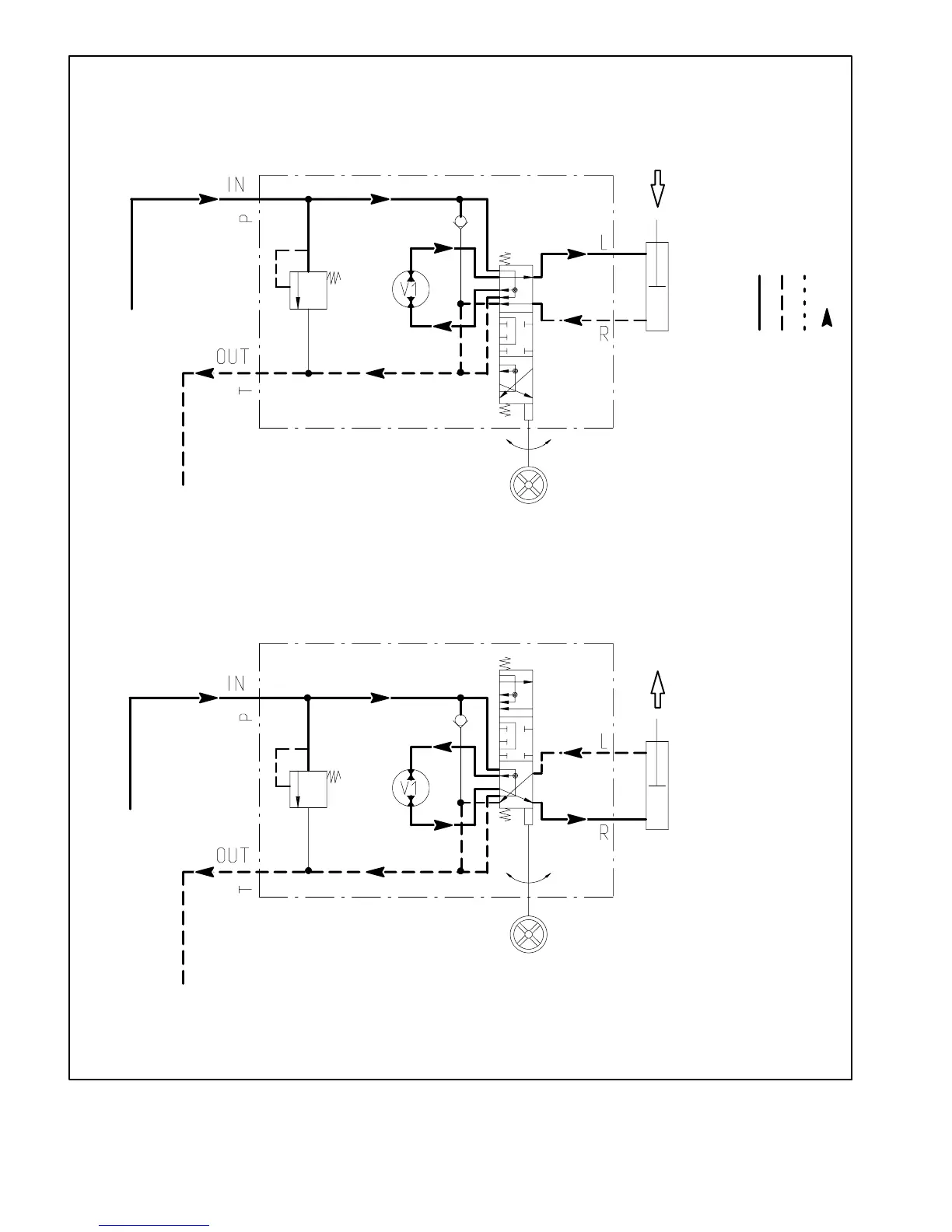

Figure 20
Working Pressure Low Pressure (Charge) Return or Suction
Flow
Steering Circuit Groundsmaster 4300--D
STEERING
CYLINDER
PISTON
MOVEMENT
STEERING
CYLINDER
STEERING
VALVE
PISTON
MOVEMENT
STEERING
VALVE
R10
R10
FROM PUMP (P3)
FROM PUMP (P3)
TO TRACTION
CHARGE CIRCUIT
TO TRACTION
CHARGE CIRCUIT
LEFT TURN
CONTROL
RIGHT TURN
CONTROL
