Toro Pro Force 44552TE - Rotor Shaft

RotorShaft
g280307

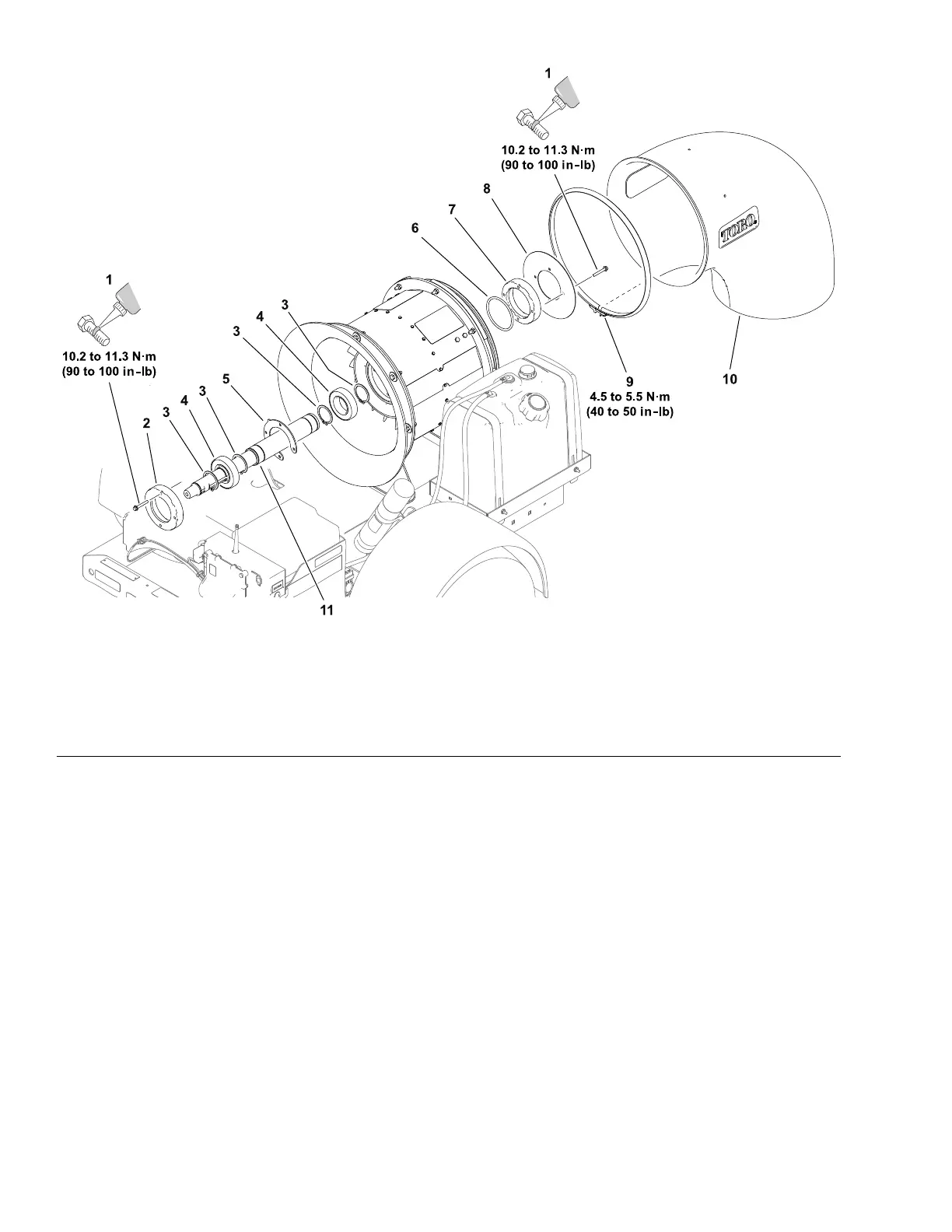

Figure42
1.Flange-headscrew(8each)
5.Endcap9.Nozzleclamp
2.Frontbearingcap
6.O-ring
10.Nozzle
3.Retainingring(4each)
7.Rearbearingcap
11.Rotorshaft
4.Bearing(2each)8.Centerplate
Note:Therotorshaftandbearingscanbeservicedwithoutremovingtheinner
housingfromthemachine.
RemovingtheRotorShaft
RefertoFigure42forthisprocedure.
1.Removetherotorassembly;refertoRemovingtheRotorAssembly(page
6–8).
2.Loosenthenozzleclampfastenersandremovethenozzleclampandnozzle.
3.Removethe4ange-headscrewsthatsecurethefrontbearingcap(item2)
totheinnerhousing.
4.Carefullypulltherotorshaftassemblyfromtheinnerhousing.Therear
bearingcapwillremainintheinnerhousing.Locateandretrievetheend
cap(item4).
5.Removetheretainingringsandbearingsfromtherotorshaft.
6.Removethecenterplateandrearbearingcap,thenremoveanddiscard
theO-ringfromtherearbearingcap.
BlowerAssembly:ServiceandRepairs
Page6–10
ProForce®DebrisBlower
18237SLRevA
