Toro Pro Force 44552TE - Toro Wireless Module (TWM) RF2 CAN (Models 44552, 44552 TE, and 44553)

ToroWirelessModule(TWM)RF2CAN(Models44552,44552TE,
and44553)

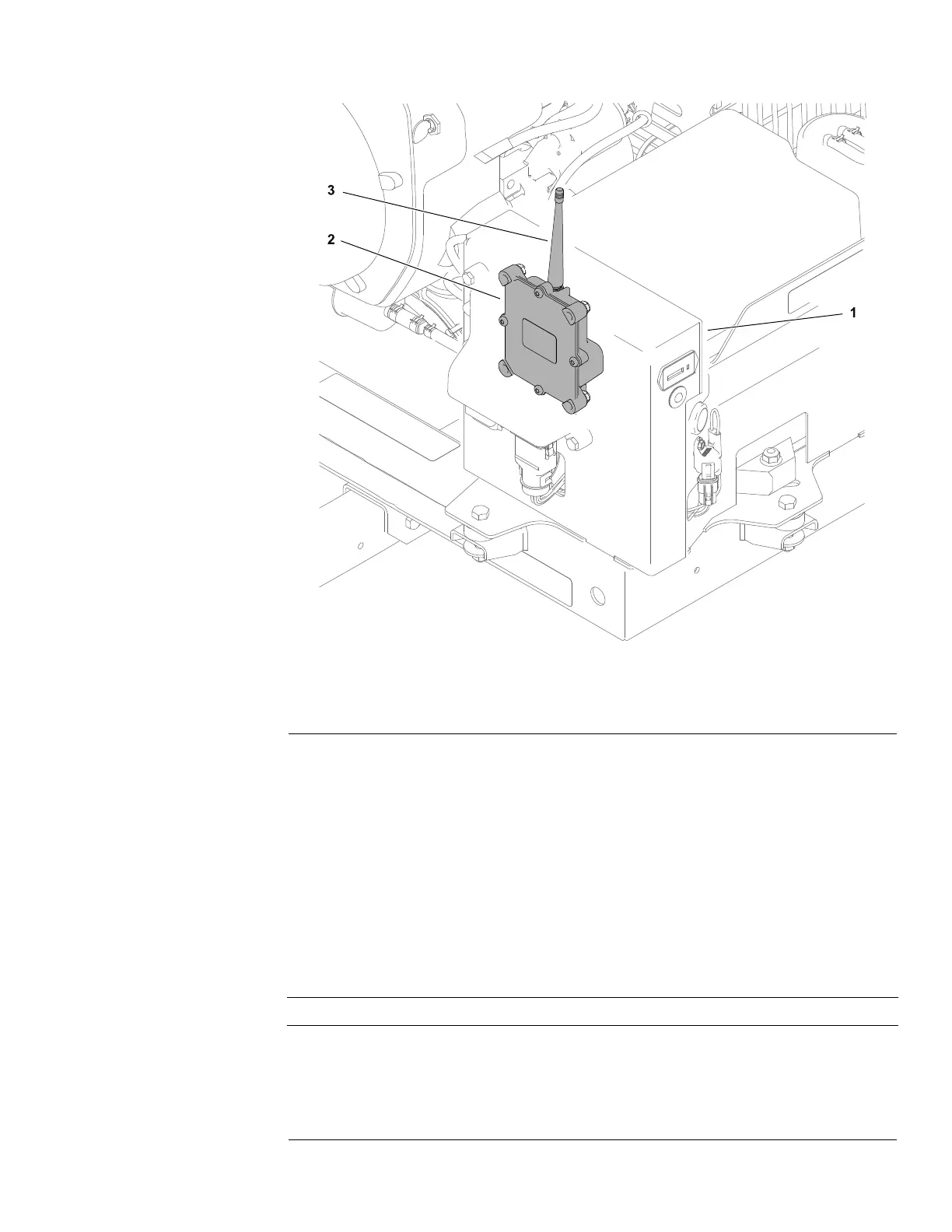

g278908
Figure20
1.Controltower
3.Antenna
2.RF2CANmodule
TheRF2CANmoduleisasolidstateelectricaldeviceusedtoconvertradio
frequencysignalstoandfromthewirelesshandheldremotetoCANsignalsto
andfromtheTEC.TheRF2CANmoduleisonlyactivewhenthekeyswitch
isintheRUNorSTARTposition.TheRF2CANmoduleismountedinsidethe
machinecontroltower.
Note:Machineoperationwillonlybecontrolledbyaremotetransmitterthat
isrecognizedby(associatedto)theRF2CANmodule;refertothemachine
Operator’sManualforadditionalinformation.
Becauseofthesolidstatecircuitrybuiltintothecontrolmodule,thereisno
reliablemethodtotestit.Themodulemaybedamagedifanattemptismadeto
testitwithanelectricaltestdevice(e.g.,digitalmultimeter).
IMPORTANT
Beforeperforminganyweldingonthemachine,disconnectthe
batterygroundcable,wireharnessground,andengineharness
groundatthebaseoftheengine.Thiswillpreventdamagetothe
electricalsystemofyourProForceDebrisBlower.
