RemovingtheEngine(continued)
g277747

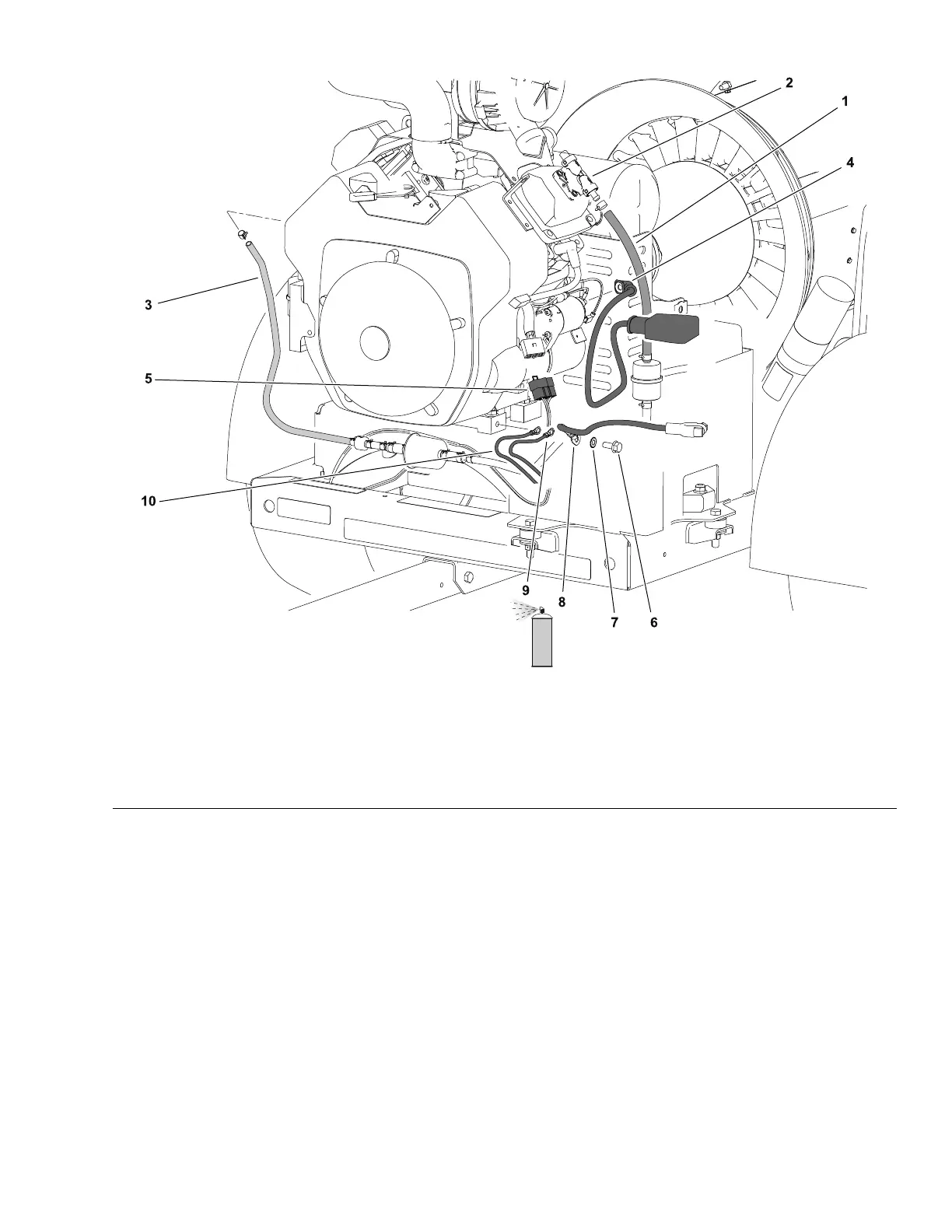

Figure12
1.Fuelsupplyhose5.Multi-pinwireharnessconnector9.Wireharnessground
2.Fuelpump6.Flange-headscrew10.Engineground
3.Fuelevaporativecontrolhose7.Lockwasher
4.Positivebatterycable8.Negativebatterycable
5.Disconnectthefuelevaporativecontrolhoseattheintakemanifold.Cover
orplugthedisconnectedhoseandtheintakemanifoldinlettopreventfuel
evaporativecontrolsystemcontamination.
6.Cleanupanyspilledfuelandpositionthedisconnectedhosesawayfrom
theengine.
7.Disconnectthepositivebatterycablefromthestartermotorstud.
8.Disconnectthemulti-pinwireharnessconnectorfromtheengine.
9.Removethescrewandlockwasherthatsecurethenegativebatterycable,
wireharnessground,andenginegroundconnectortotheengine..
10.Removethebolts,washers,andangenutsthatsecurethedriveshaft
assemblytothehubsontheengineshaftandblowershaft.
11.Liftthedriveshaftassemblyfromthemachineandretrievetherubber
couplingspacers.
12.Removethe4ange-headscrewsand4angenutsthatsecuretheengine
tothechassis.
ProForce®DebrisBlower
Page4–13
Engine:ServiceandRepairs
18237SLRevA
