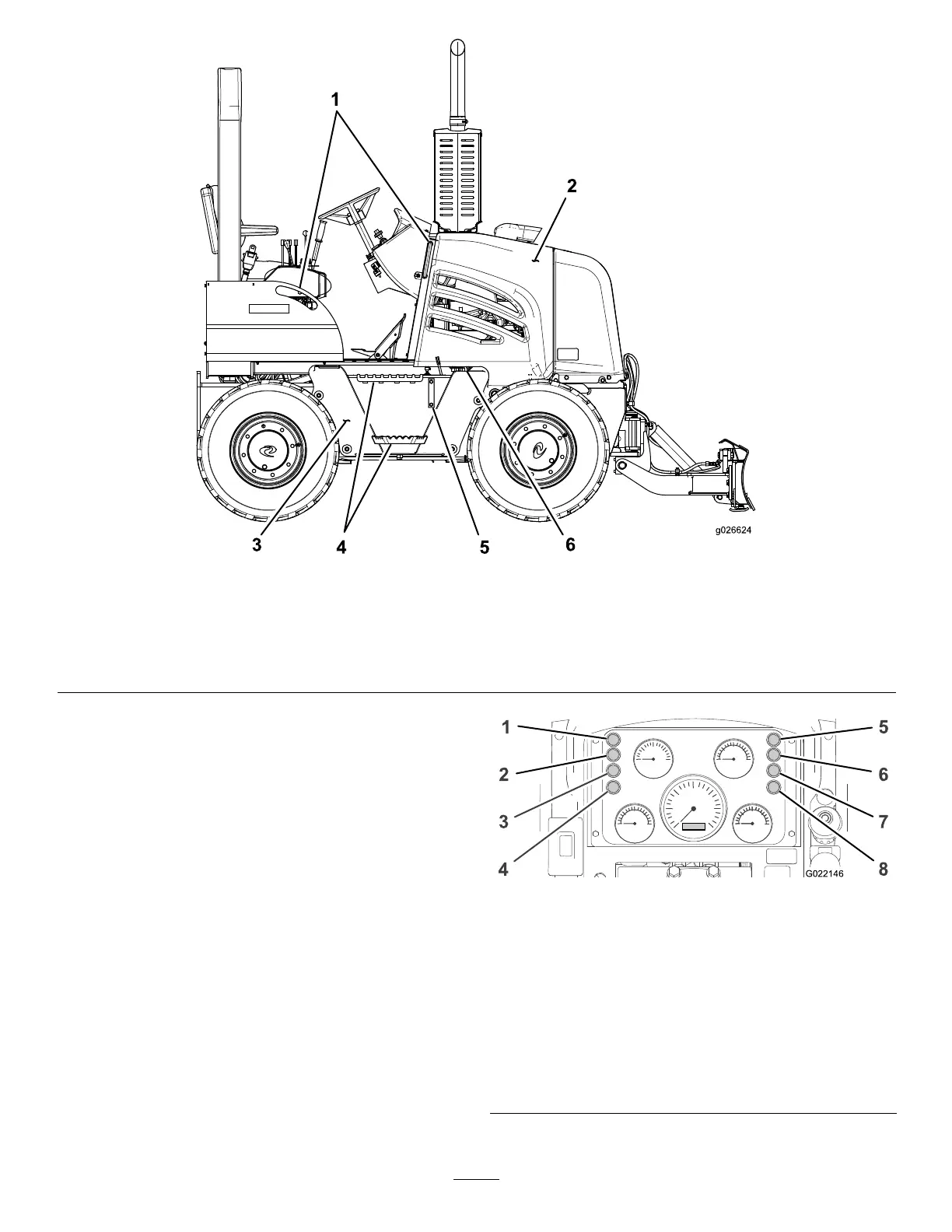

Figure6
Rightsideofmachine
1.Grabhandles4.Steps
2.Rightsidepanel
5.Hydraulicuidsightgauge
3.Hydraulicuidtank
6.Hydraulic-tankcap
Controls
Becomefamiliarwithallthecontrols(Figure7)beforeyou
starttheengineandoperatethemachine.
InstrumentCluster
Thewarningandindicatinglights(excepttheengine-intake
preheatlight)comeonwhenyouturnthekeyswitchtothe
Runpositionbeforeyoustart.
WarningLights
ThelocationsoftheselightsareshowninFigure7.
G022146
7
8
1
6
2
3
4
5
Figure7
InstrumentClusterLights
1.Engine-intakepreheat
light
5.Parking-brakesetlight
2.Restricted
hydraulic-pressurelter
light
6.Controls-in-neutrallight
3.Restrictedair-cleanerlight7.Lowengine-oilpressure
light
4.Restrictedhydraulic-return
lterlight
8.Lowhydraulic-pressure
light
