Toro RT600 - Engine Maintenance; Accessing the Engine; Removing the Side Panels

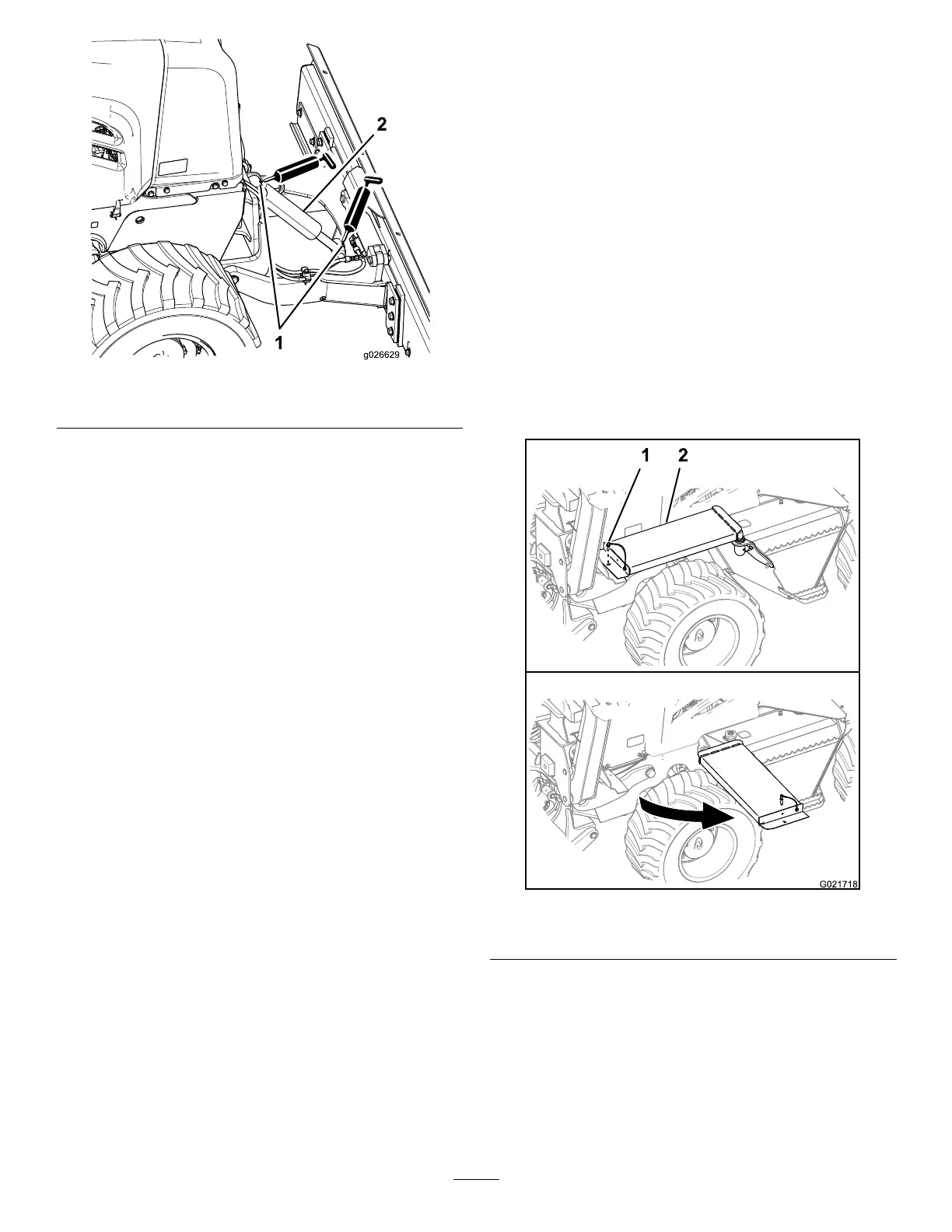

Figure33
1.Greasettings2.Liftcylinder
3.Wipeupanyexcessgrease.
EngineMaintenance
Beforemaintainingtheengine,performthefollowingsteps:
1.Parkthemachineonlevelground,lowerall
attachments,andstoptheengine.
2.Removetheignitionkeyandallowtheenginetocool
for2or3minutes.
AccessingtheEngine
RemovingtheSidePanels
1.Iftheoptionalbackhoeisinstalled,performthe
followingsubstepstoremovetheleftsidepanel;
otherwise,skiptostep2:
A.Attheleftsideofthemachine,removethe
retainingpinfromthefrontendofthewalkway
(Figure34).
Figure34
1.Retainingpin2.Walkway
B.Pivotthewalkwayawayfromthemachineas
showninFigure34.
2.Pulluponthehandgripofthepanellatch,andswing
thelatchfreefromtheanchorbracket(Figure35).
35
