Toro TimeCutter SW/SWX Service Manual
7
PTO Clutch Replacement
PTO Clutch Removal
1. Remove PTO belt and disconnect the harness
connection from the PTO clutch.
2. Remove PTO clutch bolt (A) and washer.
3. Remove PTO clutch (B), drive belt and engine pulley
(C) from the engine crankshaft (both clutch types
shown).
PTO Clutch Installation
1. Clean engine crankshaft.
2. Apply anti-seize to engine pulley shaft ends and
install engine pulley (C) onto crankshaft.
3. Install drive belt.
4. Install PTO clutch onto engine crankshaft. Be sure
anti–rotation bracket is properly aligned.
5. Apply Loctite
®
242 to PTO clutch bolt. Install PTO
clutch washer and bolt (A).
6. Torque PTO clutch mounting bolt to 55 ft-lbs.
(75 Nm).
7. Install the PTO belt and connect the harness
connection to the PTO clutch.
8. Safely verify PTO function.

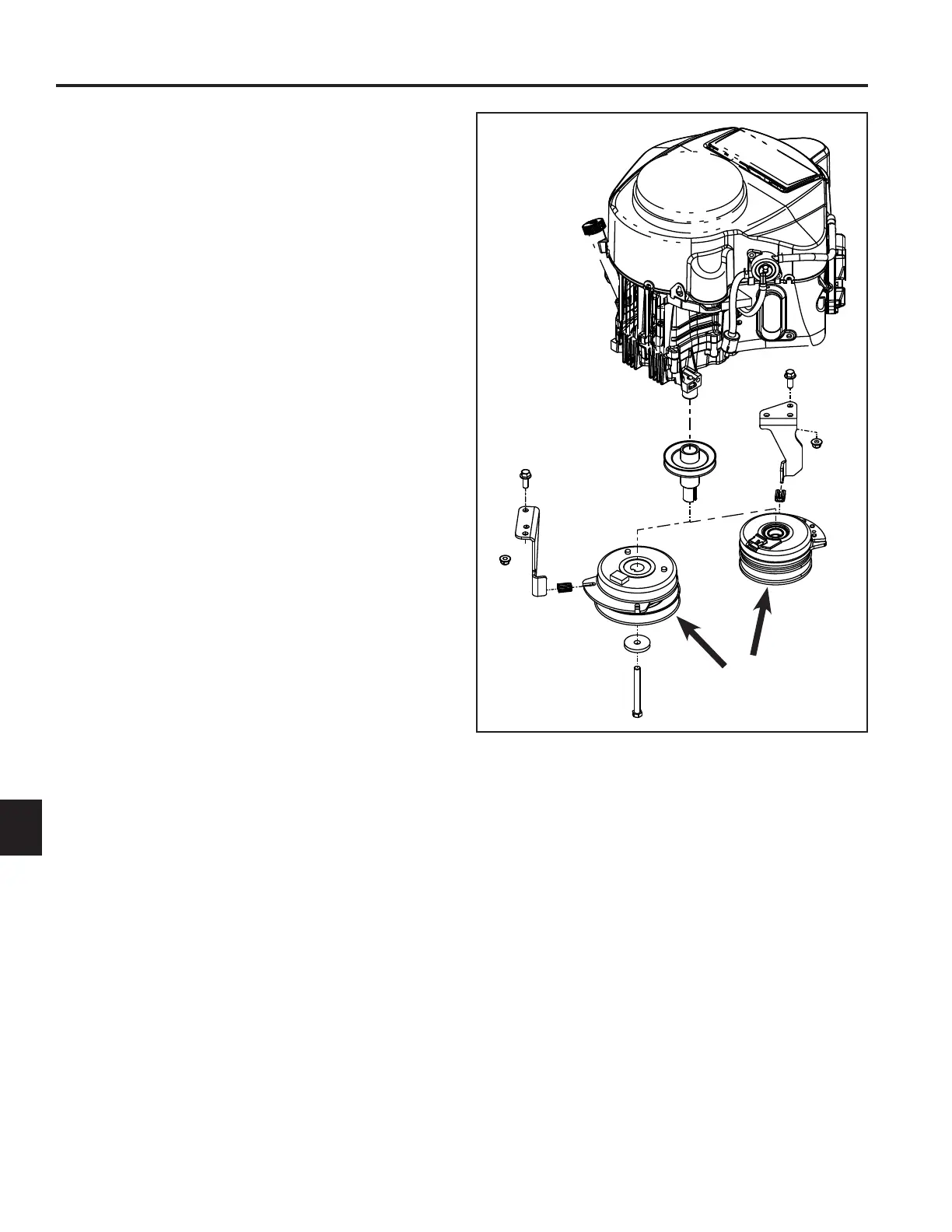

(Fig. 173)
