Toro TimeCutter SW/SWX Service Manual
3

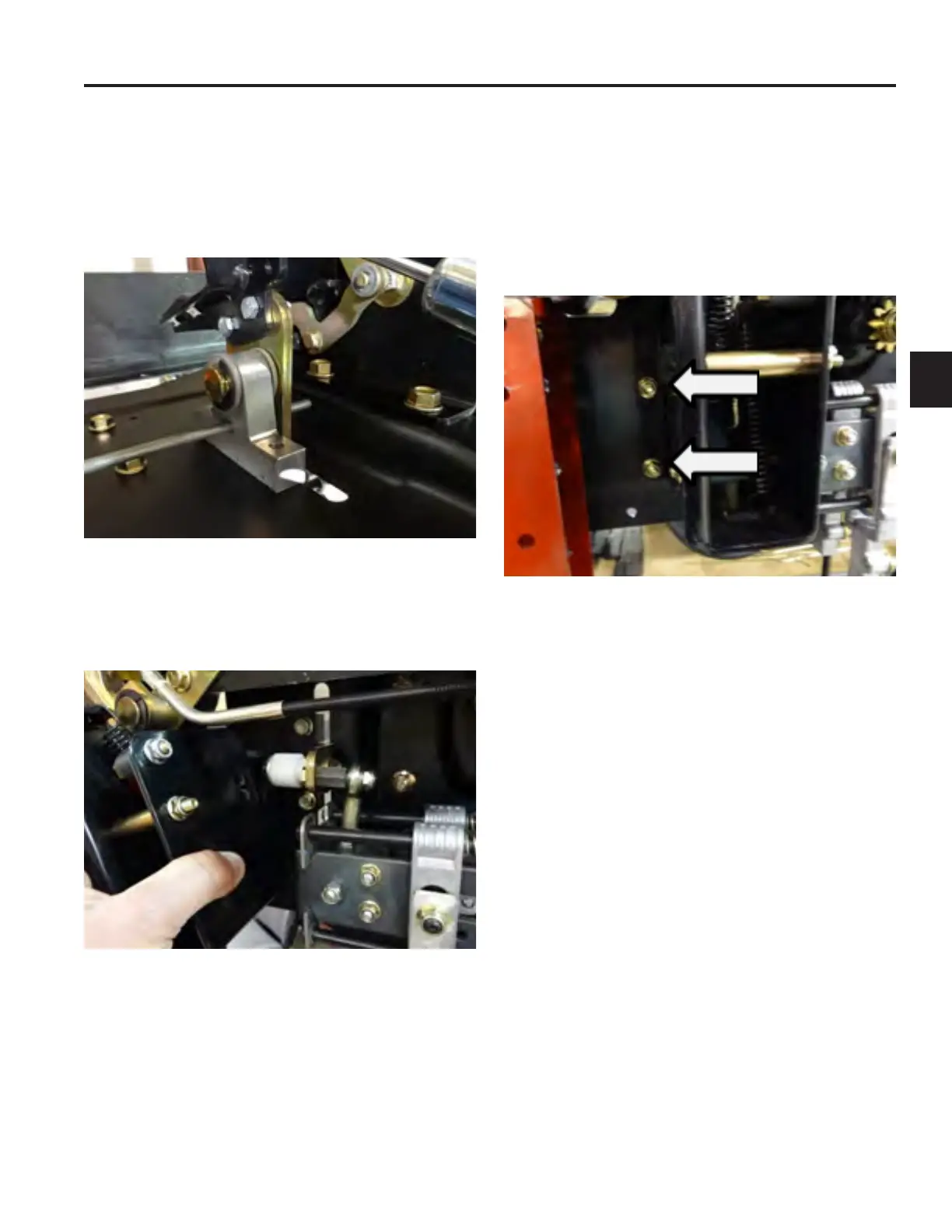

RETURN TO NEUTRAL ASSEMBLY - ZERO TURN TRACTOR
2. Re-connect the switch connectors to the
switches. Slide the assembly into position, then
place the roller between the switch arms.
3. Install the two mount bolts and torque to 150-200
in-lbs. (11.5-17 Nm). Ensure the switch arms
can move freely and do not bind.
Return to Neutral Assembly Installation
1. Insert a 1/4 in. dowel pin through the hole on the
pedal mount and into the foot pedal assembly.
This ensures the foot pedal is in the neutral
position.

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
