MOWER DECK
6-9
Toro Timecutter SS/MX/ZS Service Manual
6
Mower Deck Replacement
Mower Deck Removal
1� Park the unit on a level surface and disengage the
PTO switch�
2� Move the motion control levers outward to the park
position, stop engine, remove key, and wait for all
moving parts to stop before leaving the operating
position�
3� Set the height-of-cut to the lowest position�
4� Remove the retaining clip from the front support rod�
Remove the rod from the deck bracket (Fig� 099)�
Carefully lower the front of the deck to the ground�

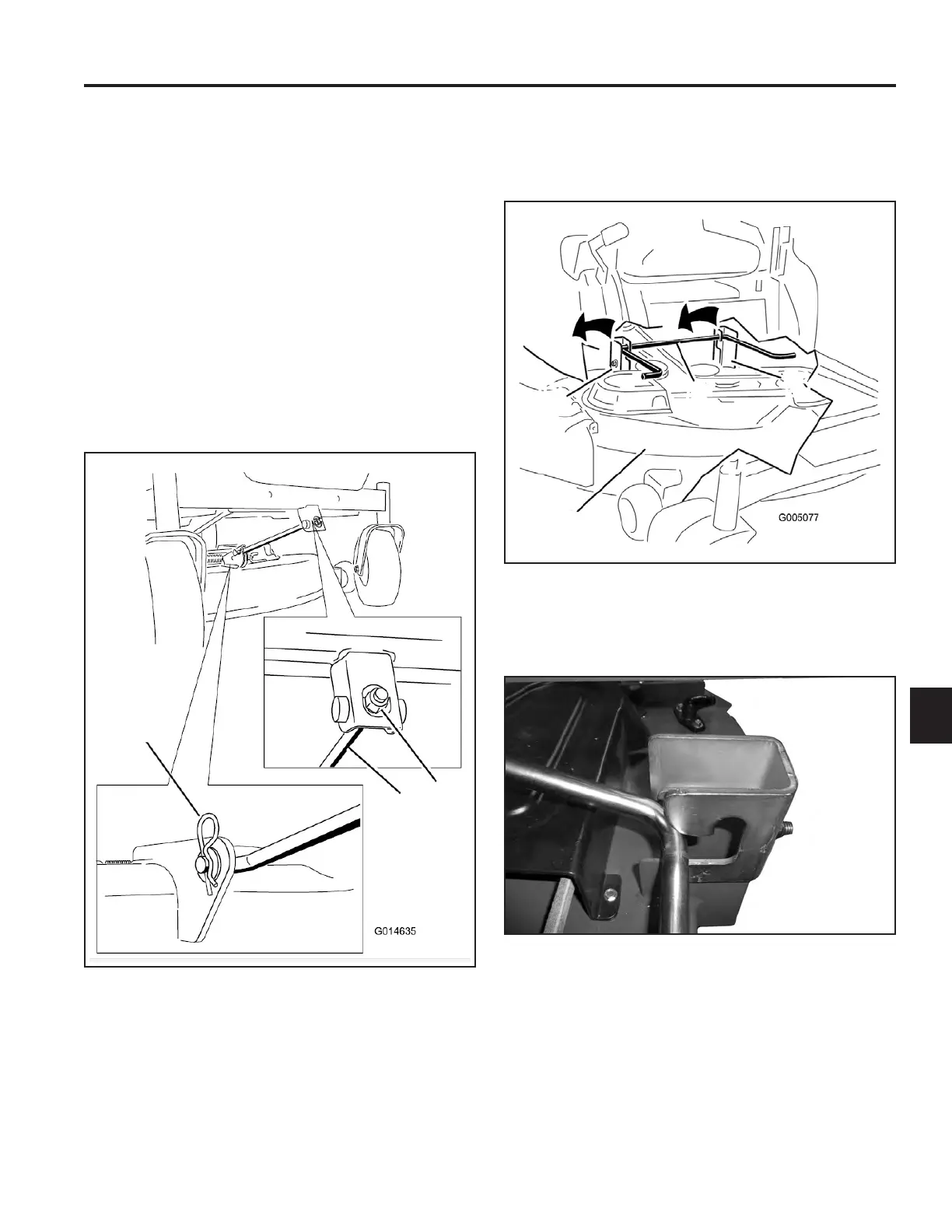

Fig. 099 g.60G014635
A� Front support rod C� Retaining clip
B� Locking nut
A
B
C
Fig. 101 PICT-1053a
Fig. 100 g.61G005077
5� Using the deck handles, lift the mower deck so the
hanger brackets clear the rear lift rod� Lower the
mower carefully to the ground (Fig� 100 and Fig�
101)�
A� Deck C� Rear lift rod
B� Hanger brackets
A
B
B
C
