MOWER DECK
6-15
Toro Timecutter SS/MX/ZS Service Manual
6
Idler Arm/Deck Belt Tensioner Service

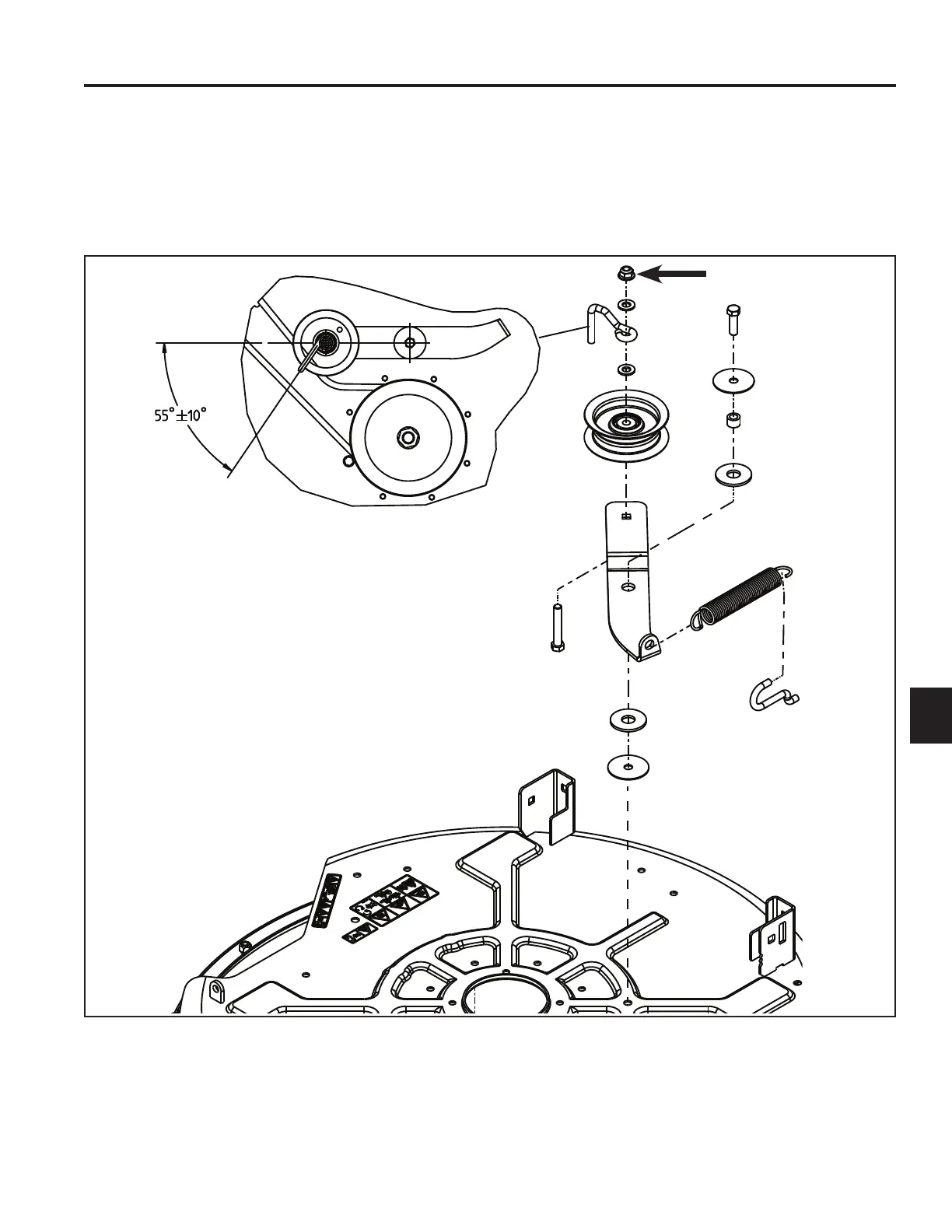

Idler Arm/Tensioner Exploded Views
32 Inch Stamped Deck
(Fig� 111)
Fig. 111 PICT-1074
A� Washer C� Spacer
B� Friction washer D� 30 ft-lbs� (40 Nm)
(composite)
D
D
A
C
B
B
A
