Toro TimeCutter SW4200 - Toro Timecutter SS;MX;ZS Service Manual

MOWER DECK
6-5
Toro Timecutter SS/MX/ZS Service Manual
6

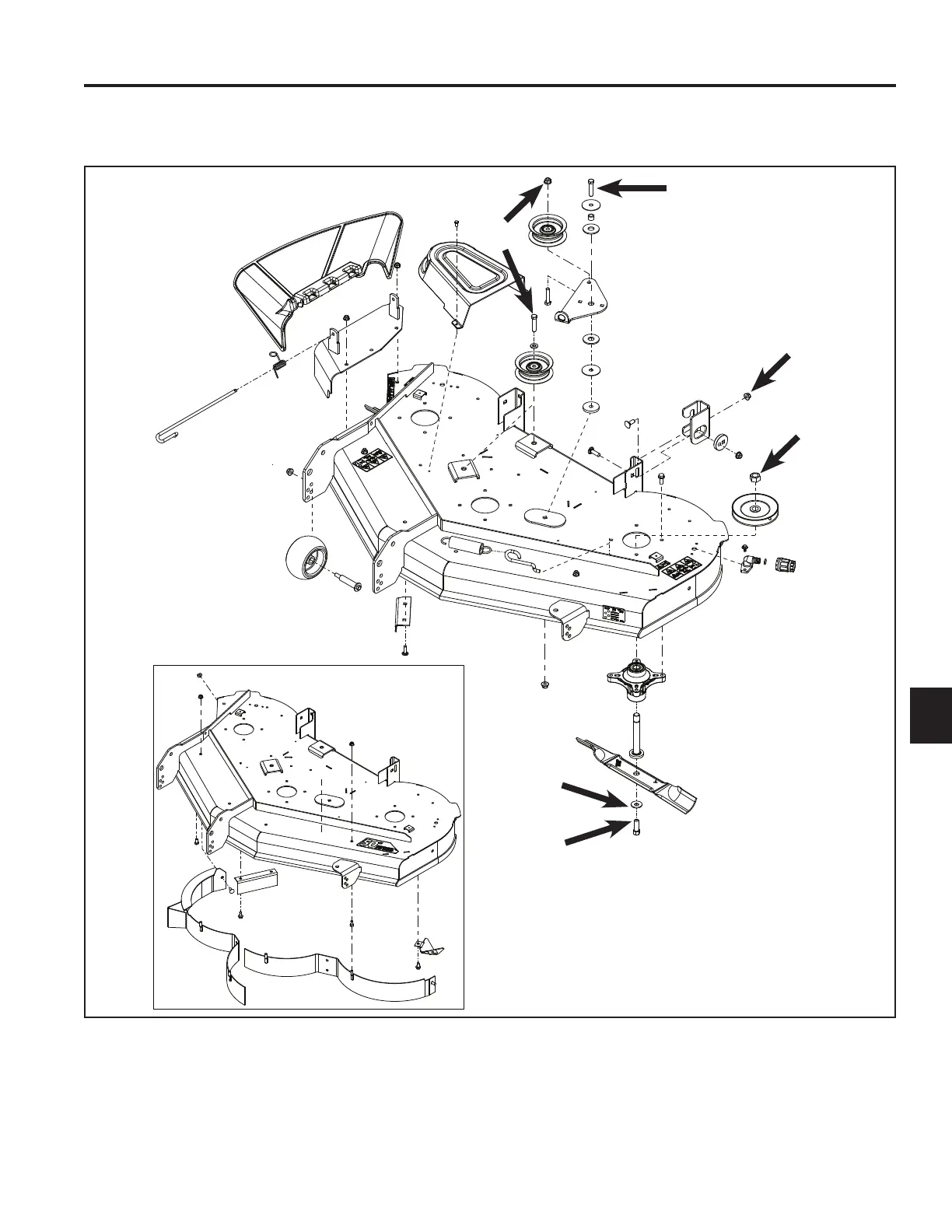

Fig. 093 PICT-1059 50F
50 Inch Fabricated Deck
(Fig� 093)
A� Blade bolt - 55 ft-lbs� (76 Nm)
B� Washer - concave side towards blade
C� Pulley nut - 55 ft-lbs� (76 Nm)
D� 30 ft-lbs� (40 Nm)
E� Spindle housing-to-deck bolts (12)-17 ft-lbs� (23 Nm)
ZS Models Only
A
B
D
D
D
C
