CHASSIS
3-3
Toro TimeCutter SW/SWX Service Manual
3
Caster Wheel / Bushing Service
Caster Wheel / Bushing Disassembly
1. Safely raise and support unit so front wheels are off
the ground.
2. Support under caster wheel and remove the nut /
bolt (A).
3. Remove and inspect wheel spanner (B). Replace if
excessively worn.
4. Using an appropriate punch, remove the (2)
bushings (C) from the wheel hub. Inspect bushings
and replace if excessively worn.
5. Properly clean and inspect the front wheel hub area.
Caster Wheel / Bushing Assembly
1. Lightly lubricate bushings (C) and wheel spanner (B)
with No. 2 general-purpose lithium base grease. Fill
center of wheel hub with grease.
2. Install the (2) bushings (C) into front wheel hub,
making sure they are fully seated.
3. Install wheel spanner (B) into the front wheel
assembly.
4. Install front wheel assembly into the front caster.
5. Install the nut / bolt (A) and torque nut to
specication - 35 ft-lbs. (47 Nm).
6. Lubricate bushings / spanner through grease tting
with No. 2 general-purpose lithium base grease.
7. Safely lower unit and verify proper function.
(Fig. 008)

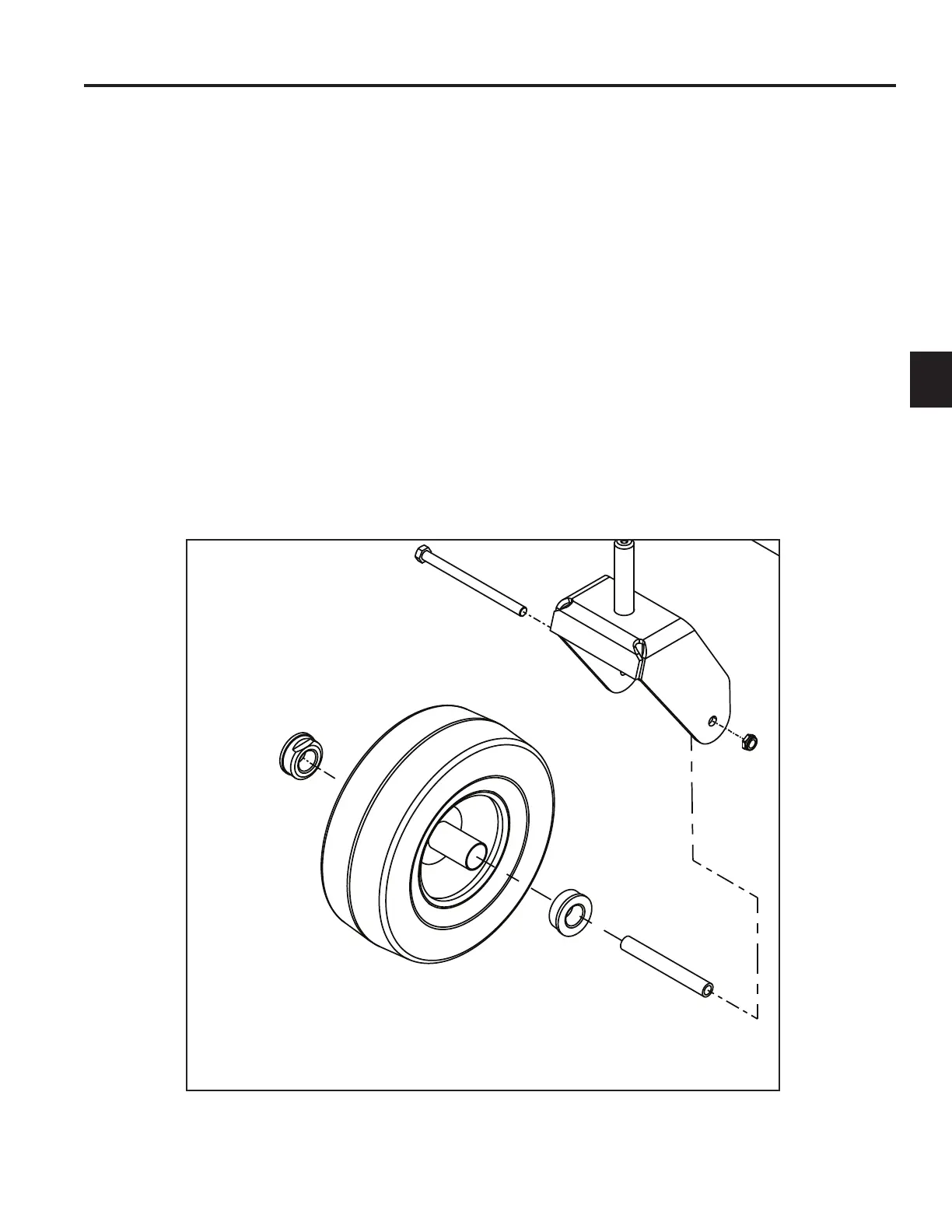

Fig. 008 PICT-1037
A
B
C
