SPECIFICATIONS
2-4
Toro TimeCutter SW/SWX Service Manual
2
Hydro-Gear ZT-2100, ZT-2200 Hydrostatic Transaxles

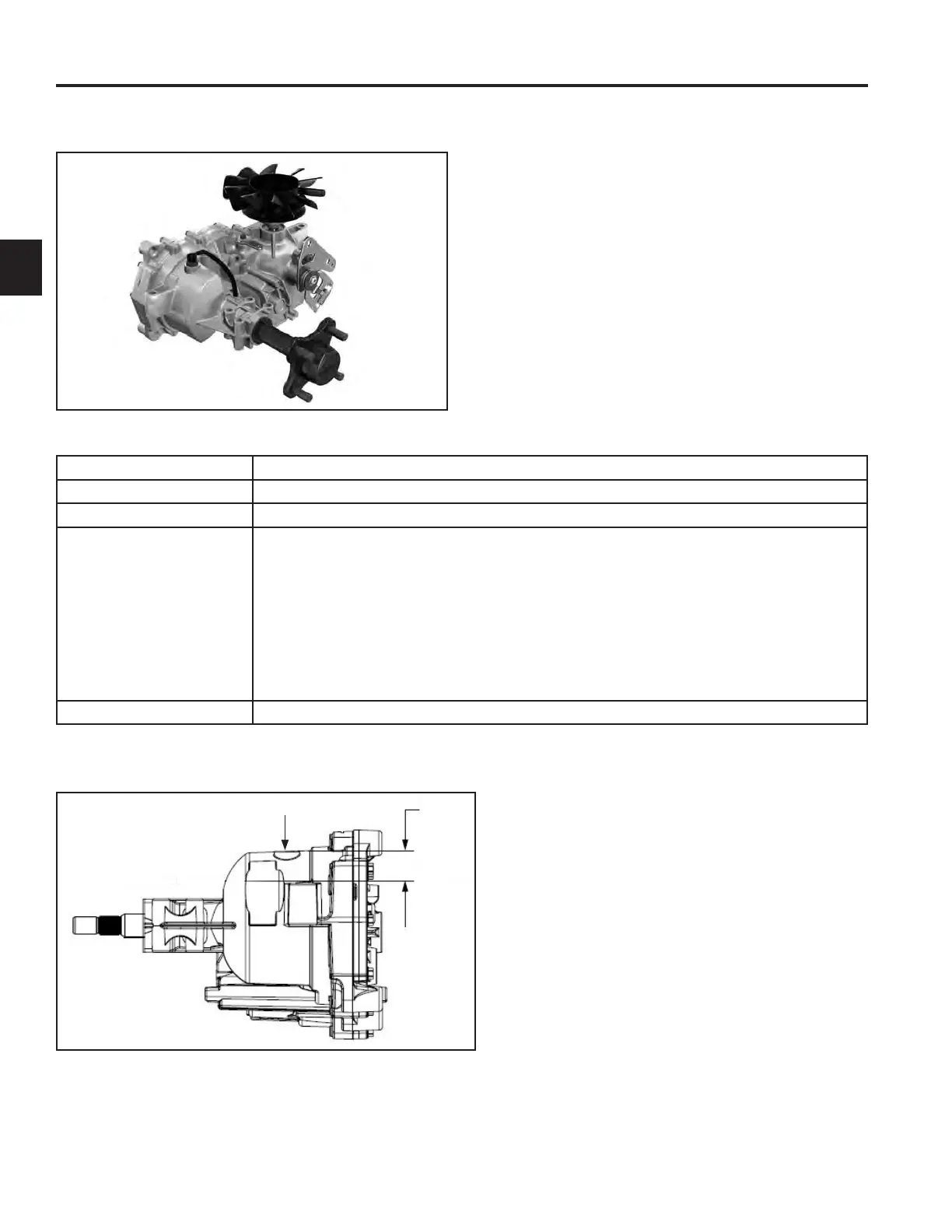

Fig. 001 PICT-1000
Lubrication 20w50 Engine Oil
Oil Capacity ZT-2100 54 . oz. / 1.687 qt. (1597ml) each
Oil Capacity ZT-2200 56 . oz. / 1.75 qt. (1650ml) each
Oil Level Check The transaxle is a sealed system and does not require periodic checking.
Check oil at the oil ll plug location only. Do not check the oil at the vent tube.
If the oil level needs to be checked, the transaxle must be removed.
The oil level must be when the transaxle is COLD.
Please see the illustration below for uid level specications.
Fluid Change Interval The transaxle is factory lled and does not require regular oil changes.
A. Top of ll port C. 0.75”-1.50” (19-38mm) depth
B. Oil level at 50°-100° F (10°-38° C)
D. Fill port
Checking the Hydraulic Oil Level
Fig. 002 PICT-1001a
A
D
C
B
