Toro TimeCutter SW4200 User Manual

CHASSIS
3-19
Toro TimeCutter SW/SWX Service Manual
3
CZN0004a

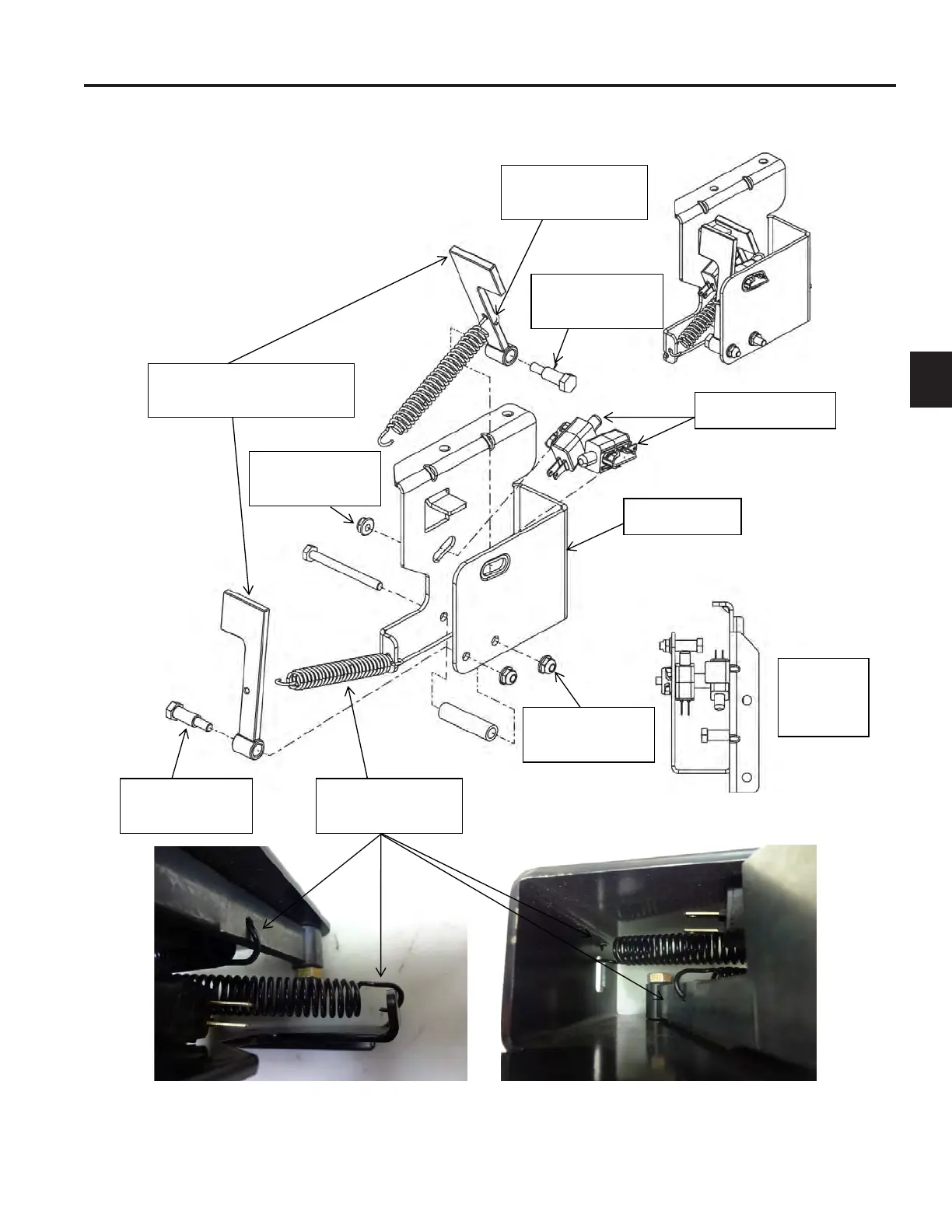

RETURN TO NEUTRAL ASSEMBLY – ZERO TURN TRACTOR
Switch bracket
Switch, single pole
Switch arm – These must
move freely after installation
Torque to 100 in-
lbs (11.5 Nm)
Torque to 100 in-
lbs (11.5 Nm)
Apply anti-seize
to this surface.
Apply anti-seize
to this surface.
Spring should be
oriented as shown.
Spring should be
oriented as shown.
Switch
orientation
(top view)

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
