Toro TimeCutter SW/SWX Service Manual
3
FRONT SHROUD - ZERO TURN TRACTOR

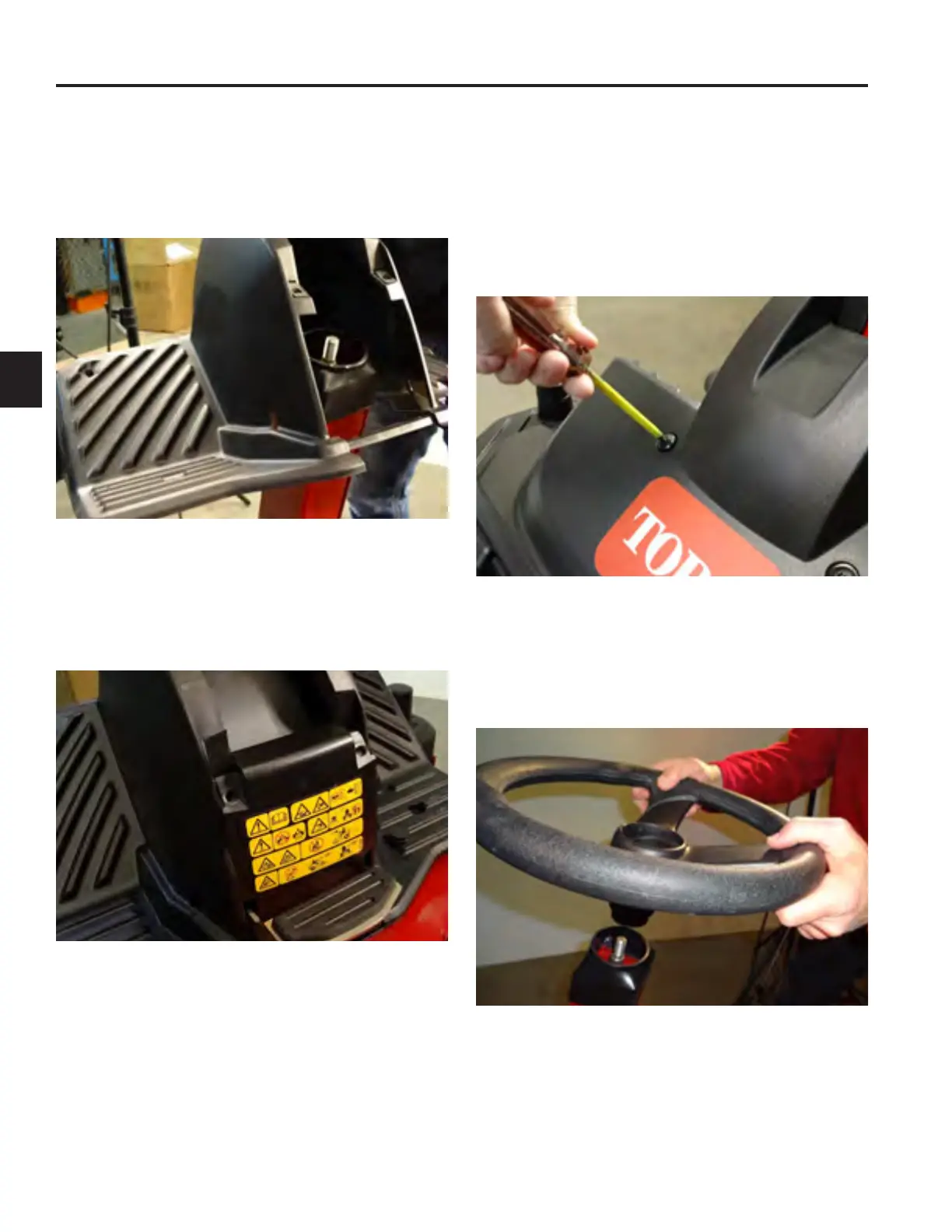

Front Shroud Installation
1. Slide the shroud down on the steering shaft and
set into place.
2. Install the rear cover.
3. Install the T-30 Torx screws on the shroud.
Torque to 80-100 lbs (9-11 Nm).
4. Place the steering Wheel onto the splined
steering shaft.
Note: Make sure the front caster wheels
are in the straight position and the steering
wheel is also straight.

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
