Toro TimeCutter SW4200 User Manual

CHASSIS
3-11
Toro TimeCutter SW/SWX Service Manual
3
FRONT SHROUD - ZERO TURN TRACTOR

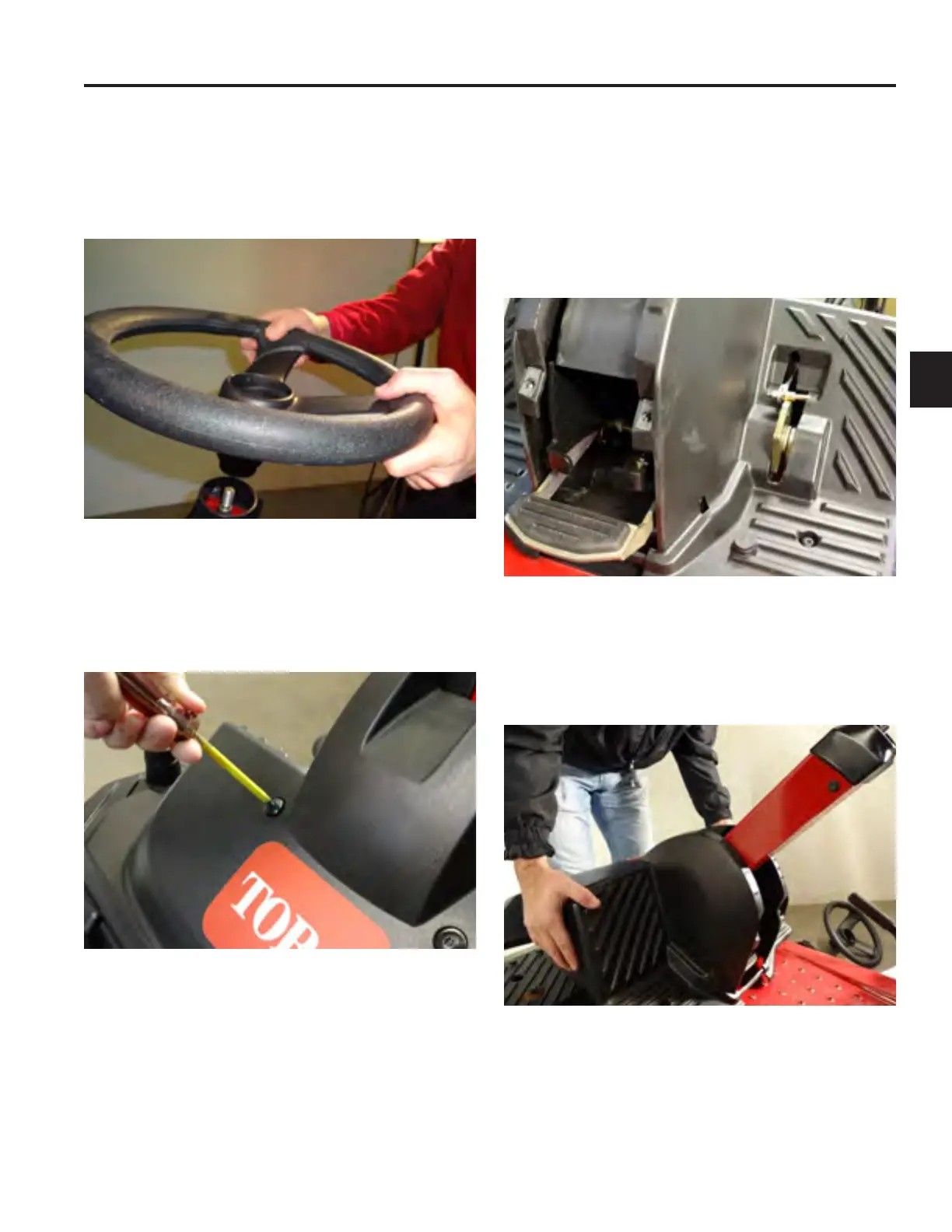

5. With the heel of your hand or soft tapping from a
soft mallet, tap the steering wheel until it comes
loose from the splined steering shaft. Remove
the nut and remove steering wheel.
6. Remove the T-30 Torx screws holding the
shroud on.
7. Remove the rear cover.
8. Fold the steering column all the way into the
down position. Slide front shroud up and off the
steering column.

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
