CHASSIS
3-7
Toro TimeCutter SW/SWX Service Manual
3
Seat Pivot Service
Seat Pivot Removal
1. Raise seat and disconnect battery terminals.
2. Disconnect the seat switch harness connection and
remove seat switch harness from the routing clip on
the seat base.
3. Remove the washer and retaining clip, then remove
the seat stop assembly (B).
4. Remove the retaining clips and the seat pivot rod /
seat stop rod (C).

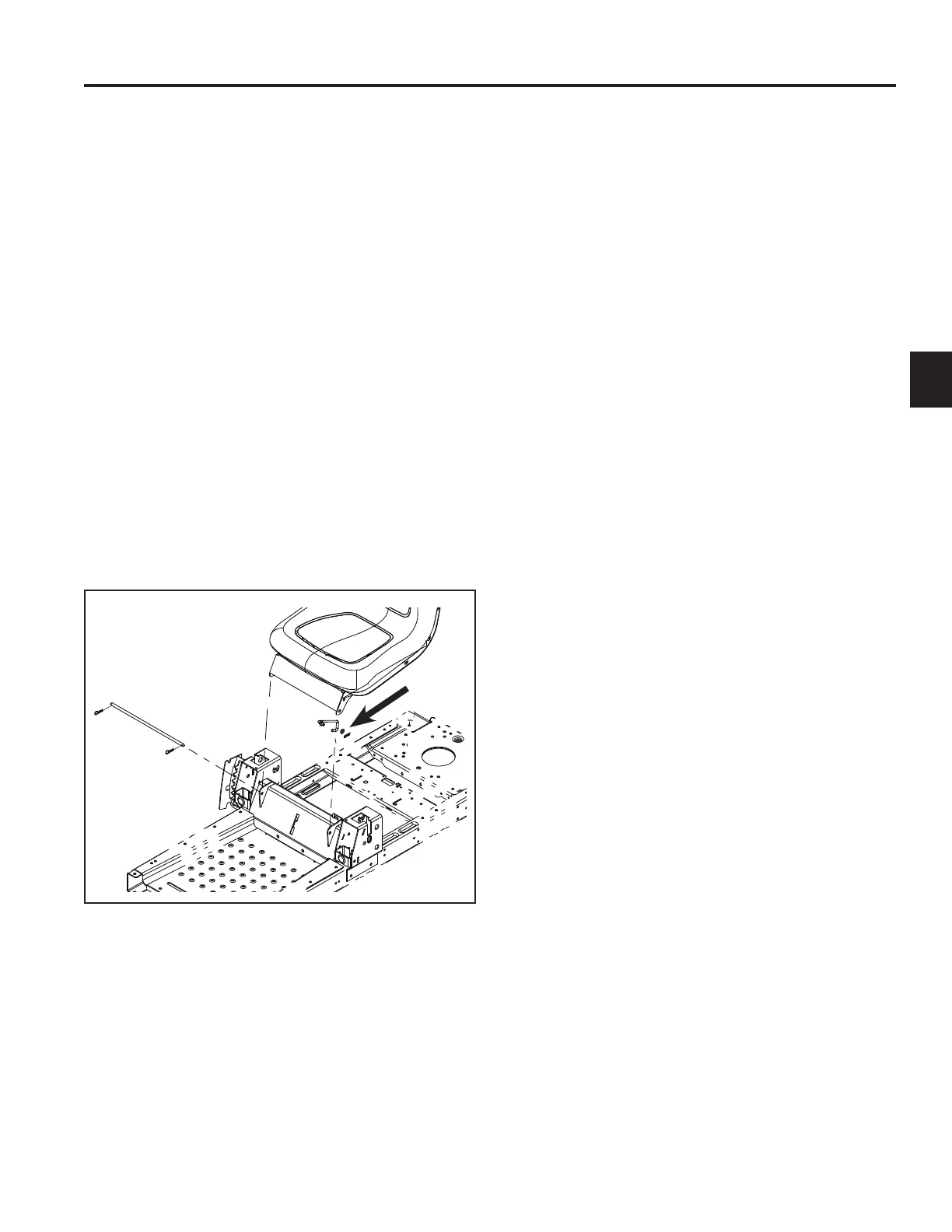

5. Remove the seat assembly from the unit (Fig. 016).
Fig. 016 PICT-1043
B
C

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
