CHASSIS
3-25
Toro TimeCutter SW/SWX Service Manual
3

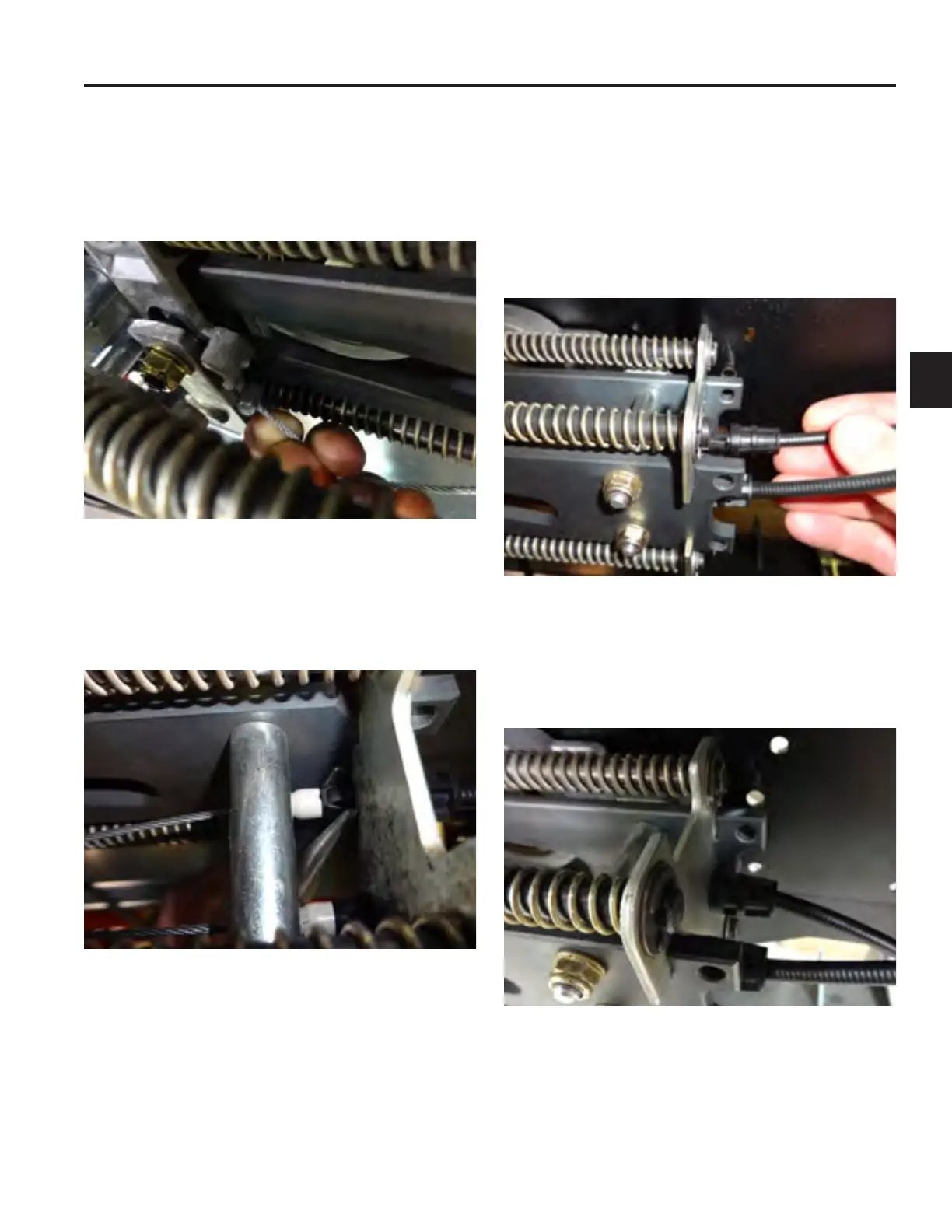

4. Remove the barrel end of the cable from the
speed control assembly.
5. Using a needle-nose pliers, pinch the cable locks
together.
6. Slide the cable out of the speed control
assembly.
Cable Replacement
1. Slide the new cable through the hole in the
speed control assembly and lock the cable in
place.
SPEED CONTROL ASSEMBLY - ZERO TURN TRACTOR

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
