HYDROSTATIC DRIVE SYSTEM
5-12
Toro TimeCutter SW/SWX Service Manual
5

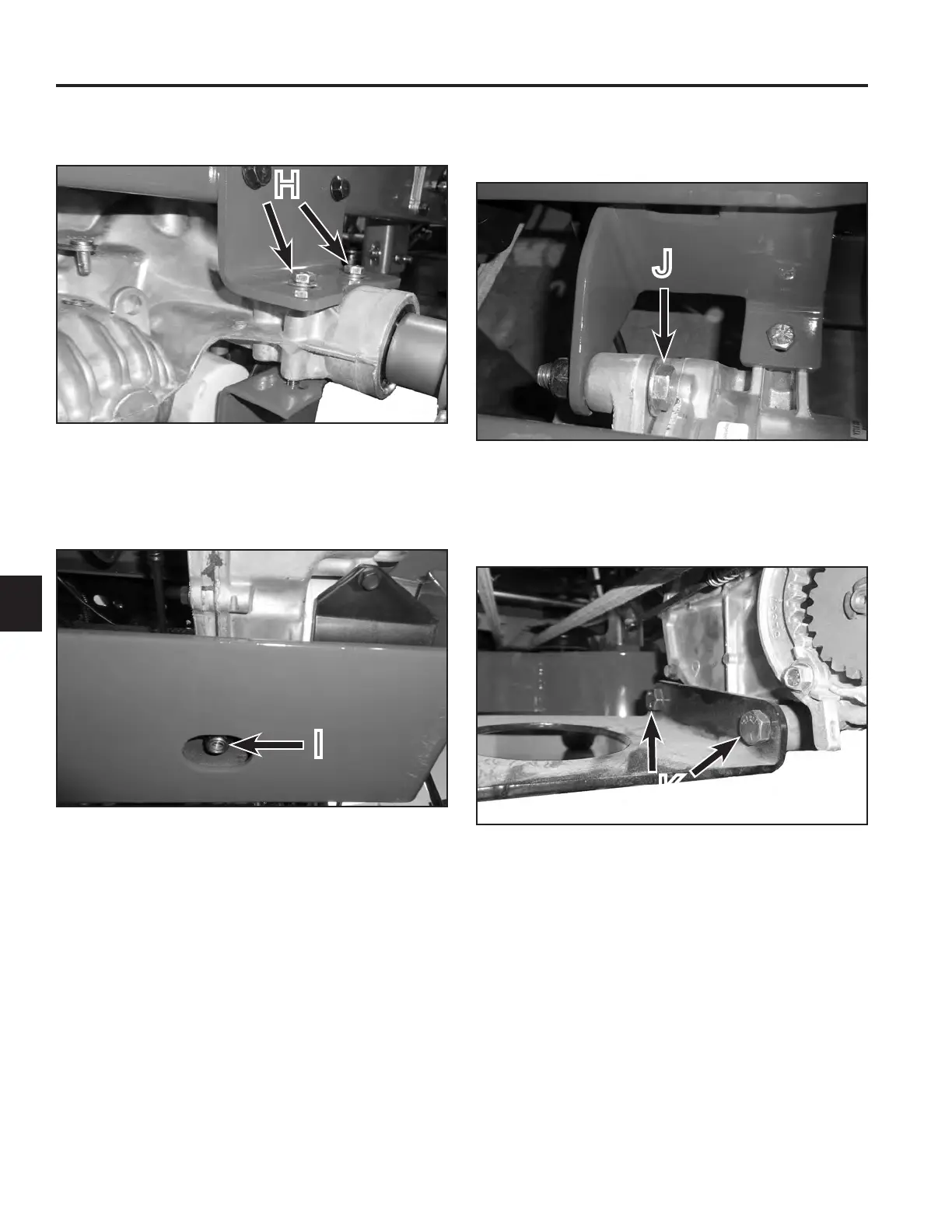

4th - Torque fasteners (H) to specication – 17 ft-lbs.
(23 Nm) (Fig. 074)
Fig. 074 PICT-1107
5th - Torque the two fasteners (I) to specication –
30 ft-lbs. (40 Nm) (Fig. 075)
Fig. 075 PICT-1108
H
I
2nd - Torque the (4) fasteners (K) to specication –
50 ft-lbs. (69 Nm) (Fig. 077)
Fig. 077 PICT-1109
Fig. 076 PICT-1098
Narrow Frame:
1st - Torque fastener (J) to specication – 50 ft-lbs.
(69 Nm) (Fig. 076)
J
K

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
