Toro TimeCutter SW4200 User Manual

MOWER DECK
6-7
Toro Timecutter SS/MX/ZS Service Manual
6

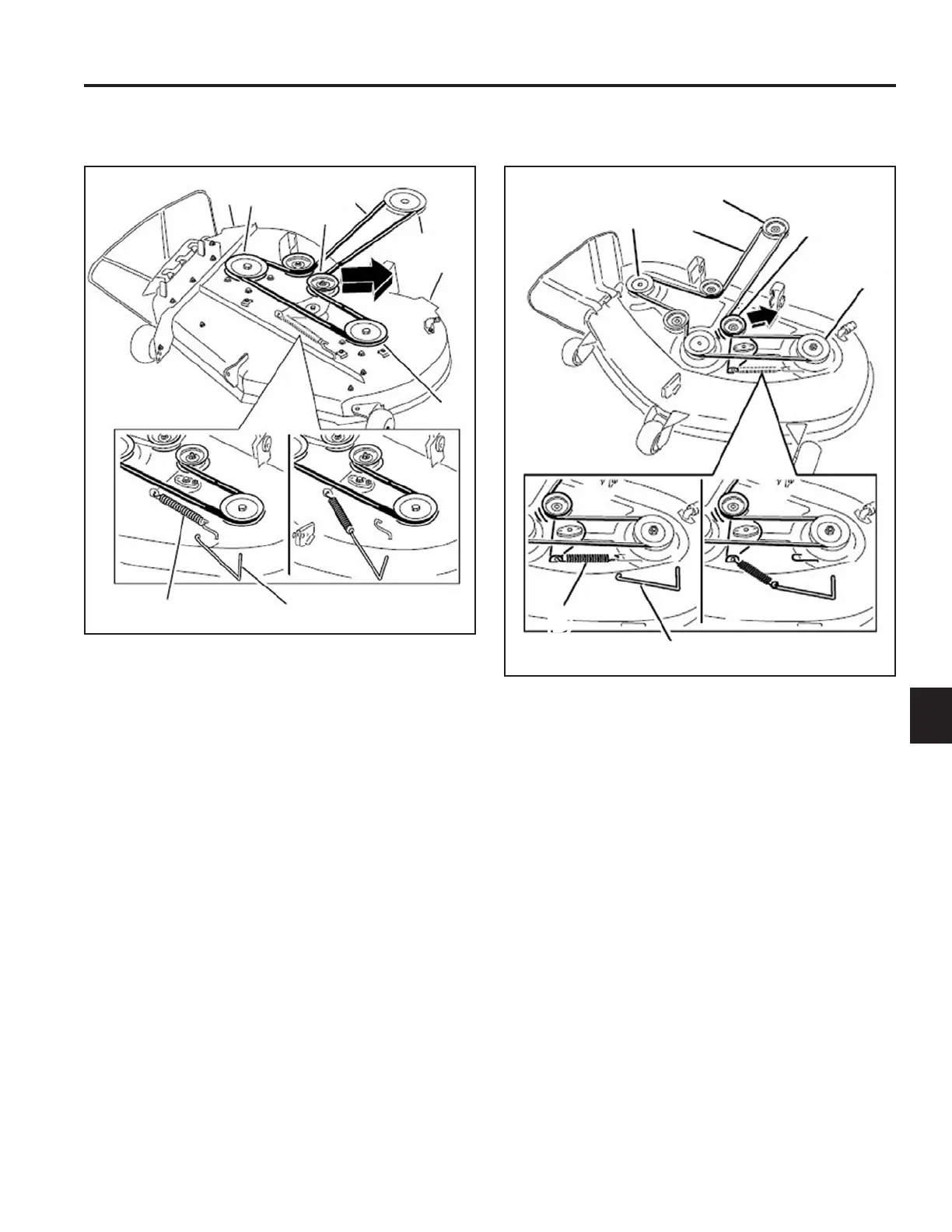

Fig. 096 PICT-1063a
50 Inch Stamped Deck
(Fig� 097)
Fig. 097 PICT-1064a
42 Inch Fabricated Deck
(Fig� 096)
A� Idler pulley E� Engine pulley
B� Deck belt F� Spring tool
C� Spindle pulley G� Deck handles
D� Spring
A
C
D
C
E
G
G
F
B
A
B
E
F
D
C
C
A� Idler pulley D� Spring
B� Deck belt E� Engine pulley
C� Spindle pulley F� Spring tool

Toro TimeCutter SW4200 Specifications

General

Cutting Width	42 inches
Fuel Capacity	3 gallons
Transmission	Hydrostatic
Cutting Height	1.5 to 4.5 inches
Warranty	3-year limited
Type	Zero-turn riding mower
