MOWER DECK
6-17
Toro Timecutter SS/MX/ZS Service Manual
6

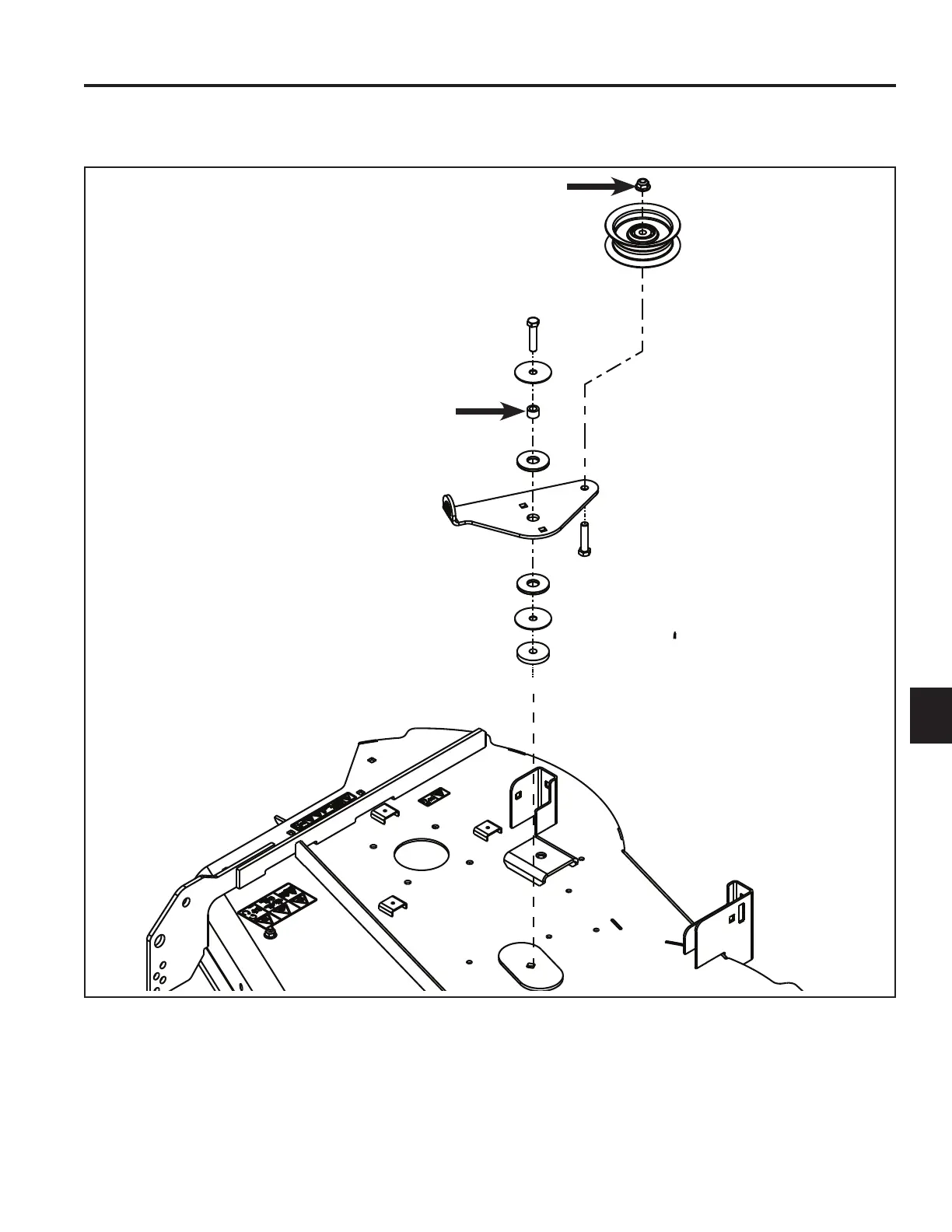

Fig. 113 PICT-1076
42 Inch Fabricated Deck
(Fig� 113)
A� Washer D� Spacer
B� Washer (thick) E� 30 ft-lbs� (40 Nm)
C� Friction washer
(composite)
E
D
E
A
C
C
A
B
