Toro TX 1300 - Removing Attachment and Smart Load System; Removing an Attachment; Understanding the Smart Load System

RemovinganAttachment
1.Parkthemachineonalevelsurface.
2.Lowertheattachmenttotheground.
3.Shutofftheengineandremovethekey.
4.Disengagethequick-attachpinsbyturningthem
totheoutside.
g003711

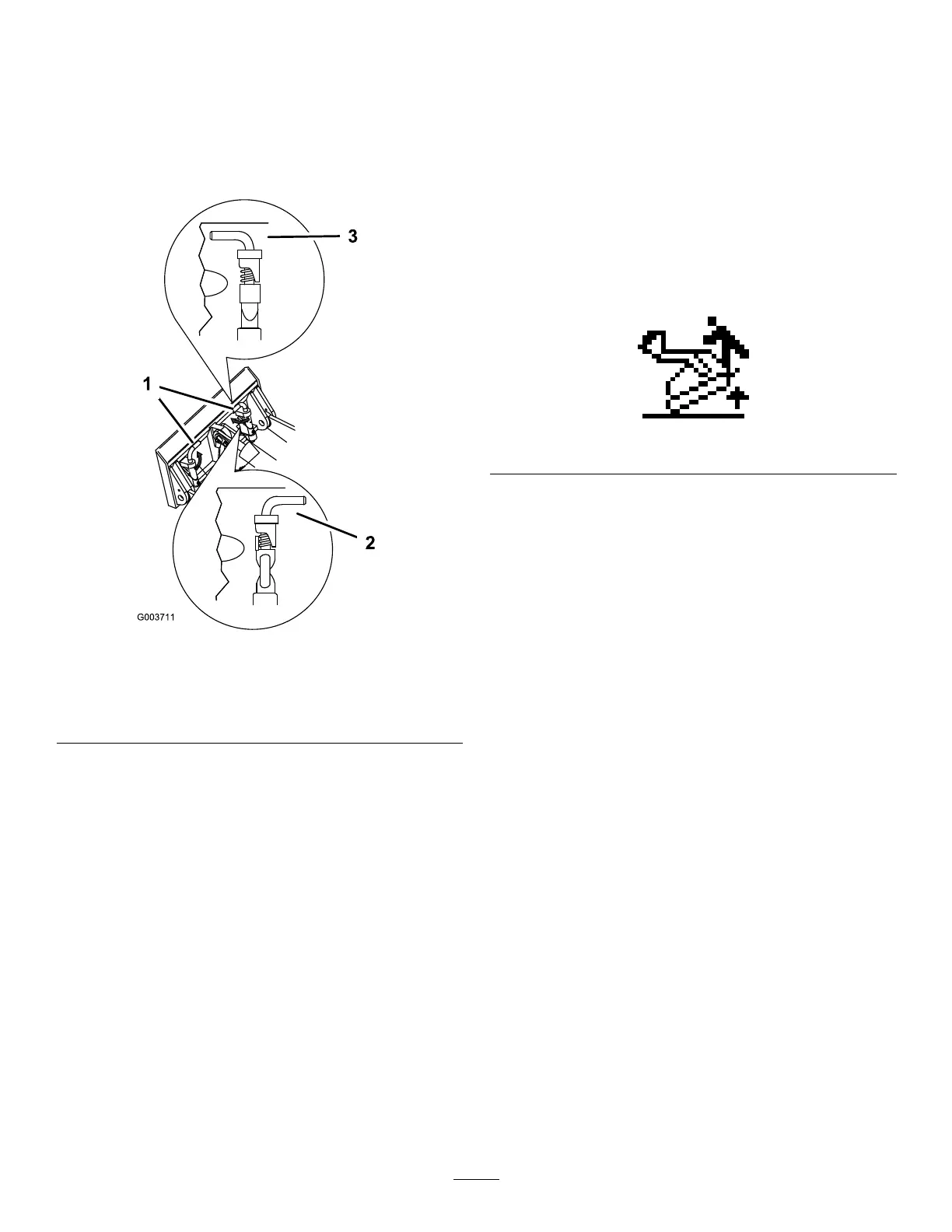

Figure22
1.Quick-attachpins
(engagedposition)
3.Engagedposition
2.Disengagedposition
5.Iftheattachmentuseshydraulics,slidethe
collarsbackonthehydrauliccouplersand
disconnectthem.
Important:Connecttheattachmenthoses
togethertopreventhydraulicsystem
contaminationduringstorage.
6.Installtheprotectivecoversontothehydraulic
couplersonthemachine.
7.Starttheengine,tiltthemountplateforward,and
backthemachineawayfromtheattachment.
UnderstandingtheSmart
LoadSystem
TheSmartLoadsystemalsomeasuresthehydraulic
pressureintheloaderarmcylinderstodeterminethe
maximumreach.
Whenyouextendtheloaderarmstothemaximum
reachforthearmheightandloadweight,the
InfoCenterwilldisplaytheSmartLoadiconandash
theindicatorlight,analarmwillbeep,andthearms
willstopextending.
Toextendtheloaderarmsfurther,lightentheload.
g270732
Figure23
