RemovingtheFrontCover
Assembly
1.Raisetheloaderarmsandsecurethemwiththe
cylinderlocks.
2.Openthehood.
3.Removethe4boltssecuringthecoverassembly
tothemachine.
g363210

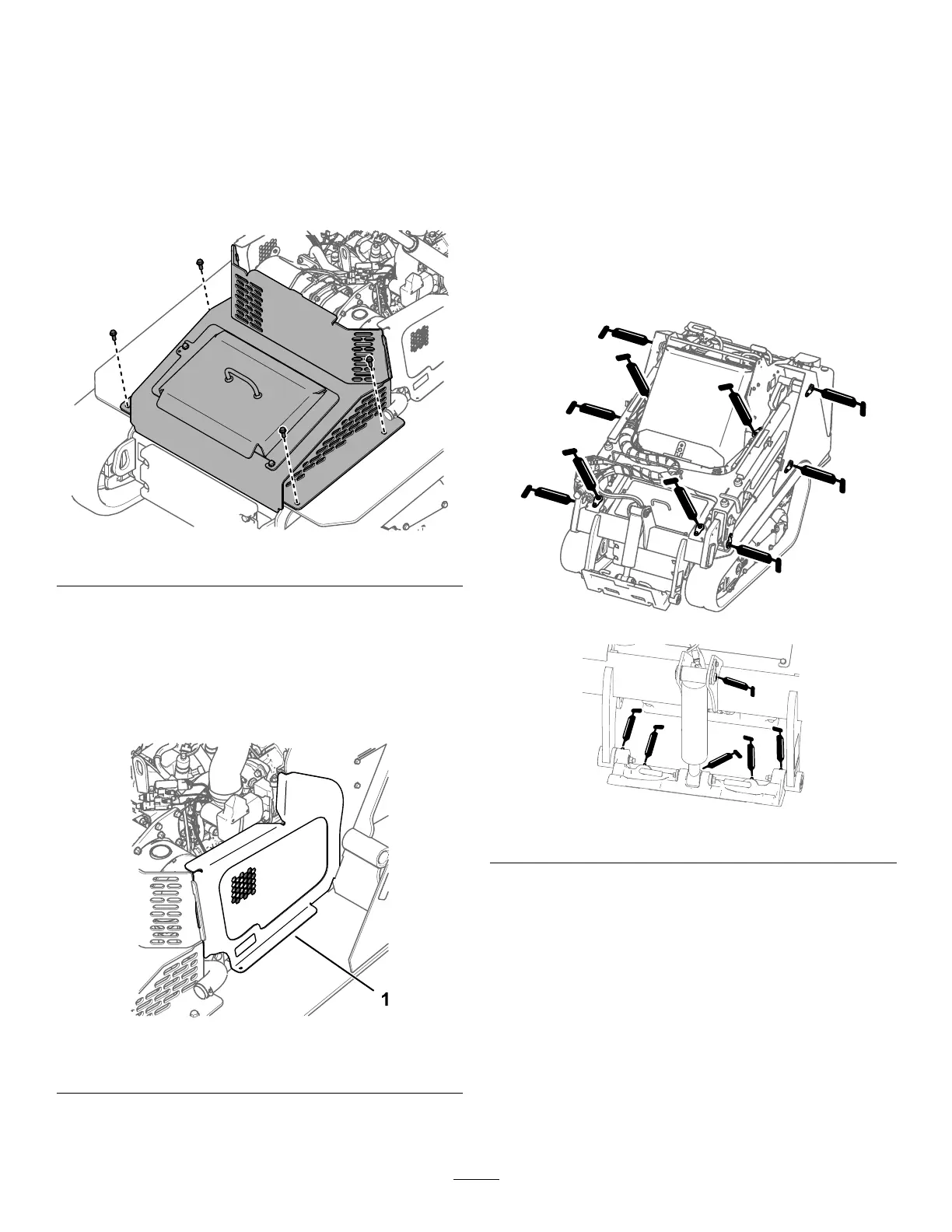

Figure65
4.Removethecoverassembly.
RemovingtheSideScreens
1.Openthehood.
2.Slidethescreenoutofthefrontandrearslots.
g363164
Figure66
1.Sidescreen
Lubrication
GreasingtheMachine
ServiceInterval:Beforeeachuseordaily(Grease
immediatelyaftereverywashing.)
GreaseType:General-purposegrease.
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowertheloaderarms.
2.Shutofftheengineandremovethekey.
3.Cleanthegreasettingswitharag.
g359308
Figure67
4.Connectagreaseguntoeachtting.
5.Pumpgreaseintothettingsuntilgreasebegins
tooozeoutofthebearings(approximately3
pumps).
6.Wipeupanyexcessgrease.
45
