Toro TX 1300 - Removing Machine Covers; Removing the Rear Cover; Removing the Bottom Plate; Removing the Front Cover

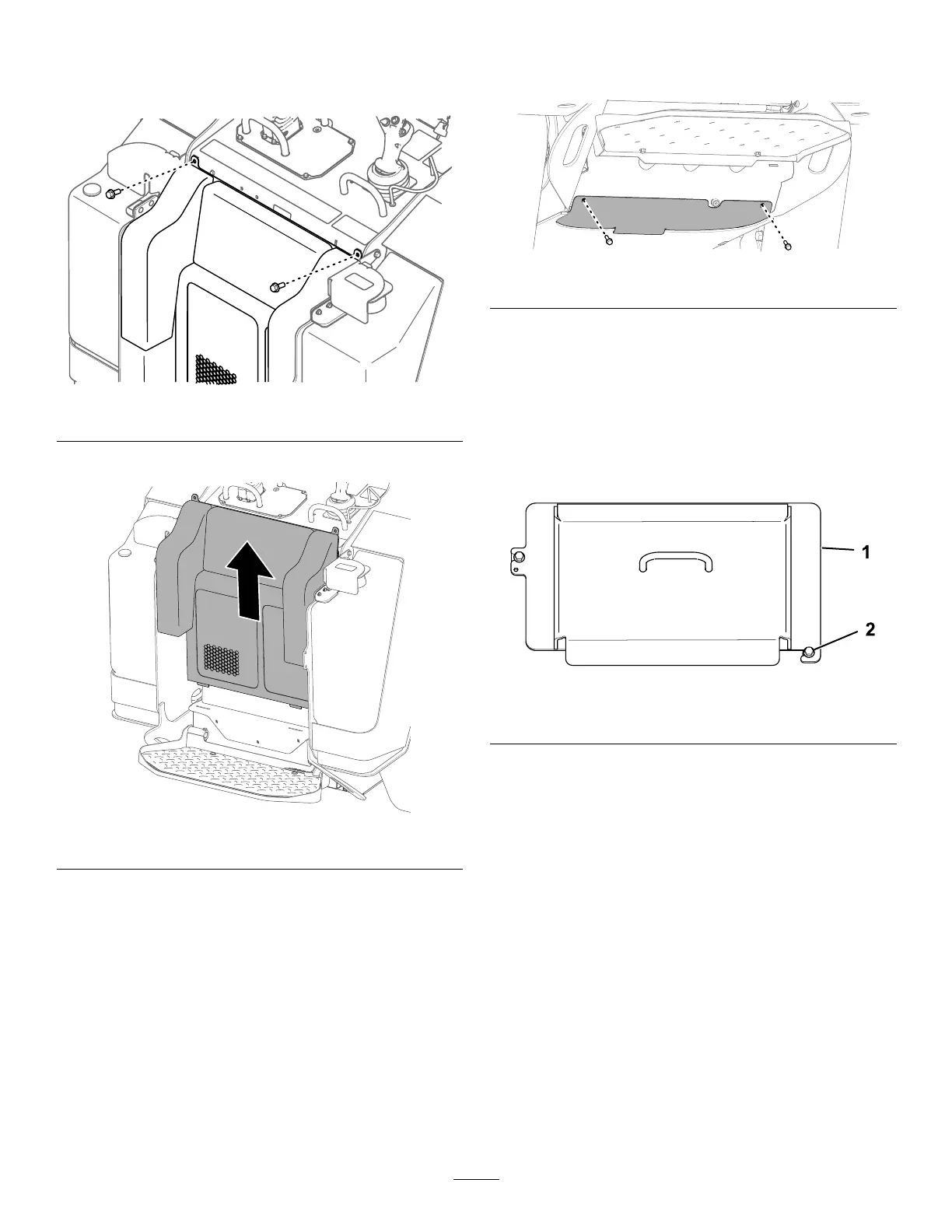

RemovingtheRearCover
1.Removethe2boltssecuringthetopoftherear
cover.
g359278
Figure61
2.Liftthecoveroutoftheslotsinradiatorbracket.
g359279
Figure62
RemovingtheBottomPlate
1.Removethe2boltssecuringthebottomplate.
g359291
Figure63
2.Removethebottomplate.
RemovingtheFrontCover
1.Raisetheloaderarmsandsecurethemwiththe
cylinderlocks.
2.Loosenthe2boltssecuringthefrontcoverto
themachine.
g359302
Figure64
1.Frontcover
2.Bolt(2)
3.Slidethecoveroffthemachine.
4.Wheninstallingthecover,torquetheboltsto41
N∙m(30ft-lb).
44
