Toro TX 1300 - Lifting the Machine

LiftingtheMachine
Removeanyattachmentsandliftthemachineusing
the4liftpoints.
Donotexceeda30-degreeanglewhenliftingthe
machine;usetheminimumchainlengthsprovided
below.

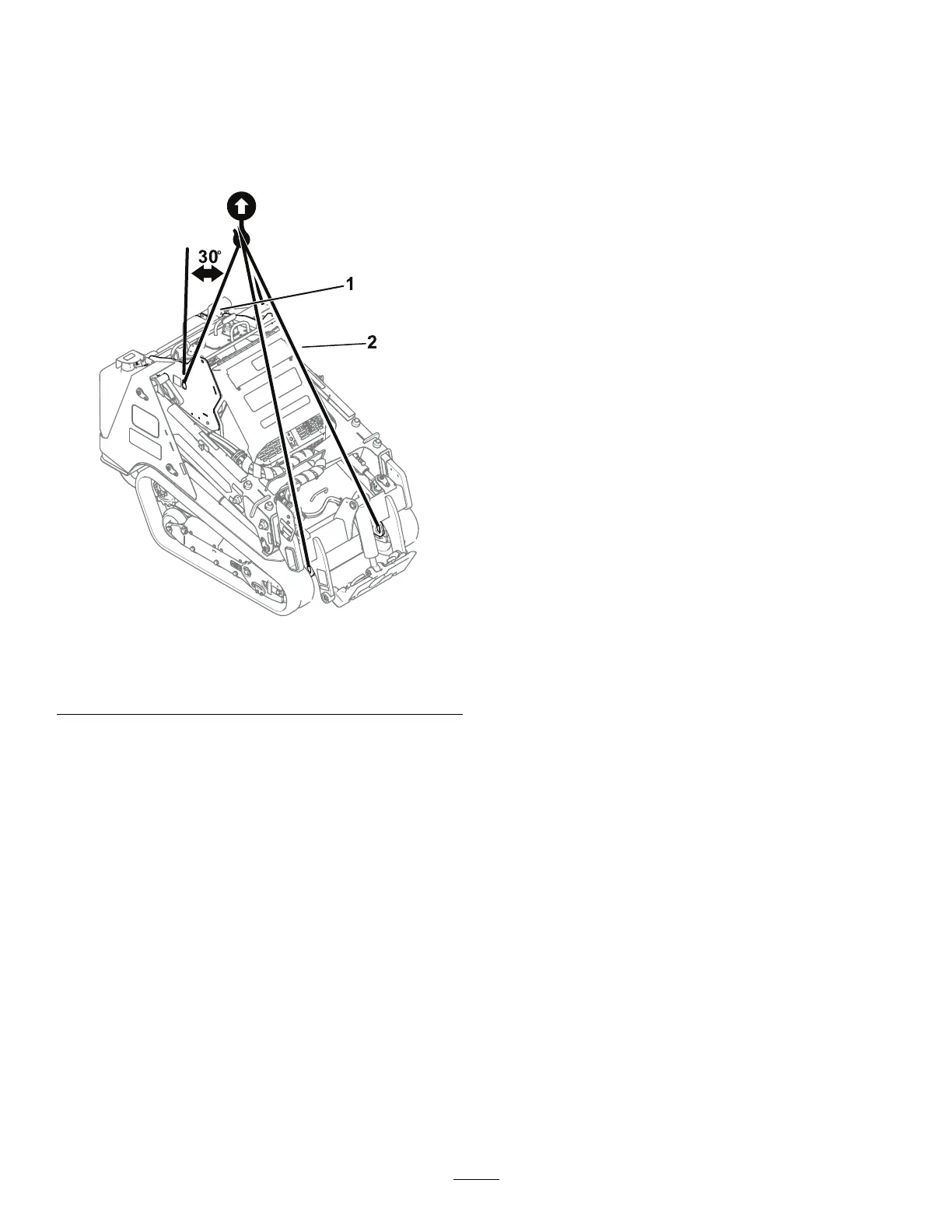

g371939
Figure56
1.Chainlengthforrearliftpoint(2)—143.0cm(56.3inches)
2.Chainlengthforfrontliftpoint(2)—223.2cm(87.9inches)
39
