EngineMaintenance

ServicingtheAirFilter

ServiceInterval:Every100hoursReplacethe

air-lterelementsoonerifitdirtyor

damaged.

Note:Servicetheairltermorefrequently(everyfew

hours)ifoperatingconditionsareextremelydustyor

sandy.

CheckingtheAirFilter

1.Raisethecargoboxandsecureitwiththeprop

rod;refertoRaisingtheCargoBox(page18).

2.Checktheair-lterbodyfordamagewhichcould

possiblycauseanairleak(Figure35).

Note:Ensurethattheair-ltercoverissealing

aroundtheair-lterhousing.

Note:Replaceadamagedair-ltercoveror

housing.

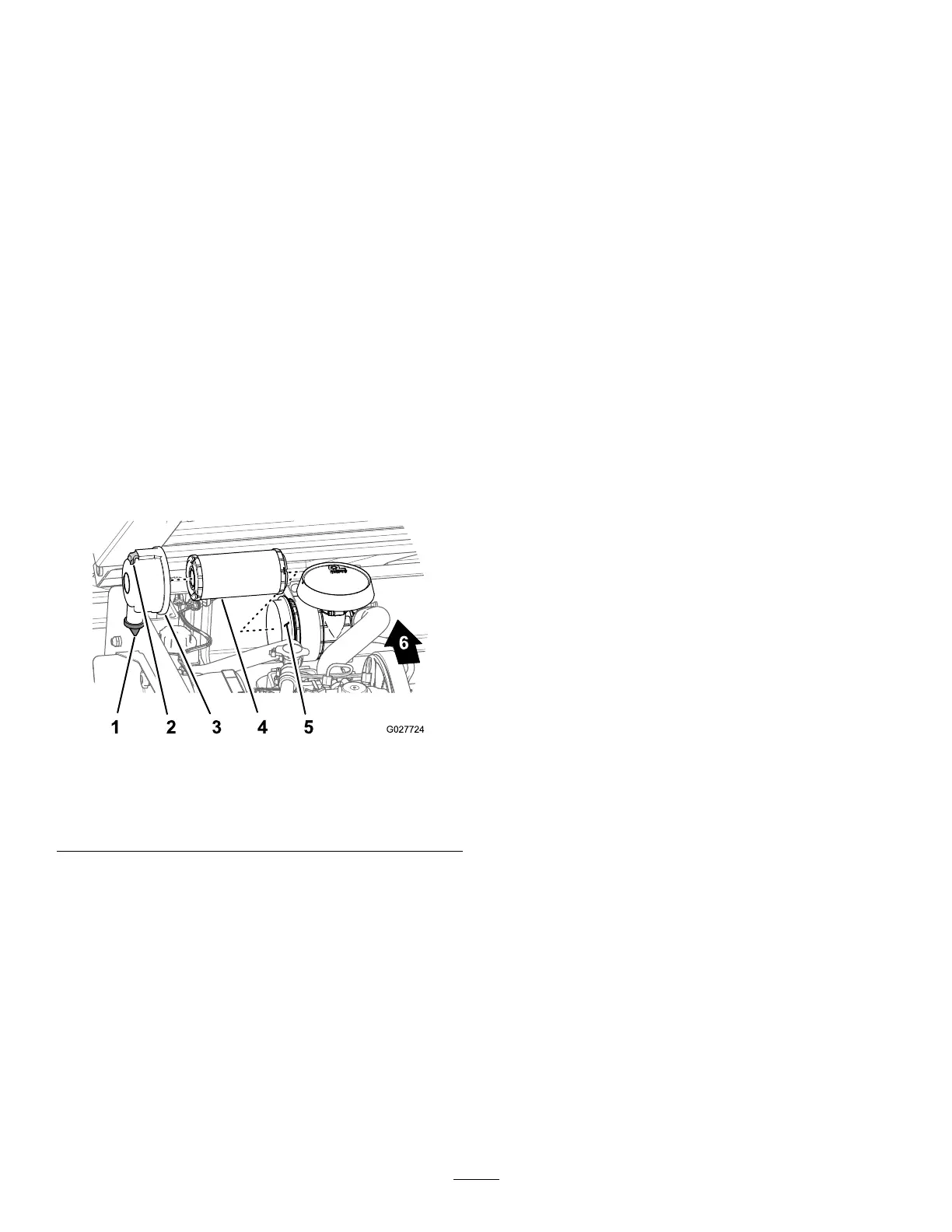

g027724

Figure35

1.Dirt-ejectionport

4.Air-lterelement

2.Latch

5.Air-lterhousing

3.Air-ltercover6.Backofthemachine

3.Pullthelatchoutwardandrotatetheair-lter

covercounterclockwise(Figure35).

4.Removethecoverfromtheair-lterbody.

5.Gentlyslidetheair-lterelementoutofthe

air-lterhousing(Figure35)toreducethe

amountofdustdislodged.

Note:Avoidknockingthelteragainstthe

air-lterhousing.

6.Inspecttheair-lterelement.

•Iftheair-lterelementisclean,installthe

lterelement,refertoInstallingtheAirFilter

(page35).

•Iftheair-lterelementisdamaged,replace

thelterelement;refertoReplacingtheAir

Filter(page35).
