Toro Workman MDX-D - Controls; Accelerator Pedal; Brake Pedal; Parking-Brake Lever

Controls

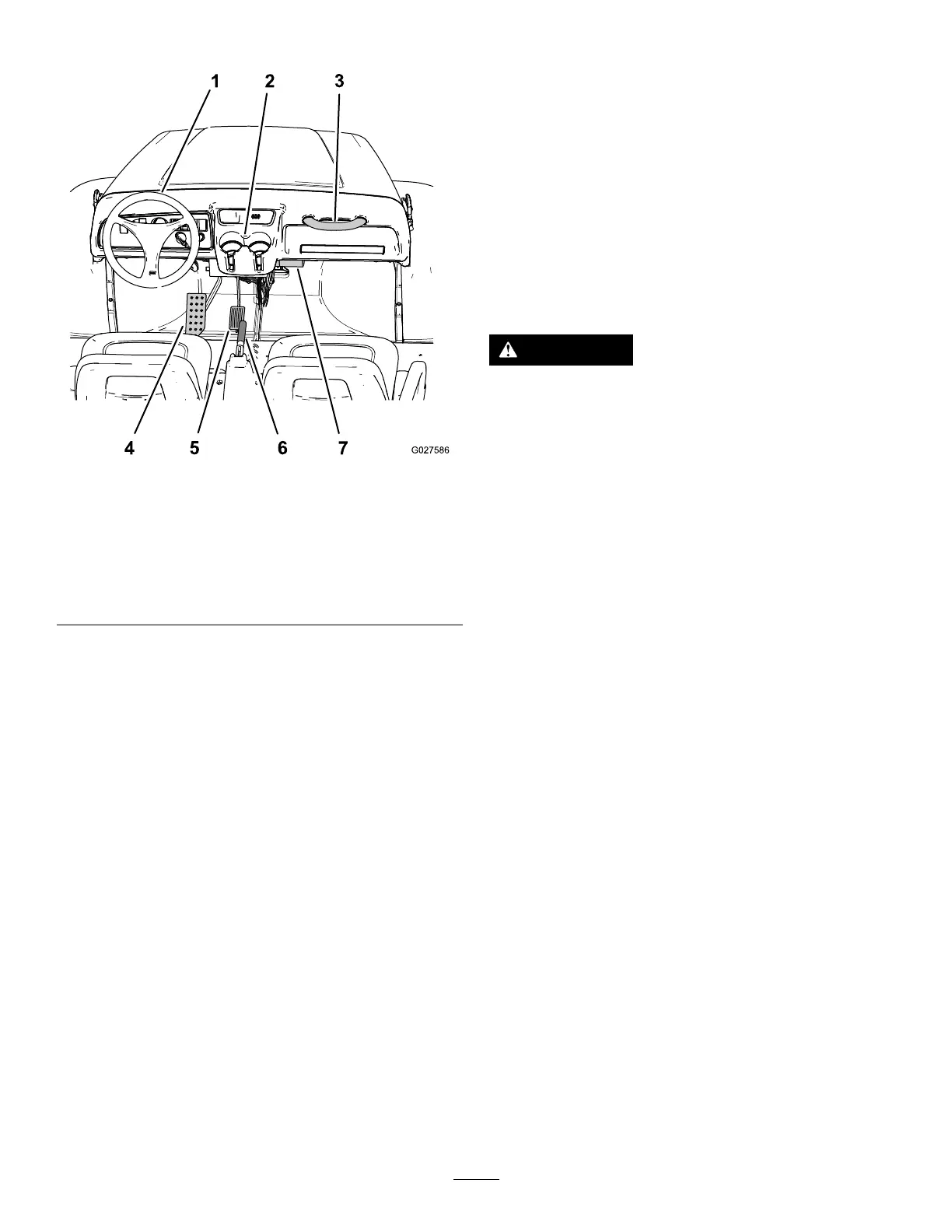

g027586
Figure7
1.Steeringwheel
5.Acceleratorpedal
2.Cupholder
6.Parking-brakehandle
(centerconsole)
3.Passengerhandhold
7.Operator'sManualstorage
tube
4.Brakepedal
AcceleratorPedal
Usetheacceleratorpedal(Figure7)tovaryground
speedofthemachine.Pressingdowntheaccelerator
pedalstartstheengine.Pressingthepedalfarther
increasesgroundspeed.Releasingthepedalslows
themachine,andtheengineshutsoff.
Note:Themaximumforwardspeedis26km/h
(16mph).
BrakePedal
Usethebrakepedaltostoporslowthemachine
(Figure7).
CAUTION
Operatingamachinewithwornorincorrectly
adjustedbrakescanmayresultinpersonal
injury.
Ifbrakepedaltravelstowithin25mm(1inch)
ofthemachineoorboard,adjustorrepair
thebrakes.
Parking-BrakeLever
Theparking-brakeleverislocatedbetweentheseats
(Figure6andFigure7).Wheneveryoushutoffthe
engine,engagetheparkingbraketopreventthe
machinefromaccidentallymoving.Toengagethe
parkingbrake,pulluptheparking-brakelever.T o
disengagetheparkingbrake,pushtheleverdown.If
youparkthemachineonasteepgrade,engagethe
parkingbrake.
